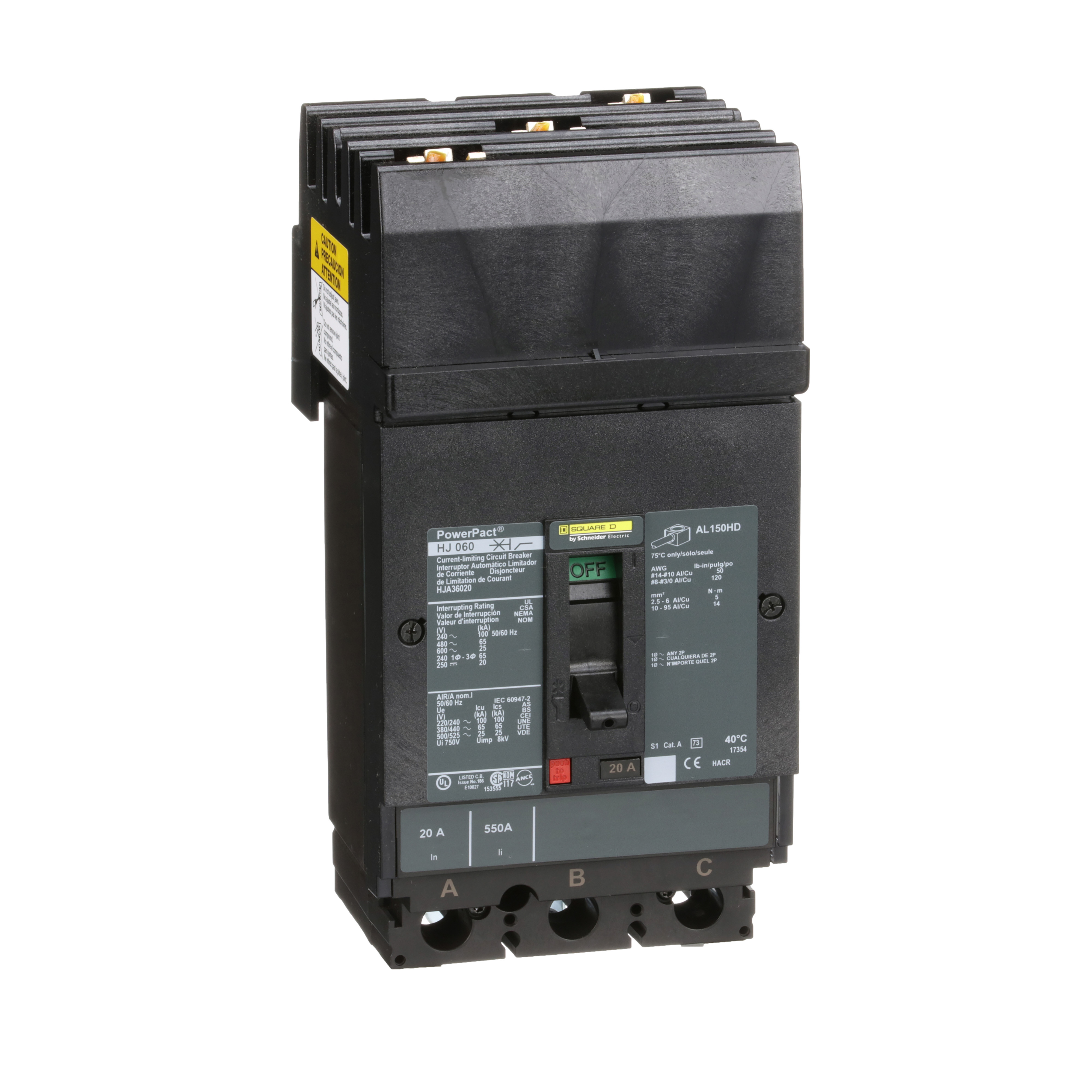

Square D™ PowerPact™ HJA36020 Molded Case Circuit Breaker, 600 VAC/250 VDC, 20 A, 20/25/65/100 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
368542
MFG #: HJA36020
Square D™
1709.68000
/ ea
- Alternate Catalog Number: HJA36020
- Application: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: HJA36020
- Connection: I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC
- Connection Type: I-Line® Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 6.4 in H x 4.12 in W x 4.36 in D
- EU RoHS Indicator: Y
- Frame: H
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 777.75
- Gross Volume per Pack Metric: 12744.99
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.0247 lb
- Gross Weight per Pack Metric: 2.45
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 15.4940 in
- Height [Metric]: 15.4940 cm
- Item Group: 01117
- Length: 38.1000 in
- Length [Metric]: 38.1000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423397&lang=en-us
- Mounting Type: Plug-On
- Operating Temperature: -13 to 158F (-25 to 70C) °C
- Phase: 3 pH
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED - IEC RATED - CCC
- Sub Brand: POWERPACT
- Substitute Product Catalog Number: S29386
- Temperature Rating: -13 to 158 °F
- Trip Range: 350 to 750 A
- Type: Type HJA
- UNSPSC: 39121601
- UPC 11: 78590160094
- UPC 12: 785901600947
- Warranty Description: Contractual Warranty:18 months
- Width: 21.5900 in
- Width [Metric]: 21.5900 cm
- Wire Size: 14 to 3/0 AWG
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 20 A
- Interrupt Rating: 25/20 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC/250 VDC VAC//VDC
- Number Of Poles: 3
Square D HJA36020 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 20A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,20A,3,50/60Hz,600 Vac/250 Vdc,H-Frame,Hold 350A - Trip 750A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8108631360Den&ext=webp(360 Degree View URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- 3D Rendering URL - SEproductListV2.html?p=HJA36020(3D Rendering URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Compliance Cert URL - Square_D_HJA36020_Compliance_Certificate.pdf(Compliance Cert URL)
- Tech Bulletin URL - 11003_VRP57W264AQSK31L.pdf(Tech Bulletin URL)
- Spec Sheet URL - 11003_43KP09XZUEFJ2H8W.pdf(Spec Sheet URL)
- Service Manual URL - 11003_T6POCH3LUD9I1KN0.pdf(Service Manual URL)
- Tech Bulletin URL - 11003_9UXPLAQ71E6F2BGM.pdf(Tech Bulletin URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HJA36020_2D+Bottom+View.dxf(Computer~Aided [CAD|BIM] Model URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- User Manual URL - 11003_KMJFTUEYA5HS02OZ.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/tmiPbq_-Hk0(Video)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=HJA36020_2D+Bottom+View.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_OSKYQIE8M3LP79G2.zip(Tech Drawing URL)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Video - https://youtube.com/embed/65pcjiB4F1U(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line® connection (On end) - lugs (Off end) ABC |
| 14 to 3/0 AWG copper aluminum |
