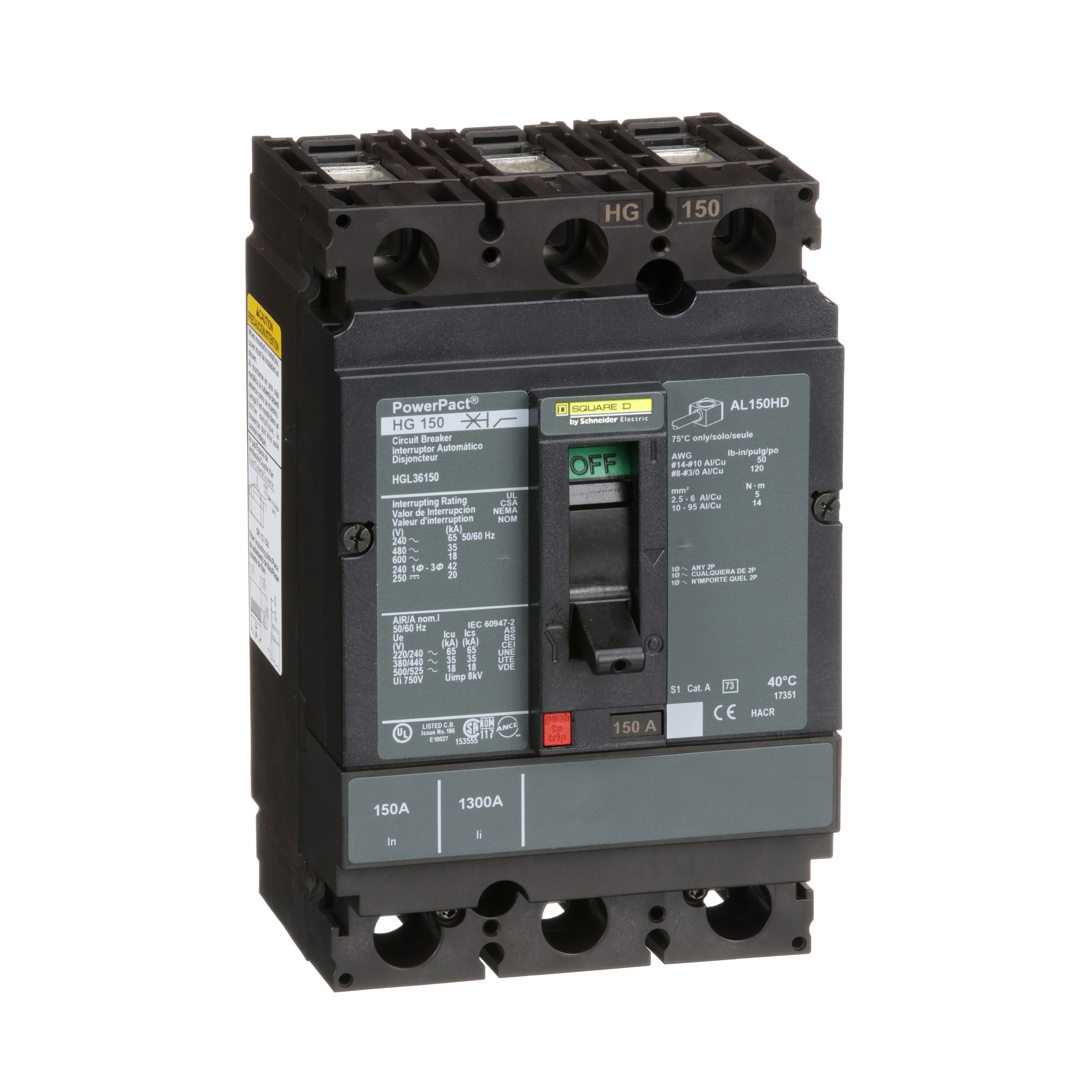

Square D™ PowerPact™ HGL36150 Molded Case Circuit Breaker, 600 VAC/250 VDC, 150 A, 18/20/35/65 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
263615
MFG #: HGL36150
Square D™
3120.84000
/ ea
- Alternate Catalog Number: HGL36150
- Application: DISTRIBUTION
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: HGL36150
- Connection: LINE: LUG - LOAD: LUG
- Connection Type: Line/Load Lug
- Country of Origin: US
- Currency: USD
- Dimensions: 86 mm L x 104 mm W x 163 mm H
- EU RoHS Indicator: Y
- Frame: H
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 366.97
- Gross Volume per Pack Metric: 6013.47
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 4.1000 lb
- Gross Weight per Pack Metric: 1.86
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 18.7960 in
- Height [Metric]: 18.7960 cm
- Item Group: 01115
- Length: 22.0980 in
- Length [Metric]: 22.0980 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422901&lang=en-us
- Mounting Type: Unit
- Number Of Poles: 3
- Operating Temperature: -13 to 158F (-25 to 70C) °C
- Phase: 3 pH
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED - IEC RATED - CCC
- Sub Brand: POWERPACT
- Substitute Product Catalog Number: S29371
- Temperature Rating: -13 to 158 °F
- Trip Range: 900 to 1700 A
- Type: Type HGL
- UNSPSC: 39121601
- UPC 11: 78590143392
- UPC 12: 785901433927
- Warranty Description: Contractual Warranty:18 months
- Width: 14.4780 in
- Width [Metric]: 14.4780 cm
- Wire Size: 14 to 3/0 AWG
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 150 A
- Interrupt Rating: 18/20 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC/250 VDC VAC//VDC
Square D HGL36150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 150A,-13F and 158F (-25 C and +70 C),104 mm,150A,163 mm,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,86 mm,H-Frame,Hold 900A - Trip 1700A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
- 360 Degree View URL - index.html?pid=11003&id=8047594360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HGL36150(3D Rendering URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog 1 URL - Square_D_HDL26030_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Compliance Cert URL - Square_D_HGL36150_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HGL36150_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_FXH7MA1QBV6YLZGN.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_HDL26030_Installation_Instructions.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_ORK5DSXUIP0638NG.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_6GPZQULHKR9SYWXT.pdf(Tech Bulletin URL)
- Video - https://youtube.com/embed/65pcjiB4F1U(Video)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/1PjFQgO_-Ik(Video)
- Tech Drawing URL - 11003_ZC7FA9LOYBE5MS4D.zip(Tech Drawing URL)
- Applications
- Features
| Distribution |
| UNIT MOUNT |
| 14 to 3/0 AWG copper aluminum |
