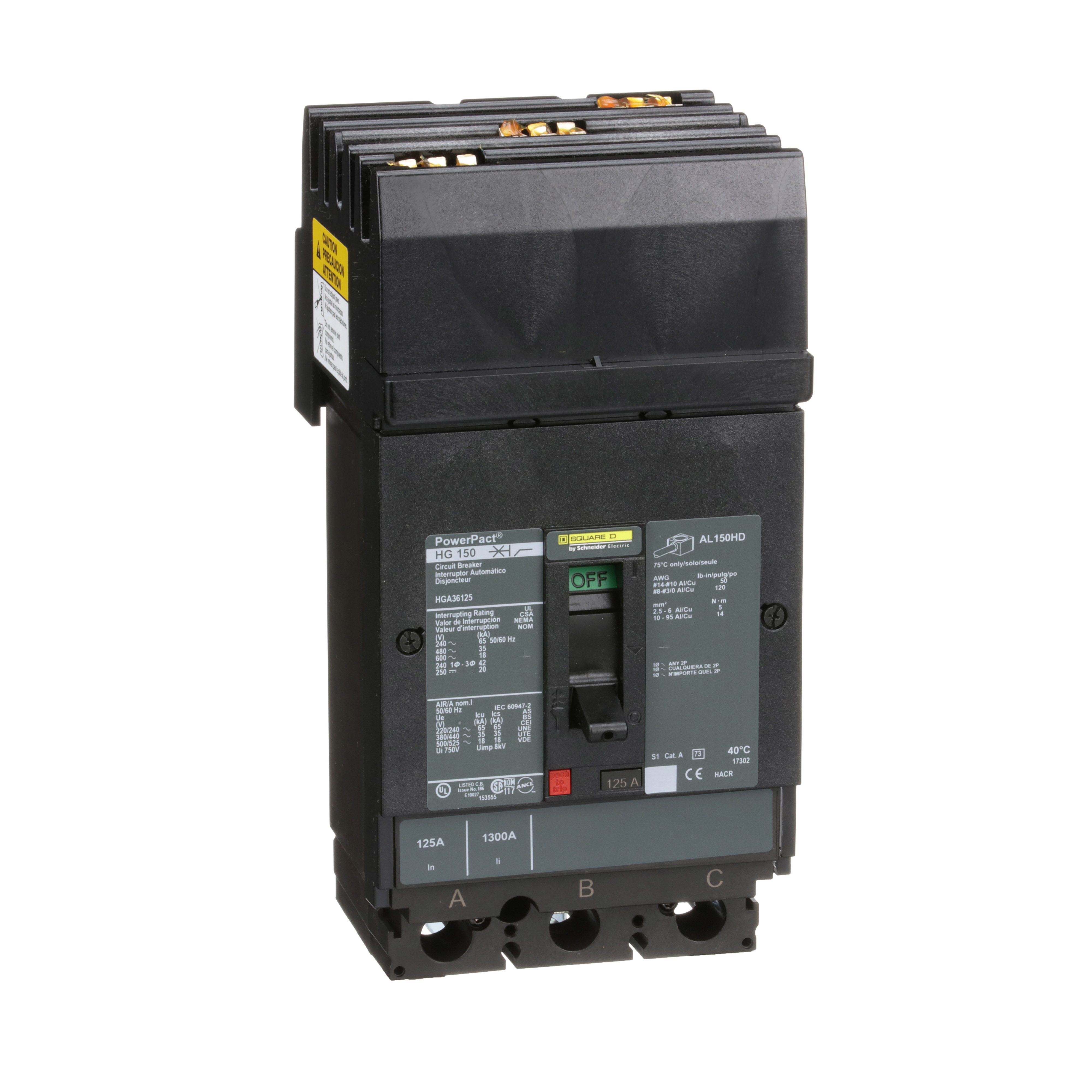

Square D™ PowerPact™ HGA36125 Molded Case Circuit Breaker, 600 VAC/250 VDC, 125 A, 18/20/35/65 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
304837
MFG #: HGA36125
Square D™
3249.94000
/ ea
- Alternate Catalog Number: HGA36125
- Application: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: HGA36125
- Connection: I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC
- Connection Type: I-Line® Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 6.4 in H x 4.12 in W x 4.36 in D
- EU RoHS Indicator: Y
- Frame: H
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 747.24
- Gross Volume per Pack Metric: 12245.02
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.0268 lb
- Gross Weight per Pack Metric: 2.46
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 14.9860 in
- Height [Metric]: 15.4940 cm
- Item Group: 01117
- Length: 37.8460 in
- Length [Metric]: 38.1000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422505&lang=en-us
- Mounting Type: Plug-On
- Operating Temperature: -13 to 158F (-25 to 70C) °C
- Phase: 3 pH
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED - IEC RATED - CCC
- Sub Brand: POWERPACT
- Substitute Product Catalog Number: S29371
- Temperature Rating: -13 to 158 °F
- Trip Range: 900 to 1700 A
- Type: Type HGA
- UNSPSC: 39121601
- UPC 11: 78590193923
- UPC 12: 785901939238
- Warranty Description: Contractual Warranty:18 months
- Width: 21.5900 in
- Width [Metric]: 21.5900 cm
- Wire Size: 14 to 3/0 AWG
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 125 A
- Interrupt Rating: 18/20 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC/250 VDC VAC//VDC
- Number Of Poles: 3
Square D HGA36125 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 125A,-13F and 158F (-25 C and +70 C),125A,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,H-Frame,Hold 900A - Trip 1700A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=8096029360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HGA36125(3D Rendering URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Compliance Cert URL - Square_D_HGA36125_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HGA36125_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions URL - Square_D_HGA36020_Installation_Instructions.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Tech Drawing URL - 11003_DRPTKY92ZCXV84ON.zip(Tech Drawing URL)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/tmiPbq_-Hk0(Video)
- Spec Sheet URL - 11003_RK50GU8CIS276MBY.pdf(Spec Sheet URL)
- Video - https://youtube.com/embed/65pcjiB4F1U(Video)
- Tech Bulletin URL - 11003_VRP57W264AQSK31L.pdf(Tech Bulletin URL)
- Spec Sheet 1 URL - Square_D_HGA36125_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line® connection (On end) - lugs (Off end) ABC |
| 14 to 3/0 AWG aluminum copper wire |
| 20 kA at 250 VDC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
| 900 A hold, 1700 A trip |
| Standard |
