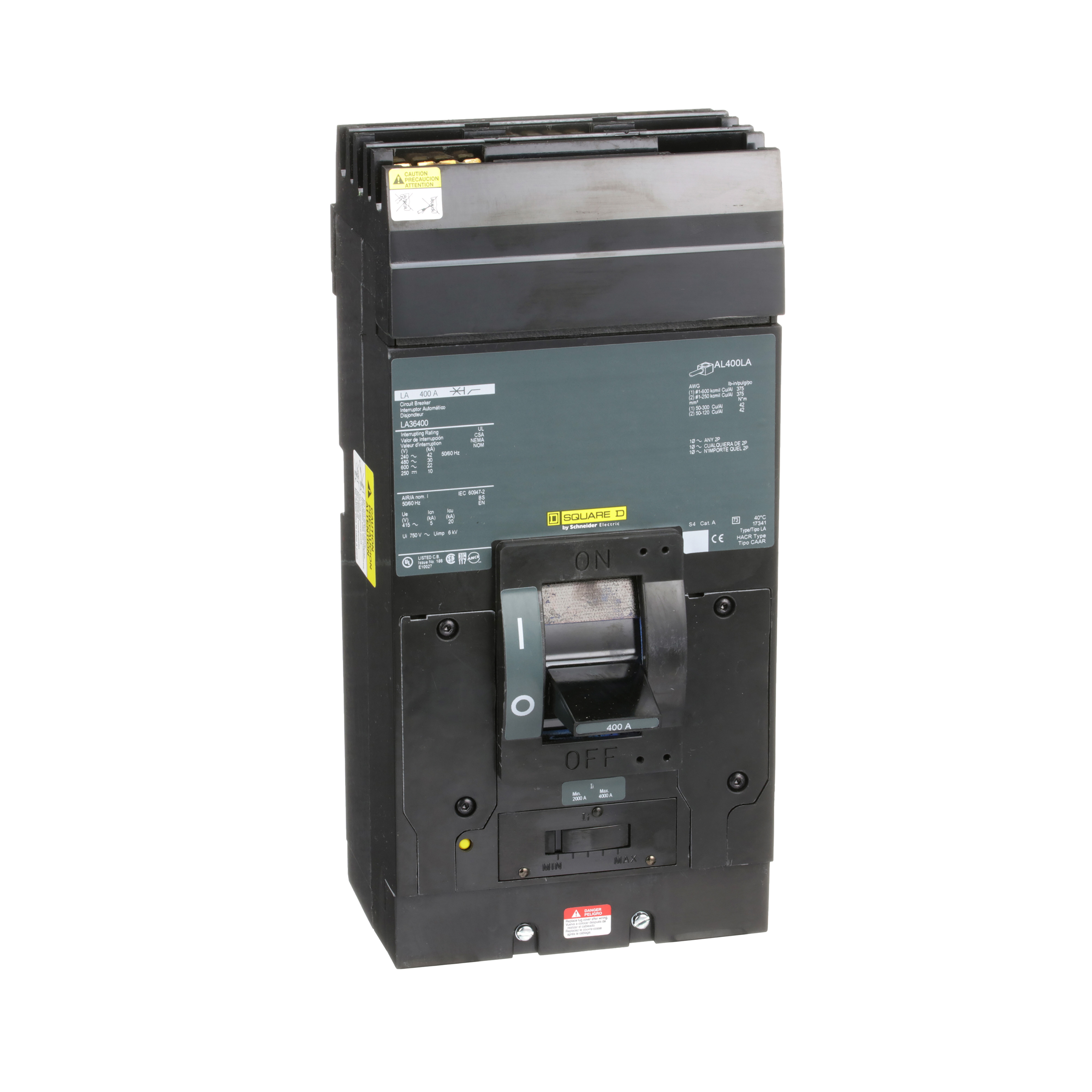

Square D™ I-Line™ LA36400 Type LA Standard Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 25 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
33313
MFG #: LA36400
Square D™
6002.02000
/ ea
- Alternate Catalog Number: LA36400
- Application: DESIGNED TO TRIP AT HIGHER MAGNETIC TRIP LEVELS (1820 TIMES)
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: LA36400
- Connection: AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-I-LINE CONNECTION LINE
- Connection Type: Lug
- Country of Origin: IE
- Currency: USD
- Dimensions: 11 in H x 6 in W x 5.8 in D
- EU RoHS Indicator: Y
- Frame: L
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 1842.75
- Gross Volume per Pack Metric: 30197.14
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.0816 lb
- Gross Weight per Pack Metric: 8.32
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 22.8600 in
- Height [Metric]: 22.8600 cm
- Item Group: 01040
- Length: 44.4500 in
- Length [Metric]: 44.4500 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=427405&lang=en-us
- Mounting Type: Plug-On
- Phase: 3 pH
- Returnable: Y
- Standard: UL LISTED-CSA
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedECCN EAR99
- Substitute Product Catalog Number: AL400LA
- Temperature Rating: 104 °F
- Trip Range: 2000 to 4000 A
- Type: Type LA Standard
- UNSPSC: 39121601
- UPC 11: 78590142632
- UPC 12: 785901426325
- Warranty Description: Contractual Warranty:18 months
- Width: 29.7180 in
- Width [Metric]: 29.7180 cm
- Wire Size: 1 AWG to 600 kcmil, (2) 250 kcmil
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 400 A
- Interrupt Rating: 25 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC/250 VDC VAC//VDC
- Number Of Poles: 3
Square D LA36400 MOLDED CASE CIRCUIT BREAKER 600V 400A,20004000 A,400 A,50/60 Hz,600 V AC, 250 V DC,L,Molded Case Circuit Breaker,Thermal Magnetic,designed to trip at higher magnetic trip levels (1820 times)
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8046080360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=LA36400(3D Rendering URL)
- Brochure URL - cf841e750f4e614d86b290f2c610c874ffa2d727.pdf(Brochure URL)
- Catalog URL - Square_D_LA36225_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - fbde2441dd841ac3f68136256cbb33fb7c5101b9.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_I6V2BROH0S7GFUZM.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=48049-034-04(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Bulletin URL - 11003_E31DYQAR924IXNFJ.pdf(Tech Bulletin URL)
- User Manual URL - 11003_IUWM5CQKV63TGP8O.pdf(User Manual URL)
- Tech Drawing URL - 11003_T71GVIMCHPO9NKAZ.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_UJ5NOAZ0EV83TSRK.pdf(Tech Drawing URL)
- Tech Bulletin URL - 11003_3B5N0SQZMCV2YPGK.pdf(Tech Bulletin URL)
- User Manual URL - 11003_I2FG5HLETCJ8W1NO.pdf(User Manual URL)
- Spec Sheet URL - 11003_8FUQB14LRAH7JXPT.pdf(Spec Sheet URL)
- Applications
- Features
| DESIGNED TO TRIP AT HIGHER MAGNETIC TRIP LEVELS (1820 TIMES) |
| I-LINE |
| Thermal-magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection |
| Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide overcurrent protection |
| 400 A frame |
