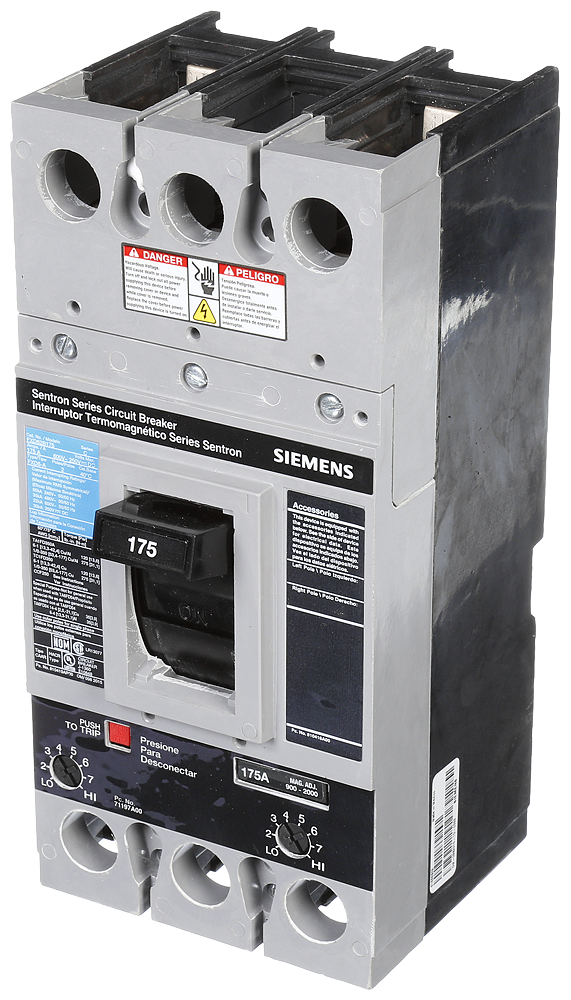

Sentron™ FXD62B175 Molded Case Circuit Breaker, 600 VAC, 175 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
480445
MFG #: FXD62B175
Siemens
4898.87000
/ ea
- Actuator: Varying
- Alternate Catalog Number: US2:FXD62B175
- Application: Standard 40C Breaker
- ARRA Compliant: C
- Auxiliary Contacts: N/A
- Buy American Compliant: C
- Catalog Number: FXD62B175
- Connection: N/A
- Connection Type: Line/Load Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 7 in L x 5.4 in W x 11.3 in H
- Enclosure: Varying
- Environmental Conditions: N/A
- EU RoHS Indicator: C
- Frame: FD
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 462.00
- Gross Volume UOM: in
- Gross Weight Per Pack: 7.3000 lb
- Gross Weight per Pack Metric: 3.31
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 7.0000 in
- Height [Metric]: 17.7800 cm
- Length: 11.3000 in
- Length [Metric]: 28.7020 cm
- Load Rating: N/A
- Material: N/A
- Mounting Type: Freestanding
- Number Of Poles: 2
- Operating Temperature: 40 °C
- Phase: 1 ph
- Returnable: N
- Standard: HACR
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489
- Sub Brand: SENTRON
- Temperature Rating: 40 °C
- Trip Range: 900 to 2000 A
- Type: Type FXD6 Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364321115
- UPC 12: 783643211155
- Width: 5.4000 in
- Width [Metric]: 13.7160 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 175 A
- Interrupt Rating: 22 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
- Brochure URL - SIE_IM_FD_Information-Instruction-Guide.pdf(Brochure URL)
- Catalog 1 URL - Siemens_FXD62B200_Catalog_1.pdf(Catalog 1 URL)
- Catalog 2 URL - Siemens_FXD62B200_Catalog_1.pdf(Catalog 2 URL)
- Catalog URL - Siemens_HHED63B015A_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_FD-2Pole-3Pole-Breaker-Frame.DWG(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v2-SIE_IS_FD-Frame_Installation.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:FXD62B175&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| Standard 40C Breaker |
| N/A |
| Molded case circuit breakers are used in motor circuits as a disconnecting means and for short-circuit protection |
| They should be used in conjunction with motor running, overcurrent protection devices, and should permit the motor to start without nuisance tripping from motor inrush current |
| The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current |
| Varying actuator |
| Varying enclosure |
| Blue labe |
