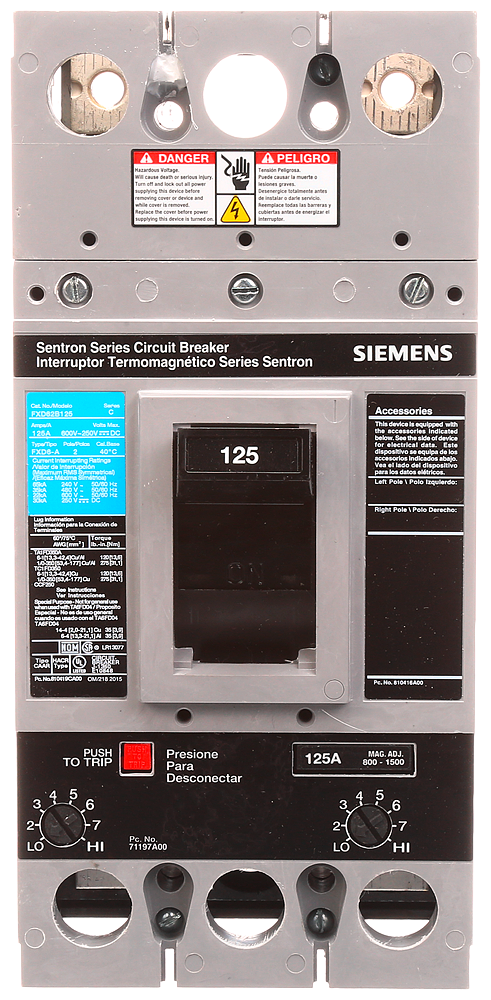

Sentron™ FXD62B125 Molded Case Circuit Breaker, 600 VAC, 125 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Molded Case Circuit Breakers
279034 MFG #: FXD62B125
Siemens
4898.87000 / ea
10991_CXH2PLV6TEJ9530B
  • Alternate Catalog Number: US2:FXD62B125
  • Application: Standard 40C Breaker
  • ARRA Compliant: C
  • Auxiliary Contacts: N/A
  • Buy American Compliant: C
  • Catalog Number: FXD62B125
  • Connection: N/A
  • Connection Type: Bolt-On
  • Country of Origin: MX
  • Currency: USD
  • Enclosure: Varying
  • EU RoHS Indicator: C
  • Frequency Rating: 50/60 Hz
  • Gross Volume Per Pack: 983.25
  • Gross Volume UOM: in
  • Gross Weight Per Pack: 7.0000 lb
  • Gross Weight per Pack Metric: 3.18
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 8536200020
  • Height [Metric]: 13.8430 cm
  • Length [Metric]: 16.5100 cm
  • Load Rating: N/A
  • Material: N/A
  • Number Of Poles: 2
  • Phase: 1 ph
  • Returnable: N
  • Standard: HACR
  • Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489
  • Sub Brand: SENTRON
  • Temperature Rating: 40 °C
  • Type: Type FXD6 Low Voltage
  • UNSPSC: 39121601
  • UPC 11: 78364321113
  • UPC 12: 783643211131
  • Width [Metric]: 16.5100 cm
  • Stock Status: NONSTOCK
  • Brand: Siemens
  • Manufacturer: Siemens
  • Amperage Rating: 125 A
  • Trip Type: Thermal Magnetic
  • Voltage Rating: 600 VAC
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
