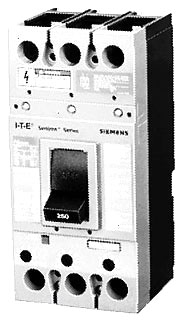

Sentron™ FD63B250L Molded Case Circuit Breaker, 600 VAC/500 VDC, 250 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
92821
MFG #: FD63B250L
Siemens
10093.86000
/ ea
- Alternate Catalog Number: US2:FD63B250L
- Application: Standard 40C Breaker
- ARRA Compliant: C
- Auxiliary Contacts: N/A
- Buy American Compliant: C
- Catalog Number: FD63B250L
- Connection Type: Line/Load Lug
- Country of Origin: MX
- Currency: USD
- Enclosure: Varying
- EU RoHS Indicator: C
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 425.27
- Gross Volume UOM: in
- Gross Weight Per Pack: 10.0000 lb
- Gross Weight per Pack Metric: 4.54
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height [Metric]: 17.7800 cm
- Length [Metric]: 27.9400 cm
- Load Rating: N/A
- Material: N/A
- Number Of Poles: 3
- Phase: 3 pH
- Returnable: N
- Standard: UL/HACR
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedHACR Rated
- Sub Brand: SENTRON
- Temperature Rating: 40 °C
- Type: Type FD6 Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364300535
- UPC 12: 783643005358
- Width [Metric]: 15.2400 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 250 A
- Trip Type: Thermal Magnetic
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
- Brochure URL - SIE_IM_FD_Information-Instruction-Guide.pdf(Brochure URL)
- Catalog URL - Siemens_HHED63B015A_Brochuer.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_FD-2Pole-3Pole-Breaker-Frame.DWG(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Owners Manual URL - SIE_IM_ED_Information-Instruction-Guide.pdf(Owners Manual URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:FD63B250L&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:FD63B250L&language=en(Spec Sheet URL)
- Spec Sheet URL - SIE_IS_FD-Frame_Installation.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- User Manual URL - SIE_IS_FD-Frame_Installation.pdf(User Manual URL)
- Applications
- Features
| Standard 40C Breaker |
| N/A |
| They should be used in conjunction with motor running, over-current-protection devices and should permit the motor to start without nuisance tripping from motor-inrush current |
| The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current |
| Blue labe |
