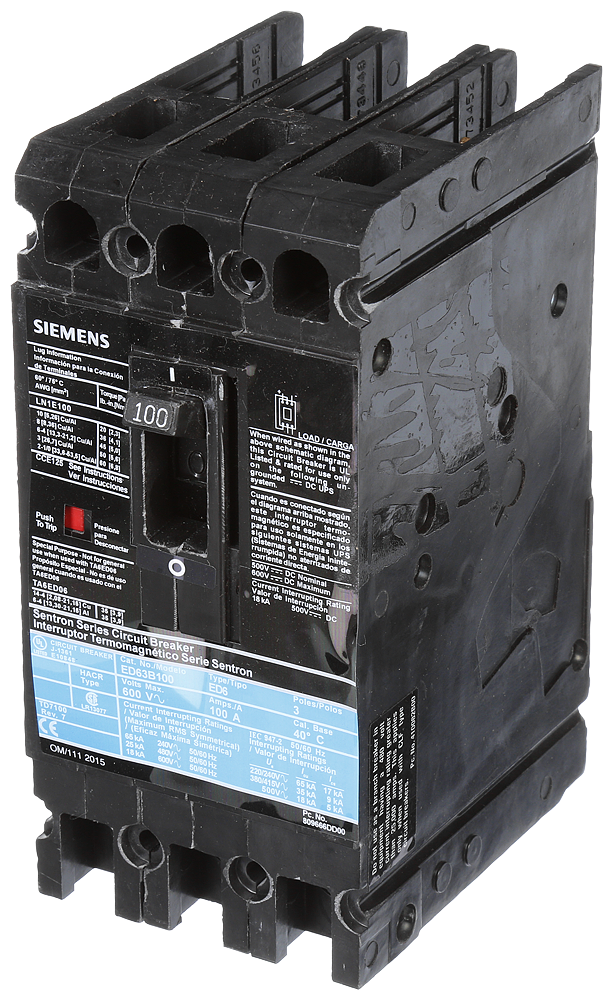

Sentron™ ED63B100 Molded Case Circuit Breaker, 600 VAC/250 VDC, 100 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
27675
MFG #: ED63B100
Siemens
2792.27000
/ ea
- Actuator: Varying
- Alternate Catalog Number: US2:ED63B100
- Application: Standard 40C Breaker
- ARRA Compliant: C
- Auxiliary Contacts: N/A
- Buy American Compliant: C
- Catalog Number: ED63B100
- Connection: N/A
- Connection Type: Load Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 4 in L x 6 in W x 7 in H
- Enclosure: Varying
- Environmental Conditions: N/A
- EU RoHS Indicator: C
- Frame: ED
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 375.59
- Gross Volume UOM: in
- Gross Weight Per Pack: 3.6800 lb
- Gross Weight per Pack Metric: 1.67
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 5.7500 in
- Height [Metric]: 14.6050 cm
- Length: 6.5000 in
- Length [Metric]: 16.5100 cm
- Load Rating: N/A
- Material: N/A
- Number Of Poles: 3
- Operating Temperature: 40 °C
- Phase: 3 pH
- Returnable: Y
- Standard: HACR
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489
- Sub Brand: SENTRON
- Temperature Rating: 40 °C
- Trip Range: N/A
- Type: Type ED6 Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364320978
- UPC 12: 783643209787
- Width: 4.6000 in
- Width [Metric]: 11.6840 cm
- Wire Size: 10 to 1/0 AWG
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 100 A
- Interrupt Rating: 18 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC/250 VDC VAC//VDC
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
- Catalog URL - Siemens_HHED63B015A_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - EDFDD1.dwg(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v1-sf-11-sect-07-045-058.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:ED63B100&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED63B100&language=en(Spec Sheet URL)
- Spec Sheet URL - index.aspx?view=MotivDetail&objkey=P_USLV_XX_02180(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- User Manual URL - SIE_IS_ED_ETI-MCS.pdf(User Manual URL)
- Applications
- Features
| Standard 40C Breaker |
| N/A |
| All ED frame circuit breakers may be reverse connected |
| 10 to 1/0 AWG copper aluminum wire range |
| Varying actuator |
| Varying enclosure |
| Blue label |
