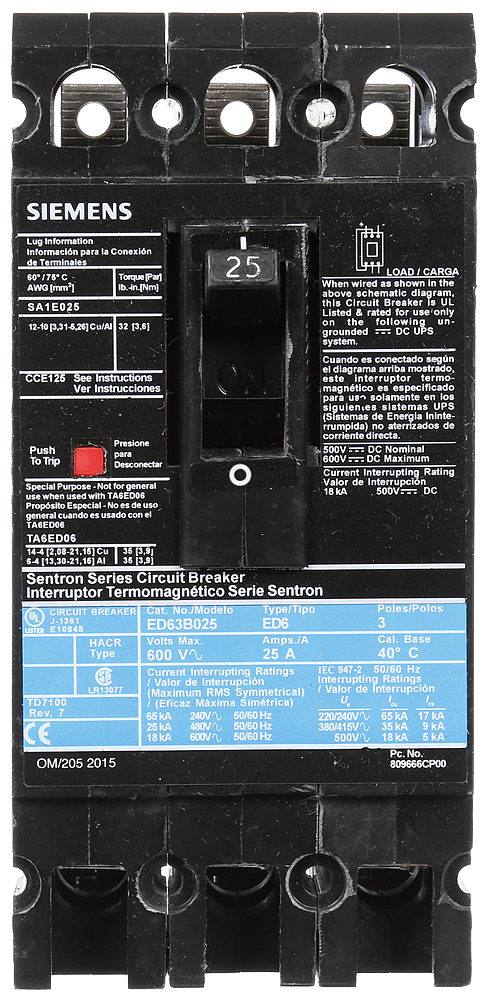

Sentron™ ED63B025 Type ED6 Molded Case Circuit Breaker With Load Lugs, 600 VAC/500 VDC, 25 A, 18 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
172022
MFG #: ED63B025
Siemens
2241.00000
/ ea
- Actuator: Varying
- Alternate Catalog Number: US2:ED63B025
- Application: Standard 40C Breaker
- ARRA Compliant: C
- Auxiliary Contacts: N/A
- Buy American Compliant: C
- Catalog Number: ED63B025
- Connection: N/A
- Connection Type: Line Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 4 in L x 6 in W x 7 in H
- Enclosure: Varying
- Environmental Conditions: N/A
- EU RoHS Indicator: C
- Frame: ED
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 513.59
- Gross Volume UOM: in
- Gross Weight Per Pack: 3.6650 lb
- Gross Weight per Pack Metric: 1.66
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 5.6500 in
- Height [Metric]: 14.3510 cm
- Length: 7.1000 in
- Length [Metric]: 18.0340 cm
- Load Rating: N/A
- Material: N/A
- Number Of Poles: 3
- Operating Temperature: 40 °C
- Phase: 3 pH
- Returnable: Y
- Standard: HACR
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantHACR Rated
- Sub Brand: SENTRON
- Temperature Rating: 40 °C
- Trip Range: N/A
- Type: Type ED6 Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364320968
- UPC 12: 783643209688
- Width: 5.0500 in
- Width [Metric]: 12.8270 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 25 A
- Interrupt Rating: 18 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC/250 VDC VAC//VDC
Sentron™ Molded Case Circuit Breaker, Type ED6, 600 VAC/500 VDC, 25 A, 50/60 Hz, 18 kA Interrupt, ED Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Line Lug, 40 deg C, 4 in L x 6 in W x 7 in H
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_ED-3Pole-Breaker-Frame.DWG(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v1-sf-11-sect-07-045-058.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:ED63B025&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED63B025&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| Standard 40C Breaker |
| N/A |
