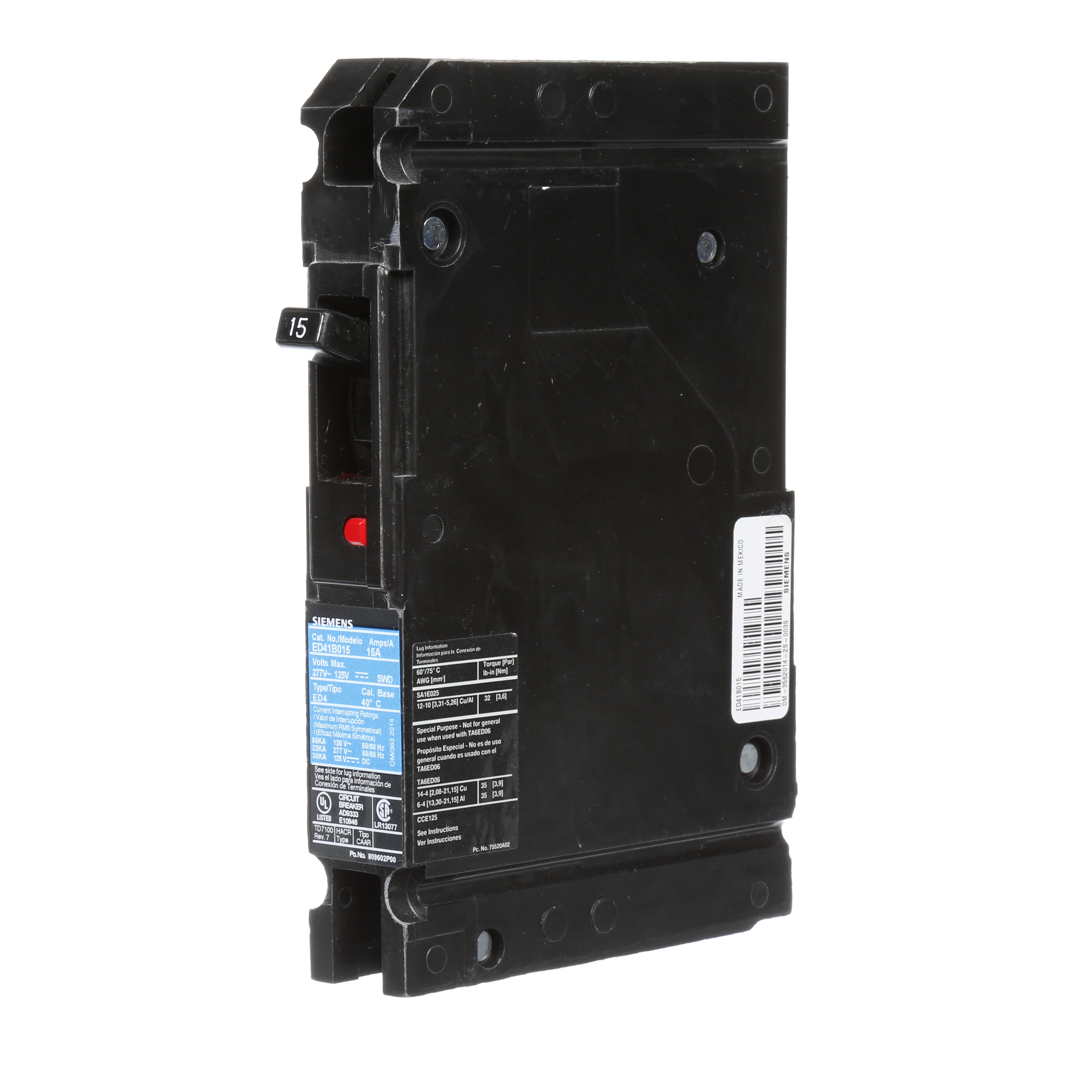

Sentron™ ED41B015L Molded Case Circuit Breaker, 277 VAC/125 VDC, 15 A, 22 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Molded Case Circuit Breakers
477603
MFG #: ED41B015L
Siemens
501.68000
/ ea
- Actuator: Varying
- Alternate Catalog Number: US2:ED41B015L
- Application: Standard 40C Breaker
- ARRA Compliant: C
- Auxiliary Contacts: N/A
- Buy American Compliant: C
- Catalog Number: ED41B015L
- Connection: Line/Load lugs installed
- Connection Type: Line/Load Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 6 in L x 1 in W x 5 in H
- Enclosure: Varying
- Environmental Conditions: N/A
- EU RoHS Indicator: C
- Frame: ED
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 28.35
- Gross Volume UOM: in
- Gross Weight Per Pack: 1.3000 lb
- Gross Weight per Pack Metric: 0.59
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 6.0000 in
- Height [Metric]: 15.2400 cm
- Length: 5.0000 in
- Length [Metric]: 12.7000 cm
- Load Rating: N/A
- Material: N/A
- Mounting Type: Panel
- Number Of Poles: 1
- Operating Temperature: 40 °C
- Phase: 1 ph
- Returnable: N
- Standard: HACR
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489
- Sub Brand: SENTRON
- Temperature Rating: 40 °C
- Trip Range: N/A
- Type: Type ED4 Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364331488
- UPC 12: 783643314887
- Width: 1.0000 in
- Width [Metric]: 2.5400 cm
- Wire Size: 14 to 10 AWG, 12 to 10 AWG
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 15 A
- Interrupt Rating: 22 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 277/120 VAC/125 VDC
Siemens ED41B015L SP 15A 277V CB
- Catalog 1 URL - Siemens_HHED63B015A_Catalog.pdf(Catalog 1 URL)
- Catalog URL - Siemens_HHED63B015A_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:ED41B015L&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED41B015L&language=en(Spec Sheet URL)
- Spec Sheet URL - SF-17-Sect-07-ALL-web.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- User Manual URL - SIE_IS_ED_ETI-MCS.pdf(User Manual URL)
- Applications
- Features
| Standard 40C Breaker |
| N/A |
| All ED frame circuit breakers may be reverse connected |
| 14 to 10 AWG copper, 12 to 10 AWG aluminum wire range |
| Varying actuator |
| Varying enclosure |
| Blue label |
| 120/277 VAC/125 VDC |
