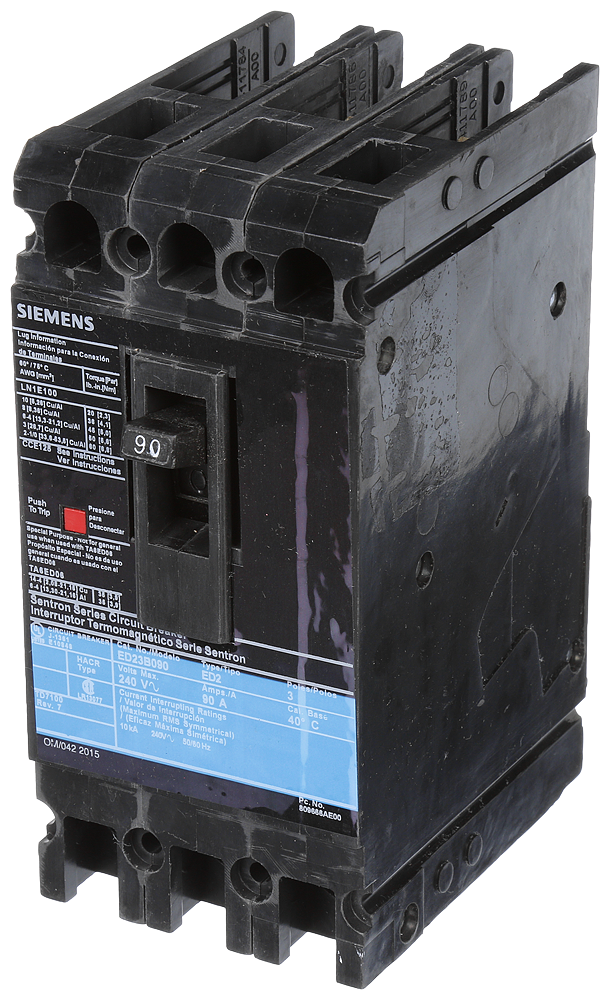

Sentron™ ED23B090 Type ED2 Molded Case Circuit Breaker With Load Lugs, 240 VAC, 90 A, 10 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
284028
MFG #: ED23B090
Siemens
1811.92000
/ ea
- Actuator: Varying
- Alternate Catalog Number: US2:ED23B090
- Application: Standard 40C Breaker
- ARRA Compliant: C
- Auxiliary Contact Rating: Varying
- Auxiliary Contacts: N/A
- Buy American Compliant: C
- Catalog Number: ED23B090
- Color: 40C
- Connection: N/A
- Connection Type: Line Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 4 in L x 7 in W x 6 in H ° C
- Enclosure: Varying
- Enclosure Type: N/A
- Environmental Conditions: N/A
- EU RoHS Indicator: C
- Frame: ED2 A
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 168.00
- Gross Volume UOM: in
- Gross Weight Per Pack: 3.8000 lb
- Gross Weight per Pack Metric: 1.72
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 4.0000 in
- Height [Metric]: 10.1600 cm
- Insulation Type: N/A
- Length: 6.0000 in
- Length [Metric]: 15.2400 cm
- Load Rating: N/A
- Material: 40C
- Mounting Type: 4.000
- Number Of Poles: 3
- Operating Temperature: 40 °C
- Phase: 3 in
- Power Rating: Standard 40C Breaker VAC
- Returnable: N
- Series: Sentron
- Standard: HACR
- Standards: ARRA, Buy American Act and RoHS Compliant, HACR Rated
- Sub Brand: SENTRON
- Temperature Rating: 40 °C
- Trip Range: ED in
- Type: Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364320907
- UPC 12: 783643209077
- Width: 7.0000 in
- Width [Metric]: 17.7800 cm
- Wire Size: Varying
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 90 A
- Interrupt Rating: 10 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 240 VAC/125/250 VDC
Sentron™ Molded Case Circuit Breaker, Type ED2, 240 VAC, 90 A, 50/60 Hz, 10 kA Interrupt, ED Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Line Lug, 40 deg C, 4 in L x 7 in W x 6 in H
- Applications
- Features
| Standard 40C Breaker |
| N/A |
| Varying actuator |
