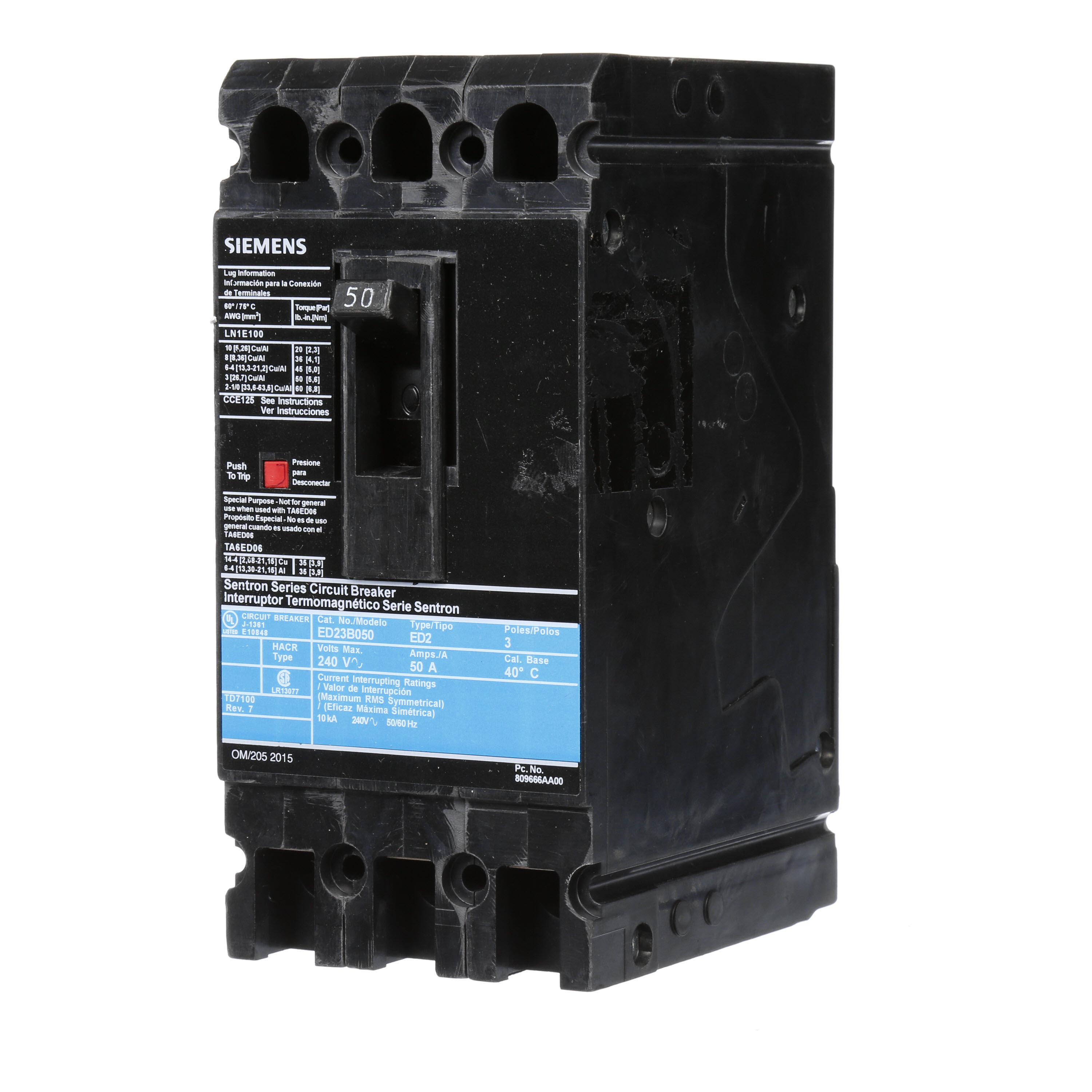

Sentron™ ED23B050 Molded Case Circuit Breaker, 240 VAC, 50 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
93033
MFG #: ED23B050
Siemens
1273.59000
/ ea
- Actuator: Varying
- Alternate Catalog Number: US2:ED23B050
- Application: Standard 40C Breaker
- ARRA Compliant: C
- Auxiliary Contacts: N/A
- Buy American Compliant: C
- Catalog Number: ED23B050
- Connection: N/A
- Connection Type: Load Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 4 in L x 7 in W x 6 in H
- Enclosure: Varying
- Environmental Conditions: N/A
- EU RoHS Indicator: C
- Frame: ED/125A
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 347.64
- Gross Volume UOM: in
- Gross Weight Per Pack: 3.7550 lb
- Gross Weight per Pack Metric: 1.70
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 5.7000 in
- Height [Metric]: 14.4780 cm
- Length: 11.4000 in
- Length [Metric]: 28.9560 cm
- Load Rating: N/A
- Material: N/A
- Mounting Type: Panel
- Number Of Poles: 3
- Operating Temperature: 40 °C
- Phase: 3 pH
- Returnable: Y
- Standard: HACR
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489
- Sub Brand: SENTRON
- Temperature Rating: 40 °C
- Trip Range: N/A
- Type: Type ED2 Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364320903
- UPC 12: 783643209039
- Width: 5.3500 in
- Width [Metric]: 13.5890 cm
- Wire Size: 10 to 1/0 AWG
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 50 A
- Interrupt Rating: 10 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 240 VAC/125/250 VDC
Siemens ED23B050 3P 50A 240V CB
- Catalog 1 URL - Siemens_ED22B030_Catalog.pdf(Catalog 1 URL)
- Catalog URL - Siemens_ED22B030_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_ED-3Pole-Breaker-Frame.DWG(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v1-SF17-07-045.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:ED23B050&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED23B050&language=en(Spec Sheet URL)
- Spec Sheet URL - SF17-07-045.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- User Manual URL - SIE_IS_ED_ETI-MCS.pdf(User Manual URL)
- Applications
- Features
| Standard 40C Breaker |
| N/A |
| All ED frame circuit breakers may be reverse connected |
| 10 to 1/0 AWG copper aluminum wire |
| Varying actuator |
| Varying enclosure |
| Blue label |
