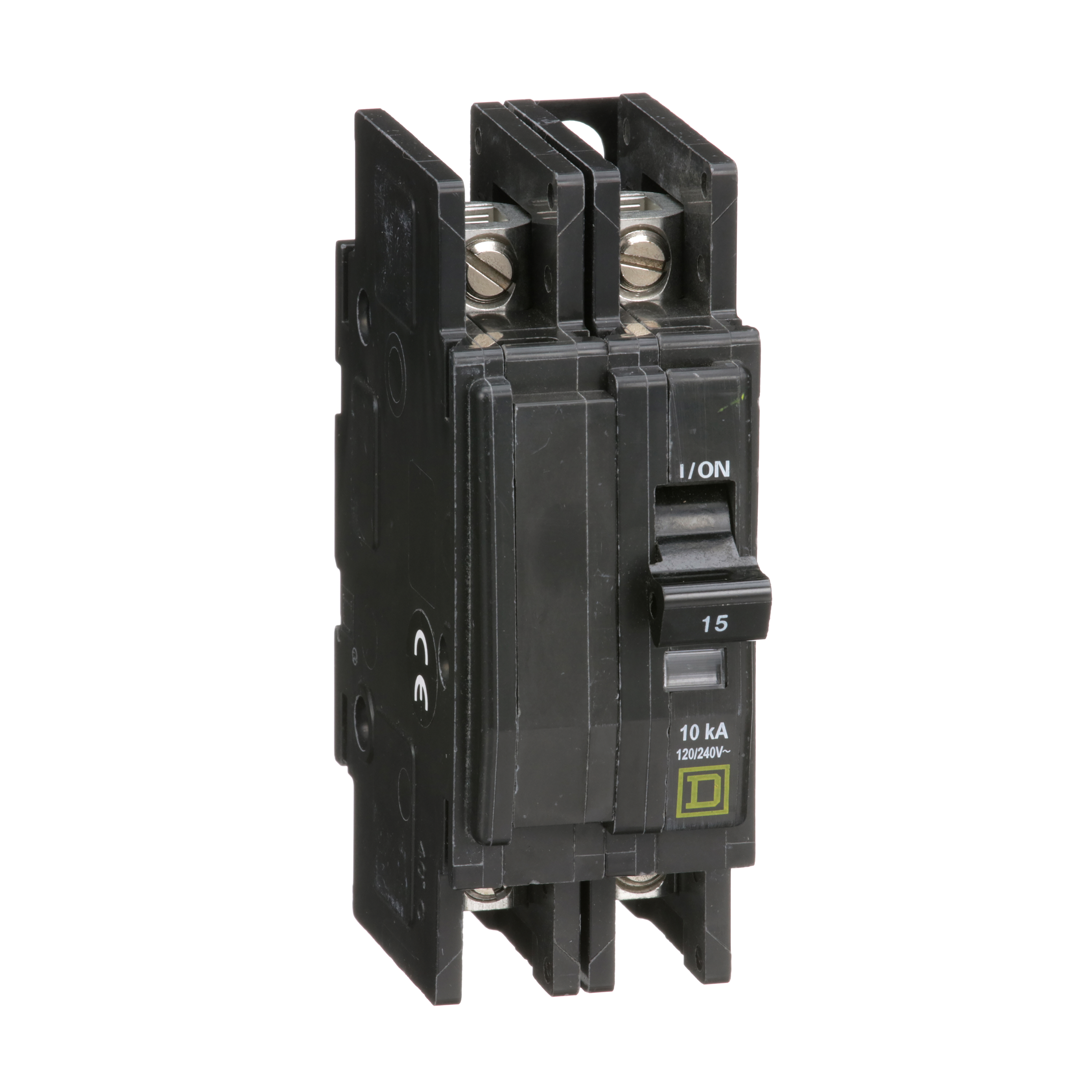

Square D™ QOU215 Miniature Circuit Breaker, 240 VAC/48 VDC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Miniature Circuit Breakers
33246
MFG #: QOU215
Square D™
101.93000
/ ea
- Actuator Type: Toggle
- Alternate Catalog Number: QOU215
- Amperage Rating: 15 A
- Application: HACR and Switching Duty rated
- ARRA Compliant: N
- Brand: Square D™
- Buy American Compliant: N
- Catalog Number: QOU215
- Color: Black
- Connection Type: Box Lug
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 38.81
- Gross Volume per Pack Metric: 635.95
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight per Pack Metric: 168.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536200040
- Height [Metric]: 6.6040 cm
- Interrupt Rating: 10 kA
- Item Group: 00900
- Length [Metric]: 12.4460 cm
- Manufacturer: Schneider Electric
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402177&lang=en-us
- Mounting Type: DIN Rail/Flush/Surface
- Number Of Poles: 2
- Phase: 1
- Returnable: Y
- Standard: UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5.1CE MarkedIEC 60947-2HACR RatedSWD RatedPPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Stock Status: NONSTOCK
- Sub Brand: QOU
- Substitute Product Catalog Number: QOU2PAFLA
- Trip Type: Thermal Magnetic
- Type: Standard Unit Mounted
- UNSPSC: 39121603
- UPC 11: 78590141865
- UPC 12: 785901418658
- Voltage Rating: 120/240 VAC
- Warranty Description: Contractual Warranty:18 months
- Width [Metric]: 5.5880 cm
Square D QOU215 MINIATURE CIRCUIT BREAKER 120/240V 15A,10kA,120/240VAC,15A,Line Box Lug - Load Box Lug #14-2 AWG(Al/Cu),Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
