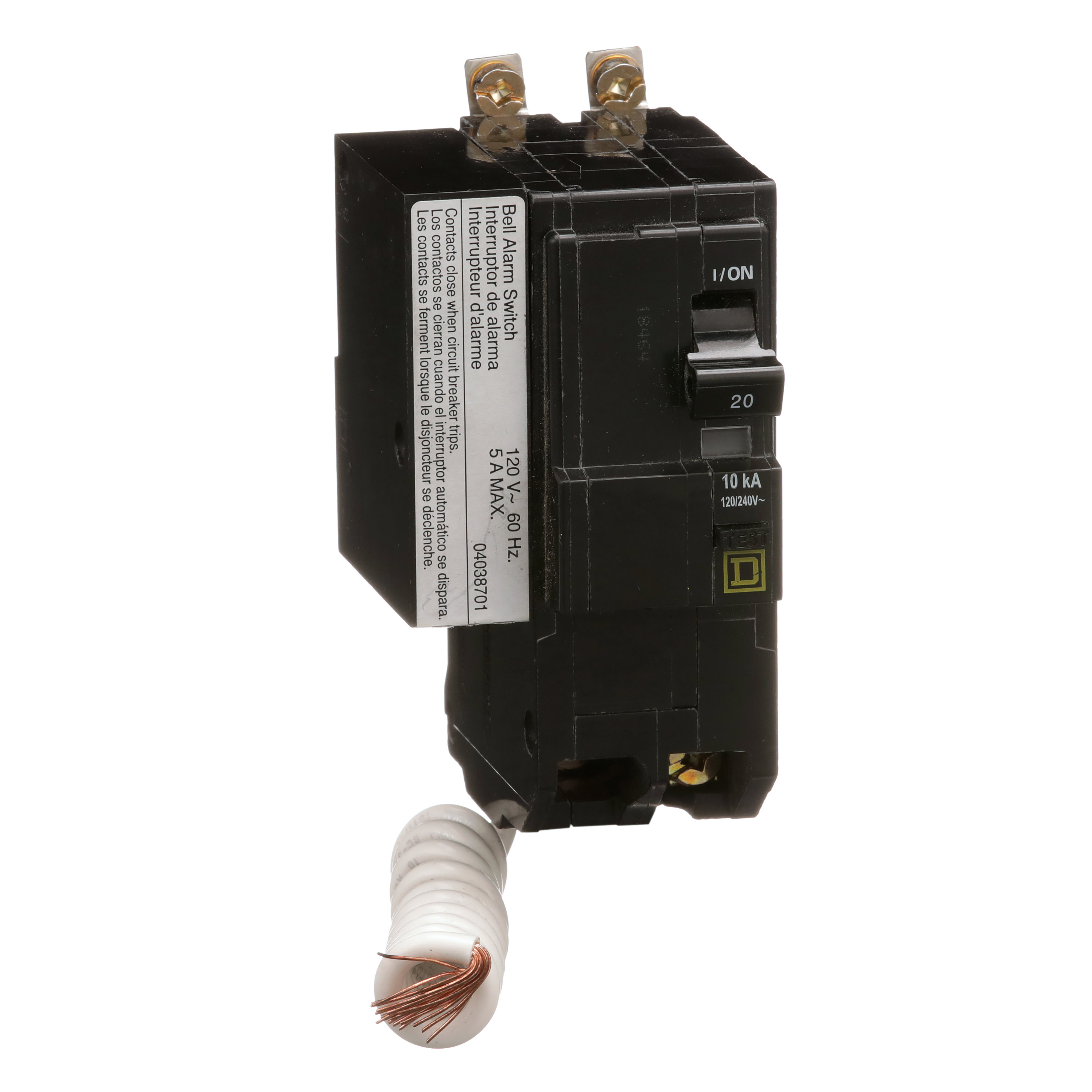

Square D™ QOB220EPD2100 Type QOB-EPD Miniature Circuit Breaker With Alarm Switch, 120/240 VAC, 20 A, 2 Poles
Miniature Circuit Breakers
146544
MFG #: QOB220EPD2100
Square D™
933.38000
/ ea
- Alternate Catalog Number: QOB220EPD2100
- Application: Not rated
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: QOB220EPD2100
- Connection: PRESSURE PLATE #14 TO #8 AWG(AL/CU)
- Country of Origin: US
- Currency: USD
- Dimensions: 4.12 in H x 2.25 in W x 2.91 in D
- Enclosure Type: NEMA AB1
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 1160.0000 lb
- Gross Weight per Pack Metric: 526.17
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536200040
- Height: 5.6640 in
- Height [Metric]: 5.6640 cm
- Item Group: 00910
- Length: 12.1920 in
- Length [Metric]: 12.1920 cm
- Material: Fiberglass Filled Thermoset
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400777&lang=en-us
- Mounting Type: Bolt-On
- Number Of Poles: 2
- Operating Temperature: 40 °C
- Phase: 1
- Returnable: N
- Standard: UL LISTED - CSA CERTIFIED
- Standards: ARRA, Buy American Act, RoHS Compliant, CSA 22.2 No. 5, Federal Specification W-C-375B/GEN, NOM/ANCE, UL 489 File No. E84967, California Provision: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Sub Brand: QO
- Temperature Rating: 104 °F
- Type: MINIATURE CIRCUIT BREAKER
- UNSPSC: 39121603
- UPC 11: 78590108871
- UPC 12: 785901088714
- Warranty Description: Contractual Warranty:18 months
- Width: 8.2300 in
- Width [Metric]: 8.2300 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 20 A
- Interrupt Rating: 10kA
- Voltage Rating: 120/240 VAC
Square D QOB220EPD2100 MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,10kA,120/240 Vac,20A,2P,Ground Fault Protecting (Class B 30mA) Bolt-On,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),Provides overload and short circuit protection Designed to offer Class B (30mA) ground-fault protection for equipment,QO,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8014153360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QOB220EPD2100(3D Rendering URL)
- Brochure URL - 11003_SF18VI3Y75ANRTGZ.pdf(Brochure URL)
- Catalog URL - Square_D_QH115_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_0OGCLSFE6K84YN29.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_QOB11035_Installation_Sheet.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_GF7OB5ALPWSZMCHJ.pdf(Service Manual URL)
- Service Manual URL - 11003_YR2NWPOBI381ZF40.pdf(Service Manual URL)
- Warranty URL - 11003_PVC2OT0S4FZHR6LN.pdf(Warranty URL)
- Tech Drawing URL - 11003_7A15329IBDQNZFOW.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_LI136WMPNKXE04OB.pdf(Tech Drawing URL)
- Spec Sheet URL - 11003_5ZQKNXE3GY6JI2F9.pdf(Spec Sheet URL)
- Warranty URL - files?p_enDocType=Warranty&p_File_Name=0700DB2001.pdf(Warranty URL)
- Applications
- Features
| Not rated |
| GROUND FAULT PROTECTING (CLASS B 30MA) BOLT-ON |
| Designed for superior safety, quality, and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space - compact 3/4 in W design for small system footprint |
| Faster installation - fewer connections |
| Frees gutter space - no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting - time saver diagnostics provide additional circuit information at the touch of a button |
