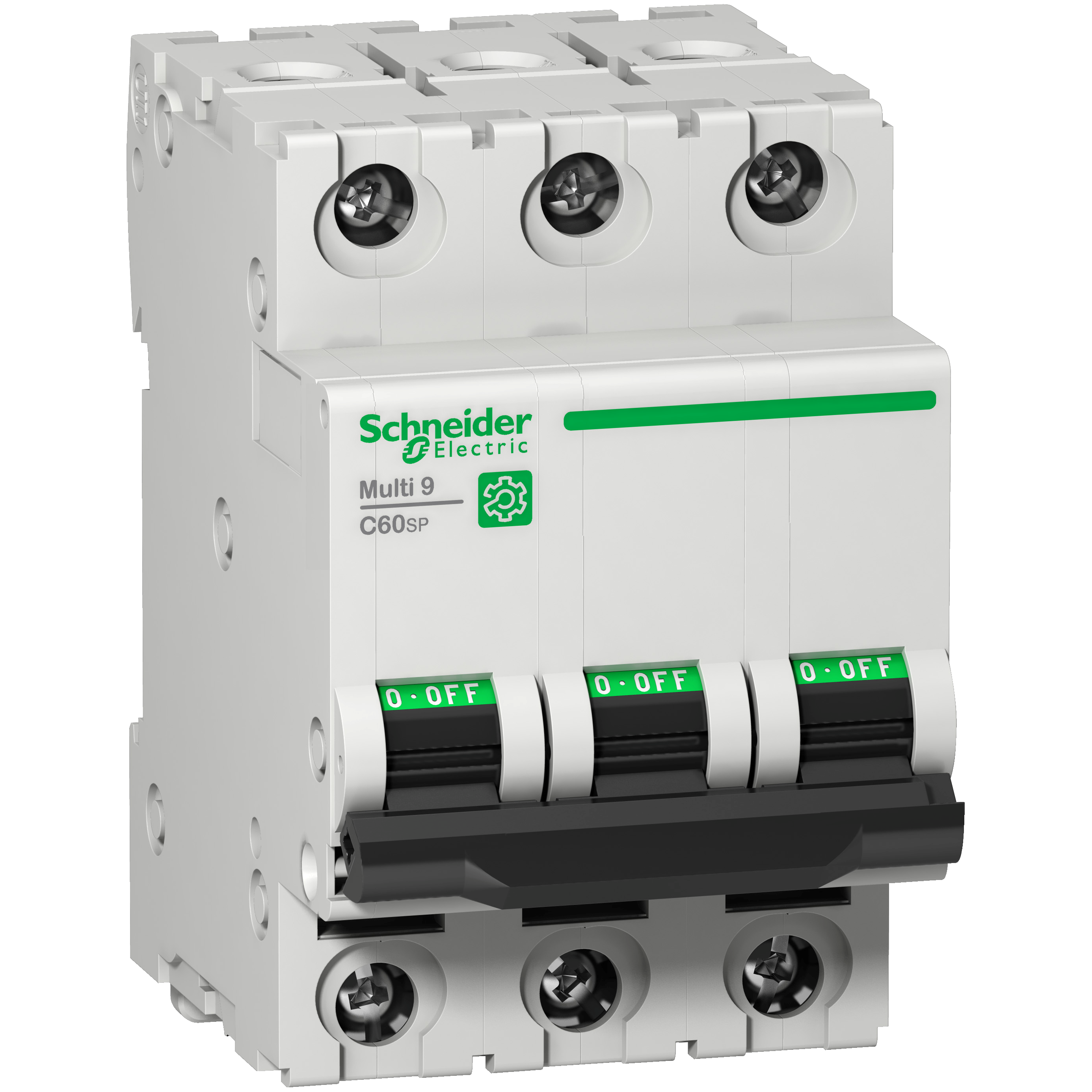

Square D™ M9F22363 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 63 A, 5 kA Interrupt, 3 Poles, C-Curve/Thermal Magnetic Trip
Miniature Circuit Breakers
1211948
MFG #: M9F22363
Square D™
224.98000
/ ea
- Actuator: Toggle
- Actuator Type: Toggle
- Alternate Catalog Number: M9F22363
- Application: Distribution
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: M9F22363
- Color: Gray
- Connection: Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
- Connection Type: Tunnel Terminal
- Country of Origin: US
- Currency: USD
- Dimensions: 3.19 in H x 2.13 in W x 2.83 in D
- Enclosure Type: IP20/IP40
- EU RoHS Indicator: Y
- Frequency Rating: 50/60
- Gross Volume Per Pack: 20.79
- Gross Volume per Pack Metric: 340.69
- Gross Weight Per Pack: 0.8300 lb
- Gross Weight per Pack Metric: 378.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536200040
- Height: 5.4000 in
- Height [Metric]: 5.4000 cm
- Item Group: 00948
- Length: 8.5000 in
- Length [Metric]: 8.5000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710772&lang=en-us
- Mounting Type: Clip-On/DIN Rail
- Number Of Poles: 3
- Returnable: Y
- Series: C60SP
- Standard: EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA
- Sub Brand: Multi9 C60;C60SP
- Substitute Product Catalog Number: M9A26927
- Temperature Rating: -22 to 158
- Trip Range: 8.5X In AC
- Type: Multi-Standard
- UNSPSC: 39121603
- UPC 11: 78590172656
- UPC 12: 785901726562
- Width: 7.5000 in
- Width [Metric]: 7.5000 cm
- Wire Size: 18 to 2 AWG Copper
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 63
- Interrupt Rating: 5
- Trip Type: C-Curve/Thermal Magnetic
- Voltage Rating: 240/415/440
Schneider Electric Multi9™ Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 63 A, 50/60 Hz Frequency, 5 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 2 AWG Copper Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 2.13 in W x 2.83 in D Dimensions, Gray
- Brochure URL - 11003_PRC0LXYKS9T7EI4Q.pdf(Brochure URL)
- Brochure URL - e9f87798d24f515013ee85317d5fec2b373cba12.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADFD0002483_2D-left.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_IRX2S0N3P56Y9LEC.pdf(Spec Sheet URL)
- Applications
- Features
| Distribution |
| ON/OFF indication |
