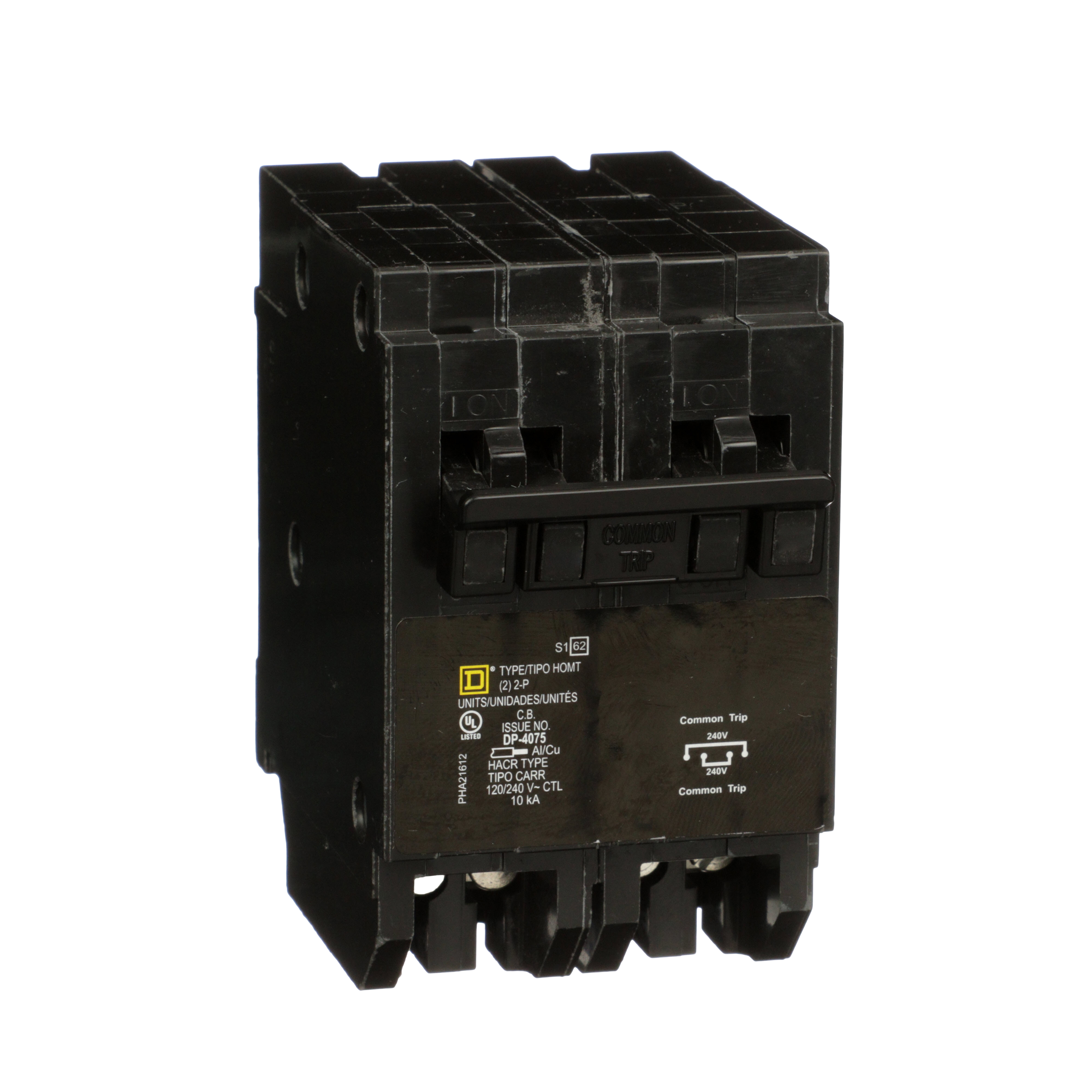

Square D™ Homeline® HOMT230230 Quad Tandem Miniature Circuit Breaker, 120/240 VAC, 30 A, 2 Poles
Miniature Circuit Breakers
1333440
MFG #: HOMT230230
Square D™
42.73000
/ ea
- Alternate Catalog Number: HOMT230230
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: HOMT230230
- Country of Origin: MX
- Currency: USD
- Depth: 3.23 in
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 21.12
- Gross Volume per Pack Metric: 346.09
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 1.0000 lb
- Gross Weight per Pack Metric: 453.59
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536200020
- Height: 8.0000 in
- Height [Metric]: 8.0000 cm
- Item Group: 00046
- Length: 8.2000 in
- Length [Metric]: 8.2000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=469269255&lang=en-us
- Number Of Poles: 2
- Returnable: Y
- Substitute Product Catalog Number: HOM2040L125PC
- UNSPSC: 39121603
- UPC 11: 78590197045
- UPC 12: 785901970453
- Width: 5.0000 in
- Width [Metric]: 5.0000 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Voltage Rating: 120/240 VAC
Square D™ Homeline® Miniature Circuit Breaker, Quad Tandem, 120/240 VAC, 30 A, 2 Pole, 1 ph, Box Lug, 14 to 8 AWG Aluminum/Copper Wire, Plug-In Mount, 40 deg C, 1.97 in W x 3.23 in D x 3.13 in H
- 360 Degree View URL - index.html?pid=11003&id=14537245360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_GC0DL4EK8AR9OMQF.pdf(Spec Sheet URL)
- Features
| Combination cover for flush or surface mounting |
| Aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Convertible mains meet changing job site requirements |
| Single captive screw interior mounting on indoor panels to ease removal |
| Split branch neutral for clutter-free wiring |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Combination slot/square drive neutral, ground, and cover screws for positive drive and improved torque |
| Automatic flush adjustment cover speeds installation |
| Automatic flush adjustment cover speeds installation |
| Tangential main service knockouts eliminate offsets |
| Equipment grounding bar included with main lug load centers |
| Cover supplied with load center |
| Provisions for door lock on convertible mains panel covers |
| Two-branch circuit breaker twist outs are factory removed for easier installation of circuit breakers |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Standard 22/10 k air series rating on main circuit breaker panels increases application capability |
