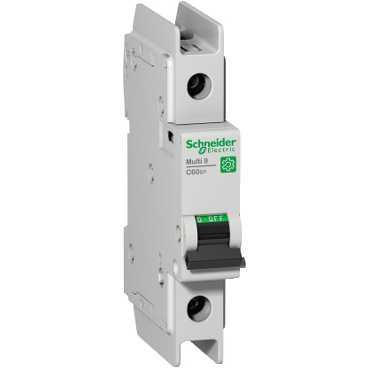

Square D™ C60BP Multi-Standard Miniature Circuit Breaker, 240/415 VAC/60 VDC, 4 A, 10 kA Interrupt, 1 Pole
Miniature Circuit Breakers
1087559
MFG #: M9F43104
Square D™
79.67000
/ ea
- Actuator: Toggle
- Actuator Type: Toggle
- Alternate Catalog Number: M9F43104
- Amperage Rating: 4 A
- Application: DISTRIBUTION
- ARRA Compliant: N
- Brand: Square D™
- Buy American Compliant: N
- Catalog Number: M9F43104
- Color: Gray
- Connection Type: Tunnel
- Country of Origin: US
- Currency: USD
- Enclosure Type: IP20/IP40
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 8.04
- Gross Volume per Pack Metric: 131.75
- Gross Weight Per Pack: 0.2700 lb
- Gross Weight per Pack Metric: 122.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536200040
- Interrupt Rating: 10 kA
- Item Group: 00949
- Manufacturer: Schneider Electric
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710436&lang=en-us
- Mounting Type: Clip-On/DIN Rail
- Number Of Poles: 1
- Returnable: Y
- Series: C60BP
- Standard: EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL
- Standards: ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2
- Stock Status: NONSTOCK
- Sub Brand: C60BP;Multi 9 C60
- Substitute Product Catalog Number: M9A26927
- Trip Type: D-Curve/Thermal Magnetic
- Type: Multi-Standard
- UNSPSC: 39121603
- UPC 11: 78590169361
- UPC 12: 785901693611
Square D™ Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415 VAC/60 VDC, 4 A, 50/60 Hz, 10 kA Interrupt, D-Curve Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 1 Pole, Toggle Actuator, Tunnel, 18 to 8 AWG Cu Wire, IP20/IP40, Clip-On/DIN Rail Mount, -22 to 158 deg F, 4.06 in H x 0.71 in W x 2.83 in D, Gray
