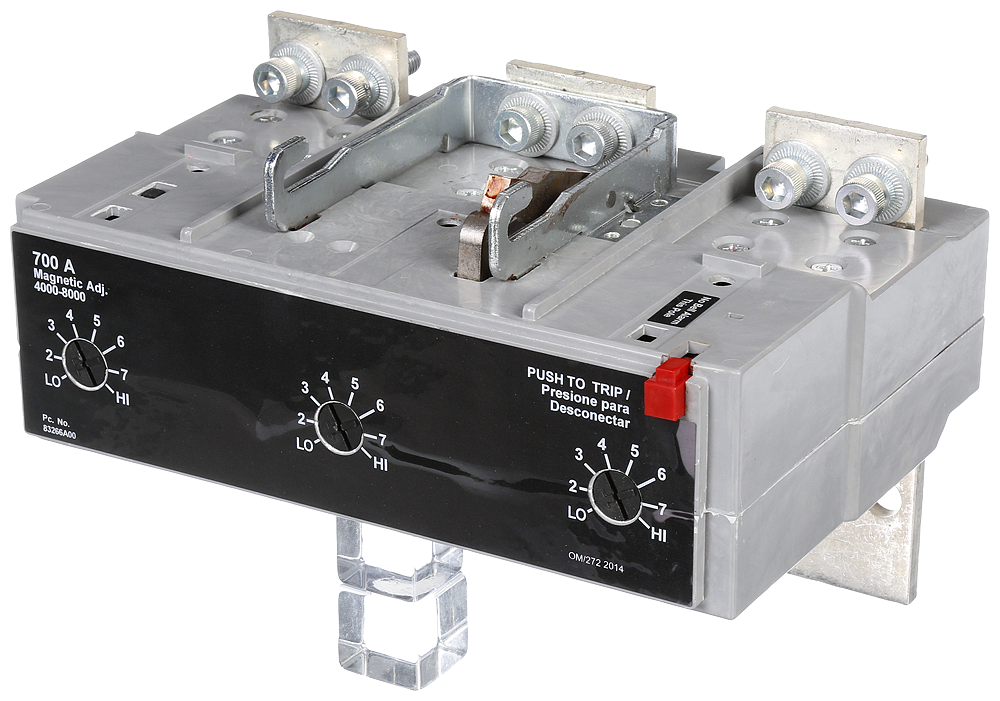

Sentron™ MD63T700 SpeedFax™ Interchangeable Trip Unit, 3 Poles, 700 A, MD Frame

Breaker Trip Units
1018231 MFG #: MD63T700
Siemens
6712.54000 / ea
Siemens_MD63T600_1
  • Actuator: Varying
  • Alternate Catalog Number: US2:MD63T700
  • Application: 40C Trip Unit Only
  • ARRA Compliant: C
  • Auxiliary Contacts: N/A
  • Buy American Compliant: C
  • Catalog Number: MD63T700
  • Connection: N/A
  • Country of Origin: MX
  • Currency: USD
  • Dimensions: 7.2 in L x 7.8 in W x 9.6 in H
  • Enclosure: Varying
  • Environmental Conditions: N/A
  • EU RoHS Indicator: C
  • Frame: MD
  • Frequency Rating: 50/60 Hz
  • Gross Volume Per Pack: 560.00
  • Gross Volume UOM: in
  • Gross Weight Per Pack: 6.2500 lb
  • Gross Weight per Pack Metric: 2.84
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 8536308000
  • Height: 7.20 in
  • Height [Metric]: 18.2880 cm
  • Interrupt Rating: 25KAIC
  • Length: 9.60 in
  • Length [Metric]: 24.3840 cm
  • Load Rating: N/A
  • Operating Temperature: 40C
  • Returnable: Y
  • Standard: HACR
  • Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedHACR Rated
  • Sub Brand: SENTRON
  • Trip Range: 4000-8000
  • Trip Type: Interchangable
  • Type: Interchangeable
  • UNSPSC: 39121601
  • UPC 11: 78364321483
  • UPC 12: 783643214835
  • Voltage Rating: 600//250 VAC//VDC
  • Width: 7.80 in
  • Width [Metric]: 19.8120 cm
  • Stock Status: NONSTOCK
  • Brand: Siemens
  • Manufacturer: Siemens
  • Breaker Frame Type: MD
  • Number Of Poles: 3
  • Current Rating: 700 A
  • Material: N/A
  • Suitable For Use With: MD6 Series Molded Case Circuit Breaker
Sentron™ SpeedFax™ Interchangeable Trip Unit, 3 Poles, 700 A, MD Breaker Frame, For Use With: MXD6 600 VAC/500 VDC 25 kA Molded Case Circuit Breaker, 7.2 in L x 9.6 in H
QTY
Add to Wishlist
  • Applications
  • Features
40C Trip Unit Only
N/A
40 deg C operating temperature
25 kA interrupt rating
50/60 Hz frequency
4000 to 8000 A trip range
