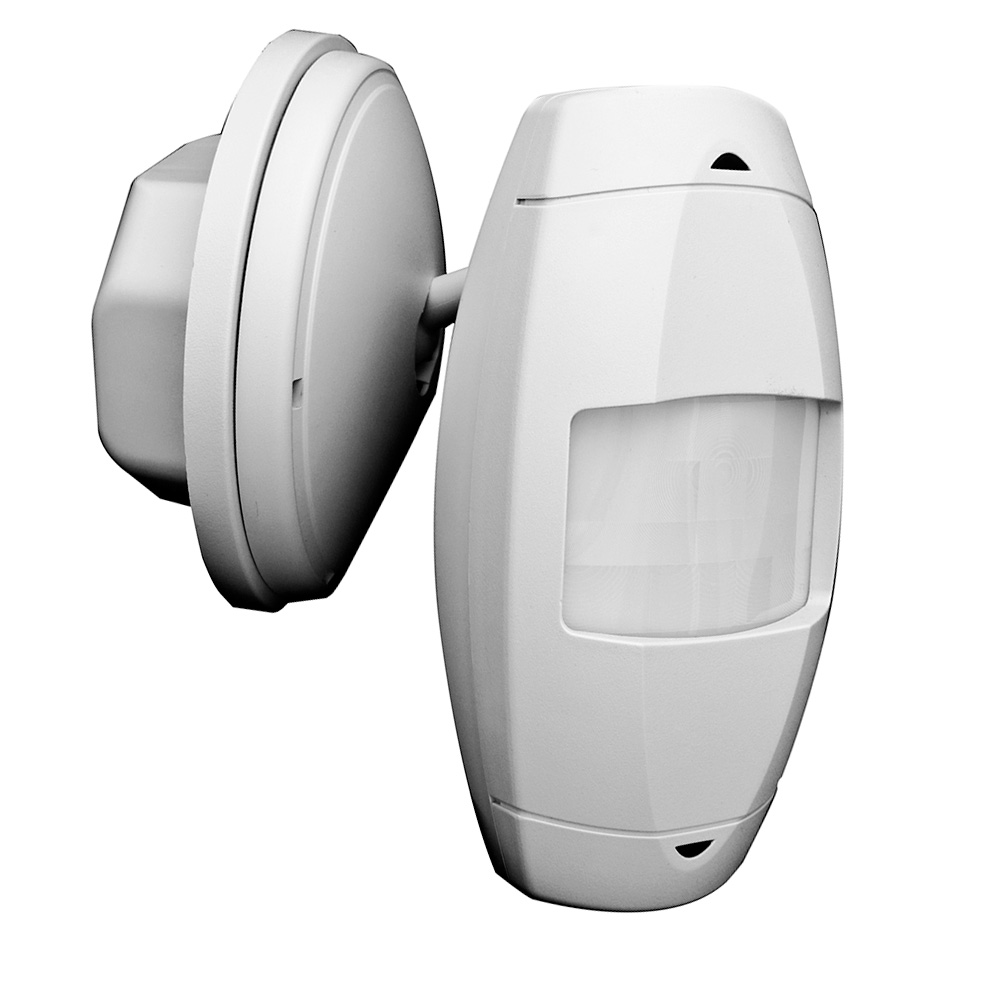

Leviton® ODWHB-IDW ODWHB Aisle High Bay Line Voltage Occupancy Sensor With Power Base Combo, 120/277 VAC/24 VDC, PIR Sensor
Custom_Product_Images_Illustration
Leviton® ODWHB-IDW ODWHB Aisle High Bay Line Voltage Occupancy Sensor With Power Base Combo, 120/277 VAC/24 VDC, PIR Sensor
SKU844466
MFGR #ODWHB-IDW
$/ea
Leviton® ODC and ODW series sensors provide a full line of self contained PIR, ultrasonic (U/S) and multi-technology (M/T) occupancy sensors. The sensor's main function is to turn the lights ON or maintain the lights ON while movement is detected within the sensor's field-of-view, and turn the lights OFF when the space is vacant.
Leviton® ODC and ODW series sensors provide a full line of self contained PIR, ultrasonic (U/S) and multi-technology (M/T) occupancy sensors. The sensor's main function is to turn the lights ON or maintain the lights ON while movement is detected within the sensor's field-of-view, and turn the lights OFF when the space is vacant.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number ODWHB-IDW Country of Origin CN Currency USD Environmental Conditions Storage Temperature (-10 DEG C to +85 DEG C);Relative Humidity (0 to 90 PCT) EU RoHS Indicator C Frequency Response 50/60 Hz Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Lamp Type Fluorescent/Incandescent Mounting Wall Power Rating 3/4 hp Response Frequency 50/60 Hz Sensing Distance 55 x 7 ft Series ODWHB Standard UL Listed;CUL Listed;NOM;CEC Title 24 Standards ARRA CompliantBuy American Act CompliantCEC ApprovedNOM CertifiedTitle 24 CompliantUL/cUL Listed Temperature Rating 0 to +40 °C Time Delay 30 s to 30 min Type Passive Infrared;High Bay Sensor UNSPSC 41111961 UPC 11 07847754004 UPC 12 07847754004 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 40 mA Color Off-White Coverage 55 x 7 ft Mounting Type Wall Sensor Type PIR Viewing Angle 8 ° Voltage Rating 120 to 277 V Commercial Maximum Reliability, Low Cost, 5-Year Limited Warranty, Country of Origin China Streamlined installation offers customers an immediate energy management solution Mounts easily in electrical box and provides leads for simple line voltage connection Zero crossing circuitry for enhanced reliability and long life operation Self-adjusting - internal microprocessor continually analyzes, evaluates and adjusts the infrared sensitivity and time delay Non-volatile memory - learned and adjusted settings saved in protected memory are not lost during power outages Maximum reliability, low cost digital circuitry uses a minimum of components Walk through, provides increased energy savings by decreasing the time delay to 2.5 min when someone momentarily walks through the monitored space Ambient light recognition - a light sensor prevents lights from turning ON when the room is adequately lit by natural light
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ODWHB-IDW |
| Country of Origin | CN |
| Currency | USD |
| Environmental Conditions | Storage Temperature (-10 DEG C to +85 DEG C);Relative Humidity (0 to 90 PCT) |
| EU RoHS Indicator | C |
| Frequency Response | 50/60 Hz |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Lamp Type | Fluorescent/Incandescent |
| Mounting | Wall |
| Power Rating | 3/4 hp |
| Response Frequency | 50/60 Hz |
| Sensing Distance | 55 x 7 ft |
| Series | ODWHB |
| Standard | UL Listed;CUL Listed;NOM;CEC Title 24 |
| Standards | ARRA CompliantBuy American Act CompliantCEC ApprovedNOM CertifiedTitle 24 CompliantUL/cUL Listed |
| Temperature Rating | 0 to +40 °C |
| Time Delay | 30 s to 30 min |
| Type | Passive Infrared;High Bay Sensor |
| UNSPSC | 41111961 |
| UPC 11 | 07847754004 |
| UPC 12 | 07847754004 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 40 mA |
| Color | Off-White |
| Coverage | 55 x 7 ft |
| Mounting Type | Wall |
| Sensor Type | PIR |
| Viewing Angle | 8 ° |
| Voltage Rating | 120 to 277 V |
| Commercial |
| Maximum Reliability, Low Cost, 5-Year Limited Warranty, Country of Origin China |
| Streamlined installation offers customers an immediate energy management solution |
| Mounts easily in electrical box and provides leads for simple line voltage connection |
| Zero crossing circuitry for enhanced reliability and long life operation |
| Self-adjusting - internal microprocessor continually analyzes, evaluates and adjusts the infrared sensitivity and time delay |
| Non-volatile memory - learned and adjusted settings saved in protected memory are not lost during power outages |
| Maximum reliability, low cost digital circuitry uses a minimum of components |
| Walk through, provides increased energy savings by decreasing the time delay to 2.5 min when someone momentarily walks through the monitored space |
| Ambient light recognition - a light sensor prevents lights from turning ON when the room is adequately lit by natural light |
