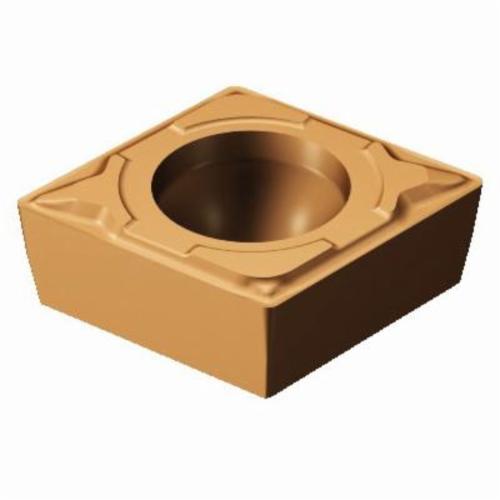

Sandvik Coromant 5724092 CoroTurn® 107 Basic Shape Positive Turning Insert, CCMT 3(2.5)0-MF 1125, C-80 deg Diamond
CCMT Turning Inserts
466723
MFG #: 5724092
Sandvik Coromant
14.76000
/ ea
- Alternate Catalog Number: CCMT 3(2.5)0-MF 1125
- ANSI Code: CCMT 3(2.5)0-MF 1125
- Catalog Number: 5724092
- Corner Radius: 0.0078 in
- Country of Origin: SE
- Finish: PVD-TiAlN+AlCr2O3 Coated
- Gross Weight Per Pack: 0.1100 lb
- Hole Diameter: 0.1732 in
- Included Angle: 80 °
- ISO Code: CCMT 09 T3 02-MF 1125
- Item Group: 120
- Relief Angle: 7 °
- Series: CoroTurn® 107
- Thickness: 0.1562 in
- UPC 11: 69826243347
- UPC 12: 69826243347
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: MF
- Cutting Direction: Neutral
- For Use On: Stainless Steel and Heat Resistant Super Alloys and Titanium
- Inscribed Circle: 3/8 in
- Insert Size: 3(2.5)0
- Insert Style: CCMT
- Manufacturer's Grade: 1125
- Material: Carbide
- Material Grade: M, S
- Maximum Depth of Cut: 2 mm
- Rake: Positive
- Seat Size: 09
- Shape: Diamond
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCMT Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.3807 in Length, MF Chipbreaker, 0.0078 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: CCMT 3(2.5)0-MF 1125, ISO Code: CCMT 09 T3 02-MF 1125, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M
- Features
| Universal geometry for stainless materials and for high temperature alloys |
| Machining long chipping steels |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
| 20 life cycle state |
