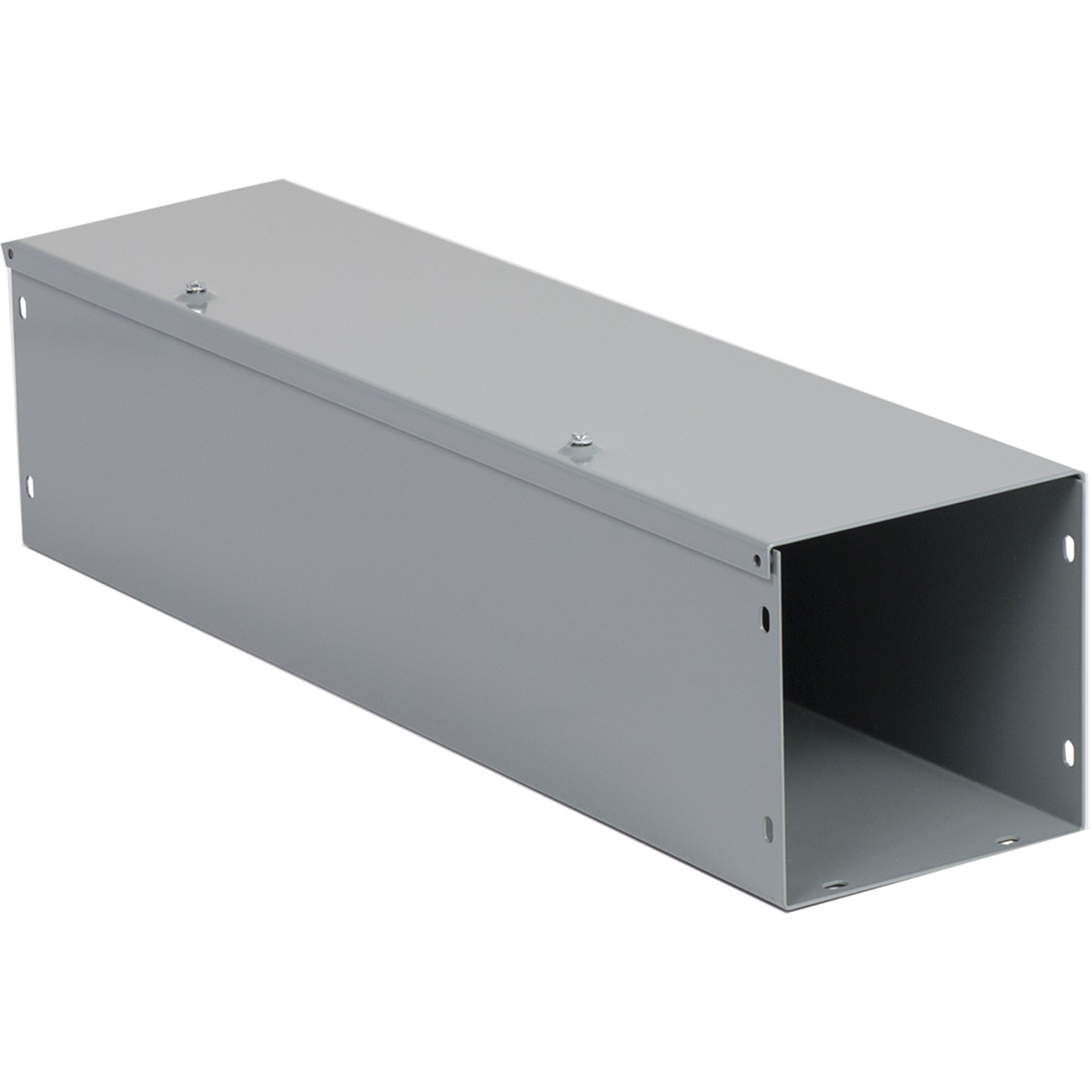

Square D™ Square-Duct™ LDB62 Type LDB General Purpose Wireway, 2 ft L x 6 in W x 6 in H, Hinged Cover, Steel
Custom_Product_Images_Illustration
Square D™ Square-Duct™ LDB62 Type LDB General Purpose Wireway, 2 ft L x 6 in W x 6 in H, Hinged Cover, Steel
SKU177569
MFGR #LDB62
Your Cost: $49.00/ea
List: Square D LDB62 WIREWAY 6 x 6 - N1 Paint - 2 ft lg,16 gauge steel,2 Feet,6 x 6 in,ANSI 61 Gray Polyester Powder,NEMA 1,Painted Hinge Cover,SQUARE-Duct,UL Listed - CSA Certified,Wireway Straight Length
Square D LDB62 WIREWAY 6 x 6 - N1 Paint - 2 ft lg,16 gauge steel,2 Feet,6 x 6 in,ANSI 61 Gray Polyester Powder,NEMA 1,Painted Hinge Cover,SQUARE-Duct,UL Listed - CSA Certified,Wireway Straight Length
Alternate Catalog Number LDB62 ARRA Compliant N Buy American Compliant N Catalog Number LDB62 Color Gray Country of Origin US Currency USD Enclosure Steel 16 gauge without knock-outs EU RoHS Indicator Y Finish Gray polyester powder ANSI 49 Gross Volume Per Pack 952.32 Gross Volume per Pack Metric 15605.67 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 10.8000 lb Gross Weight per Pack Metric 4.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height [Metric] 16.2560 cm Item Group 01421 Length [Metric] 60.9600 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7231939&lang=en-us NEMA Rating NEMA 1 Nominal Cross Section 6 X 6 IN Returnable Y Standard CSA-UL LISTED,NEMA 1 Standards UL File No. E27524870CSA File No. LL42184IEC 60529REACH CompliantRoHS Compliant Straight Section Length 2 FT ft Sub Brand SQUARE-DUCT Substitute Product Catalog Number LDB690L Type Type LDB General Purpose UNSPSC 39131710 UPC 11 78590119990 UPC 12 785901199908 Warranty Description Contractual Warranty:18 months Width [Metric] 15.7480 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Cover Type Hinged Height 16.2560 in Length 60.9600 in Material Steel Width 15.7480 in Patented hidden hinge permits the screw-cover arrangement to be converted to a hinge-cover system on all sizes except 12 x 12 in Open-top assembly protection for wire and cable insulation that could be damaged in a pull-through wiring system Polyester powder ANSI 49 finish Without knockouts
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LDB62 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LDB62 |
| Color | Gray |
| Country of Origin | US |
| Currency | USD |
| Enclosure | Steel 16 gauge without knock-outs |
| EU RoHS Indicator | Y |
| Finish | Gray polyester powder ANSI 49 |
| Gross Volume Per Pack | 952.32 |
| Gross Volume per Pack Metric | 15605.67 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 10.8000 lb |
| Gross Weight per Pack Metric | 4.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height [Metric] | 16.2560 cm |
| Item Group | 01421 |
| Length [Metric] | 60.9600 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7231939&lang=en-us |
| NEMA Rating | NEMA 1 |
| Nominal Cross Section | 6 X 6 IN |
| Returnable | Y |
| Standard | CSA-UL LISTED,NEMA 1 |
| Standards | UL File No. E27524870CSA File No. LL42184IEC 60529REACH CompliantRoHS Compliant |
| Straight Section Length | 2 FT ft |
| Sub Brand | SQUARE-DUCT |
| Substitute Product Catalog Number | LDB690L |
| Type | Type LDB General Purpose |
| UNSPSC | 39131710 |
| UPC 11 | 78590119990 |
| UPC 12 | 785901199908 |
| Warranty Description | Contractual Warranty:18 months |
| Width [Metric] | 15.7480 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Cover Type | Hinged |
| Height | 16.2560 in |
| Length | 60.9600 in |
| Material | Steel |
| Width | 15.7480 in |
| Patented hidden hinge permits the screw-cover arrangement to be converted to a hinge-cover system on all sizes except 12 x 12 in |
| Open-top assembly protection for wire and cable insulation that could be damaged in a pull-through wiring system |
| Polyester powder ANSI 49 finish |
| Without knockouts |
