Telemecanique XZCP0166L5 OsiSense® XZ Clip-On Pre-Wired Connector, 60 VAC/75 VDC, 3-Pin 8 mm Straight Female Connector End Connection, 16.4 FT, (3) 0.34 Conductor, PUR
Sensor/Actuator Cable Assemblies
PDW~10432365
MFG #: XZCP0166L5
Telemecanique Sensors
31.80000
/ ft
- Alternate Catalog Number: XZCP0166L5
- Amperage Rating: 4 A
- Application: General purpose
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: XZCP0166L5
- Connection: Straight female connector Ø 8 mm, 3 pins
- Country of Origin: CZ
- Currency: USD
- Enclosure: IP65-IP67
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.2750 lb
- Gross Weight per Pack Metric: 125.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8544429090
- Height: 1.40 in
- Height [Metric]: 3.6000 cm
- Item Group: 22483
- Length [Metric]: 18.4000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=877744&lang=en-us
- Mounting: Clip-on
- Operating Temperature: -40-80 A°C STATIC--5-80 A°C FLEXING
- Returnable: N
- Standard: IP65-IP67,CULUS
- Type: General purpose;Cabling accessory;Pre-wired connectors
- UNSPSC: 39121528
- Warranty Description: Contractual Warranty:18 months
- Width: 6.79 in
- Width [Metric]: 17.4000 cm
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Length: 7.18 m
- Voltage Rating: 60 V AC-75 V DC

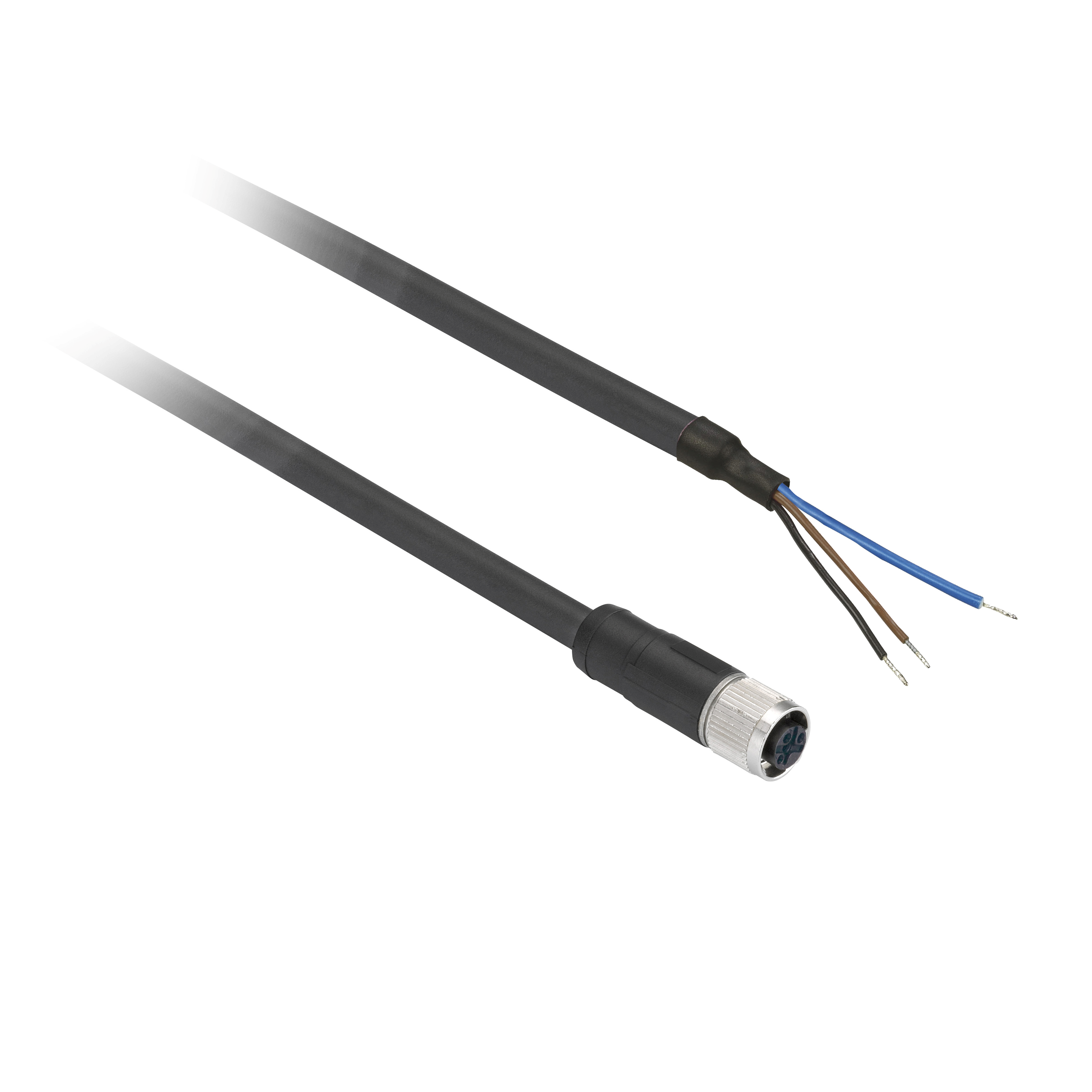

Telemecanique OsiSense® XZ Pre-Wired Connector, Clip-On, Series: XZ Series, 60 VAC/75 VDC, 4 A, 3-Pin 8 mm Straight Female Connector, 16.4 ft Length, (3) 0.34 sq-mm Conductor, 5000 uOhm, -40 to 80 deg C Static/-5 to 80 deg C Flexing, PUR. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
- Brochure URL - 11003_FSAPC3UNYMWQ7TJZ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_PXTZGDFN68ES042M.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_Q6XL397S5A2GTUVO.pdf(Service Manual URL)
- Spec Sheet URL - 11003_HOU1YMC5TW06B8LX.pdf(Spec Sheet URL)
- Applications
- Features
General purpose |
IP65-IP67 |
