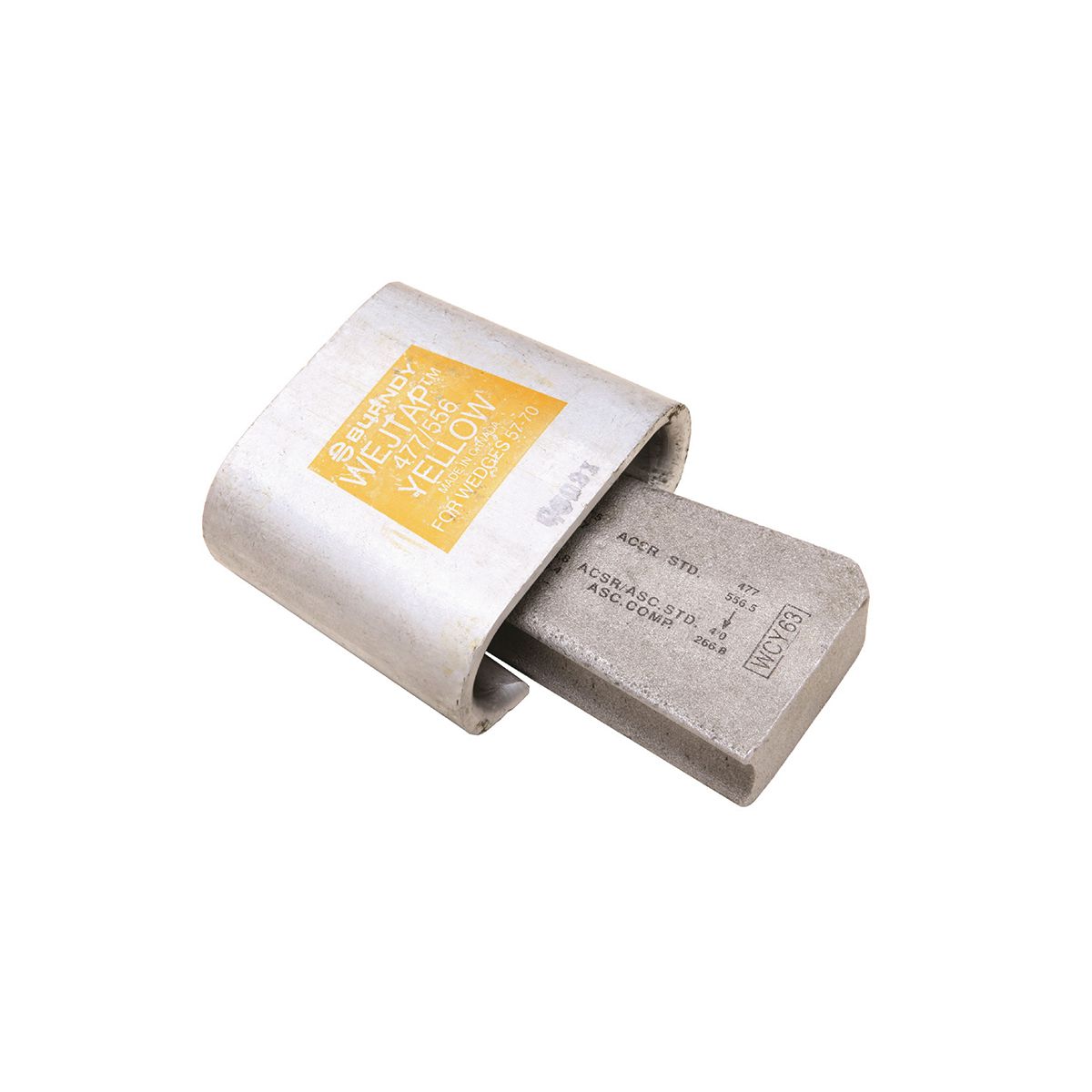

Burndy® Wejtap™ WCY62 Wedge Overhead Tap With Yellow Booster, Aluminum Conductor, 350 kcmil, 4/0 AWG Minimum Run/Tap
Wedge Overhead Taps
439806
MFG #: WCY62
BURNDY®
59.19000
/ ea
- Application: For use in tap applications using large run and tap conductor sizes
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: WCY62
- Country of Origin: MX
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 1.0000 lb
- Gross Weight per Pack Metric: 0.45
- Harmonization Tariff Schedule Code: 8535908040
- Height: 0.77
- Height [Metric]: 1.9558
- Length: 3.50
- Length [Metric]: 8.8900
- Returnable: Y
- Specifications: 250 kcmil, 266.8 kcmil to 18/1 AWG, 336.4 kcmil to 18/1 AWG, 350 kcmil, 397.5 kcmil to 18/1 AWG, 477 kcmil, 500 kcmil Tap, 1.379 to 1.594 Sum of Dia
- Sub Brand: WEJTAP
- Type: Wejtap Connector
- UNSPSC: 39121427
- UPC 11: 78181087450
- UPC 12: 781810874509
- Width: 2.35
- Width [Metric]: 5.9690
- Stock Status: NONSTOCK
- Brand: BURNDY®
- Manufacturer: BURNDY®
- Conductor Type: Copper
- Minimum Run|Tap: 397.5 kcmil, 4/0 AWG
- Material: Copper
- Maximum Run|Tap: 556.5 kcmil, 397.5 kcmil
BURNDY® Wejtap™ Wedge Overhead Tap, Aluminum Conductor, 350 kcmil, 4/0 AWG Minimum Run/Tap, 700 kcmil, 450 kcmil Maximum Run/Tap, 1.379 to 1.594 Sum of Dia, Aluminum
- Brochure URL - 10969_ID-SPE-v1-WCY62.pdf(Brochure URL)
- Brochure URL - BURNDY_WCY62_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_cac7c2f77f04eaad09d983d571f5297bb88eb6cdd25023b71a63439e15bc8502.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10969_VMNRJKZ657F4WAG8.pdf(Spec Sheet URL)
- Spec Sheet URL - ID-SPE-v1-WCY62.pdf(Spec Sheet URL)
- Spec Sheet URL - WCY62.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_1B75LQNUVCX62FRY.pdf(Tech Drawing URL)
- Tech Drawing URL - 50014998.pdf(Tech Drawing URL)
- Applications
- Features
| For use in tap applications using large run and tap conductor sizes |
| Features: With Yellow Power Booster, ANSI Class AA, Installation Tool: WTRB, WTY Tool, Color Code: Yellow, Booster: WPBY Box 25, Booster Color: Yellow, Conductor Size (tap - Mm): 15 - 19 SQ-MM, Conductor Type: Run: ACSR, AAC, Tap: ACSR, AAC, Copper, Cable Diameter Range (run): 0.683 - 0.94 IN, Conductor Size (run - Mm): 17 - 24 SQ-MM, Cable Diameter Range (tap): 0.573 - 0.75 IN |
| Color coded boosters ensure proper matching during installation |
| Power booster is designed and engineered for the highest reliability and safety, proven rimfire design means misfires are almost nonexistent |
| Close manufacturing component tolerances provide maximum resistance to moisture or submersion |
| WTRB installation tool |
| Box of 25 WPBY booster |
| ACSR, AAC run/tap conductor |
| 15 to 19 sq-mm conductor (tap to Mm) |
| 0.683 to 0.94 in Dia cable (run) |
| 17 to 24 sq-mm conductor (run to Mm) |
| 0.573 to 0.75 in Dia cable (tap) |
