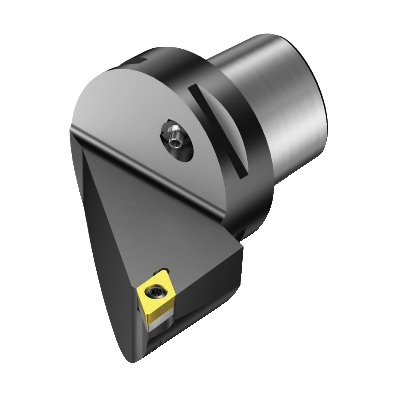

Sandvik Coromant 5729313 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Left Hand, DCMT-11T308 Insert
Modular Turning/Profiling Cutting Heads
1077024
MFG #: 5729313
Sandvik Coromant
431.44000
/ ea
- Alternate Catalog Number: C6-SDJCL-45065-11
- Catalog Number: 5729313
- Country of Origin: SE
- Gross Weight Per Pack: 2.5600 lb
- Head Length|Projection: 65 mm
- Insert Style: DCMT
- Item Group: 410
- Material: Steel
- Overall Length: 103 mm
- Series: CoroTurn® 107
- UPC 11: 69826245059
- UPC 12: 69826245059
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Center to Cutting Edge: 45 mm
- Cutting Direction: Left Hand
- Insert Compatibility: DCMT 11T308
- Insert Holding Method: Screw Clamp
- Internal or External: External
- System Size: C6
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DCMT-11T308, Left Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
- Features
| Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral coolant exit with nozzles, adjustable |
| 63 mm Dia connection |
| 93 deg cutting edge |
| 0 deg inclination |
| 27 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 65 mm maximum overhang |
| -3 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-SDJCL-45065-11 |
| ISO Code: C6-SDJCL-45065-11 |
