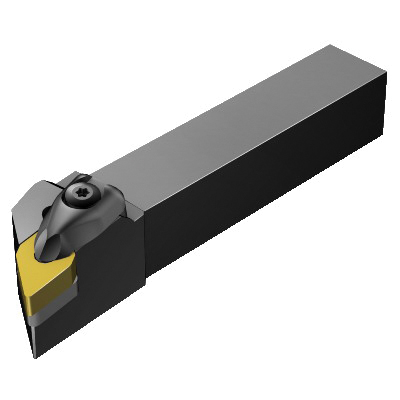

Sandvik Coromant 5731053 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 15 04 08 Insert, -3 deg Lead, Rectangle Shank, Right Hand
Indexable Turning Tool Holders
80646
MFG #: 5731053
Sandvik Coromant
145.90000
/ ea
- Alternate Catalog Number: DDJNR 12 4B
- ANSI Code: DDJNR 12 4B
- Back of Bar to Cutting Edge: 3/4 in H x 3/4 in W
- Catalog Number: 5731053
- Country of Origin: SE
- Finish: DDJNR/L
- Gross Weight Per Pack: 1.9800 lb
- Head Length: DDJNR/L
- Inscribed Circle: DDJNR 12 4B
- Insert Seat Size: 1/2
- ISO Code: DDJNR 12 4B
- Item Group: 410
- Material: Steel
- Series: T-Max P
- Shank Type: Rectangle
- Type: 1/2 in
- UPC 11: 69826218863
- UPC 12: 69826218863
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Right Hand
- Insert Compatibility: DNMG 15 04 08
- Lead Angle: -3 deg
- Overall Length: 4-1/2 in
- Rake: -6 deg
- Shank Size: 3/4 in H x 3/4 in W
- Tool Holder Style: DDJNR/L
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDJNR/L Tool Holder, 4-1/2 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: DNMG 15 04 08, 1/2 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: DDJNR 12 4B, ISO Code: DDJNR 12 4B, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -7 deg inclination |
| 36.83 mm maximum overhang |
| 27 deg ramping |
| D insert shape |
| 3.9 Nm torque |
| 19.05 mm H functional |
| 25.4 mm W functional |
| 114.3 mm L functional |
