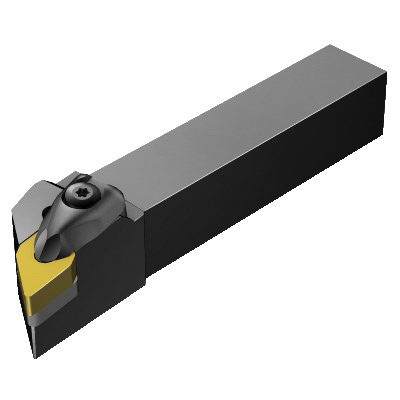

Sandvik Coromant 5731033 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 15 04 08 Insert, -3 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
288519
MFG #: 5731033
Sandvik Coromant
154.23000
/ ea
- Alternate Catalog Number: DDJNL 16 4C
- ANSI Code: DDJNL 16 4C
- Back of Bar to Cutting Edge: -3 deg
- Catalog Number: 5731033
- Country of Origin: SE
- Finish: DDJNR/L
- Gross Weight Per Pack: 1.7600 lb
- Head Length: 1/2 in
- Inscribed Circle: 1 in H x 1 in W
- Insert Seat Size: 1/2
- ISO Code: DDJNL 16 4C
- Item Group: 410
- Material: Steel
- Series: T-Max P
- Shank Type: Rectangle
- Type: DDJNL 16 4C
- UPC 11: 69826204832
- UPC 12: 69826204832
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Left Hand
- Insert Compatibility: DNMG 15 04 08
- Lead Angle: -3 deg
- Overall Length: 5 in
- Rake: -6 deg
- Shank Size: 1 in H x 1 in W
- Tool Holder Style: DDJNR/L
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDJNR/L Tool Holder, 5 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: DNMG 15 04 08, 1/2 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: DDJNL 16 4C, ISO Code: DDJNL 16 4C, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -7 deg inclination |
| 39.37 mm maximum overhang |
| 27 deg ramping |
| D insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 127 mm L functional |
