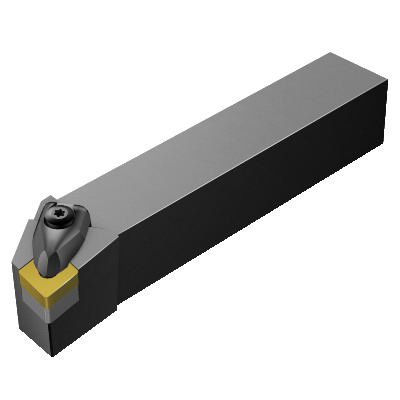

Sandvik Coromant 5730572 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 12 04 08 Insert, -5 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
79617
MFG #: 5730572
Sandvik Coromant
154.23000
/ ea
- Alternate Catalog Number: DCLNL 16 4D
- ANSI Code: DCLNL 16 4D
- Back of Bar to Cutting Edge: Rectangular
- Catalog Number: 5730572
- Country of Origin: SE
- Finish: DCLNR/L
- Gross Weight Per Pack: 2.2000 lb
- Head Length: -5 deg
- Inscribed Circle: 152.4 mm
- Insert Seat Size: 1/2
- ISO Code: DCLNL 16 4D
- Item Group: 410
- Material: Steel
- Series: T-Max P
- Shank Type: Rectangle
- Type: T-Max® P
- UPC 11: 69826200448
- UPC 12: 69826200448
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Left Hand
- Insert Compatibility: CNMG 12 04 08
- Lead Angle: -5 deg
- Overall Length: 6 in
- Rake: -6 deg
- Shank Size: 1 in H x 1 in W
- Tool Holder Style: DCLNR/L
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 12 04 08, 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNL 16 4D, ISO Code: DCLNL 16 4D, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 95 deg cutting edge |
| -6 deg inclination |
| 32 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 152.4 mm L functional |
