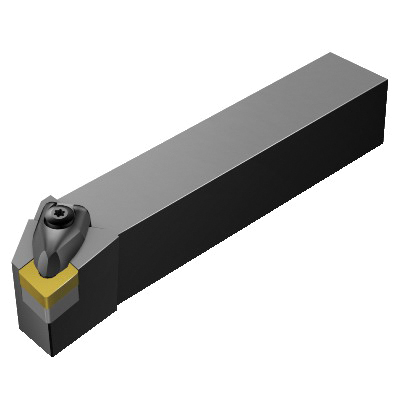

Sandvik Coromant 5730551 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 16 06 12 Insert, -5 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
298569
MFG #: 5730551
Sandvik Coromant
207.38000
/ ea
- Alternate Catalog Number: DCLNL 20 5D
- ANSI Code: DCLNL 20 5D
- Back of Bar to Cutting Edge: DCLNL 20 5D
- Catalog Number: 5730551
- Country of Origin: SE
- Finish: DCLNR/L
- Gross Weight Per Pack: 2.2000 lb
- Head Length: 5/8 in
- Inscribed Circle: CNMG 16 06 12
- Insert Seat Size: 5/8
- ISO Code: DCLNL 20 5D
- Item Group: 410
- Material: Steel
- Series: T-Max P
- Shank Type: Rectangle
- Type: Rectangular
- UPC 11: 69826204900
- UPC 12: 69826204900
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Left Hand
- Insert Compatibility: CNMG 16 06 12
- Lead Angle: -5 deg
- Overall Length: 6 in
- Rake: -6 deg
- Shank Size: 1-1/4 in H x 1-1/4 in W
- Tool Holder Style: DCLNR/L
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCLNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: CNMG 16 06 12, 5/8 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: DCLNL 20 5D, ISO Code: DCLNL 20 5D, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 95 deg cutting edge |
| -6 deg inclination |
| 39.116 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 6.4 Nm torque |
| 31.75 mm H functional |
| 38.1 mm W functional |
| 152.4 mm L functional |
