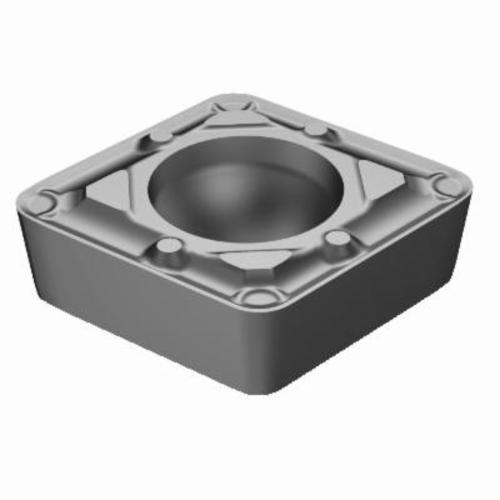

Sandvik Coromant 5723330 CoroTurn® 107 Basic Shape Positive Turning Insert, CCMT 3(2.5)0-WF 5015, C-80 deg Diamond
CCMT Turning Inserts
928517
MFG #: 5723330
Sandvik Coromant
14.53000
/ ea
- Alternate Catalog Number: CCMT 3(2.5)0-WF 5015
- ANSI Code: CCMT 3(2.5)0-WF 5015
- Catalog Number: 5723330
- Corner Radius: 0.0078 in
- Country of Origin: SE
- Finish: Uncoated
- Gross Weight Per Pack: 5.9700 lb
- Hole Diameter: 0.1732 in
- Included Angle: 80 °
- ISO Code: CCMT 09 T3 02-WF 5015
- Item Group: 120
- Relief Angle: 7 °
- Series: CoroTurn® 107
- Thickness: 0.1562 in
- UPC 11: 69826248499
- UPC 12: 69826248499
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: WF
- Cutting Direction: Neutral
- For Use On: Steel
- Inscribed Circle: 3/8 in
- Insert Size: 3(2.5)0
- Insert Style: CCMT
- Manufacturer's Grade: 5015
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut: 1.5 mm
- Rake: Positive
- Seat Size: 09
- Shape: Diamond
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCMT Insert, C-80 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.3807 in Length, WF Chipbreaker, 0.0078 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: CCMT 3(2.5)0-WF 5015, ISO Code: CCMT 09 T3 02-WF 5015, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: P
- Features
| When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.03 - 0.15 mm/r cutting feed |
| 20 life cycle state |
