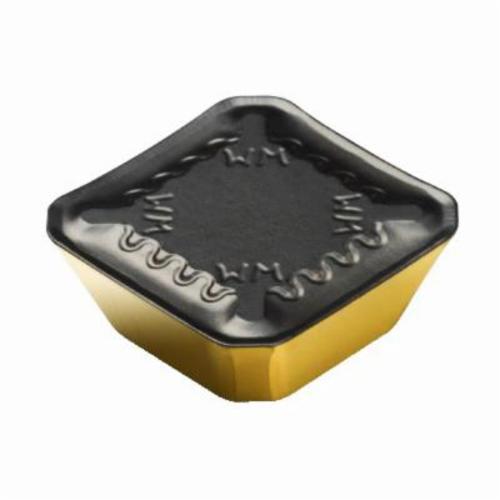

Sandvik Coromant 5749800 ModulMill Milling Insert, SEKR 12 04 AZ-WM 4240, S-Square, SEKR-WM Insert, Carbide, 4240, SEKR 12 04 AZ-WM 4240
SEKR Milling Inserts
1250077
MFG #: 5749800
Sandvik Coromant
27.09000
/ ea
- Alternate Catalog Number: SEKR 12 04 AZ-WM 4240
- ANSI Code: SEKR 12 04 AZ-WM 4240
- Catalog Number: 5749800
- Corner Radius: 0.059 in
- Country of Origin: JP
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- Hole Diameter: Carbide
- ISO Code: SEKR 12 04 AZ-WM 4240
- Item Group: 150
- Lead Angle: S - Square
- Length: 0.5275 in
- Material Application: Steel, Stainless Steel and Cast Iron
- Series: ModulMill
- Thickness: 0.1874 in
- Type: ModulMill
- UPC 11: 69826247132
- Width: 1.5 mm
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: WM
- Inscribed Circle: 1/2 in
- Insert Size: 4.76 mm
- Insert Style: SEKR-WM
- Manufacturer's Grade: 4240
- Material: Carbide
- Material Grade: K/M/P
- Rake: 15 deg
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: ModulMill, SEKR-WM Insert, S-Square, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5275 in Length, WM Chipbreaker, 0.059 in Corner Radius, 15 deg Rake, Manufacturer's Grade: 4240, ANSI Code: SEKR 12 04 AZ-WM 4240, ISO Code: SEKR 12 04 AZ-WM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 45 deg cutting edge angle |
| 20 life cycle state |
| 1.6 mm wiper edge |
| 1-side cutting |
| 0.1 to 0.28 mm/r cutting feed |
