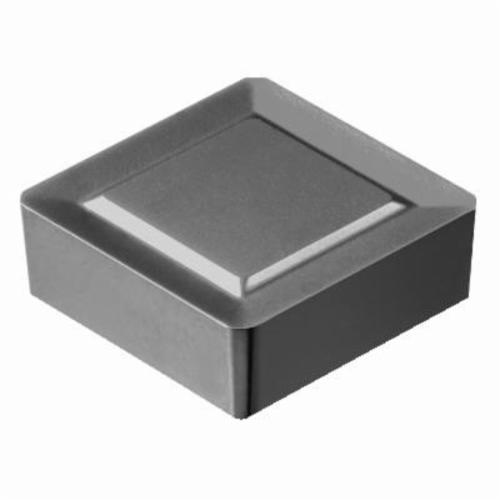

Sandvik Coromant 5748822 Auto FS Milling Insert, SBEX 12 04 ZZ-11 HM, S-Square, SBEX-11 Insert, Carbide, HM, SBEX 12 04 ZZ-11 HM
SBEX Milling Inserts
1250098
MFG #: 5748822
Sandvik Coromant
17.50000
/ ea
- ANSI Code: SBEX 12 04 ZZ-11 HM
- Catalog Number: 5748822
- Corner Radius: 0.0196 in
- Country of Origin: SE
- Finish: Uncoated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- Hole Diameter: Uncoated
- ISO Code: SBEX 12 04 ZZ-11 HM
- Lead Angle: Carbide
- Length: 1/2 in
- Material Application: Cast Iron
- Series: Auto FS
- Thickness: 0.1874 in
- Type: Auto FS
- UPC 11: 69826266318
- Width: 8 deg
- Width UOM: IN
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: SBEX 12 04 ZZ-11 HM
- Inscribed Circle: 1/2 in
- Insert Size: 12.7 mm
- Insert Style: SBEX-11
- Manufacturer's Grade: HM
- Material: Carbide
- Material Grade: K
- Rake: 8 deg
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: Auto FS, SBEX-11 Insert, S-Square, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, 0.0196 in Corner Radius, 8 deg Rake, Manufacturer's Grade: HM, ANSI Code: SBEX 12 04 ZZ-11 HM, ISO Code: SBEX 12 04 ZZ-11 HM, Neutral Hand, Carbide, Uncoated, Material Grade: K
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 90 deg cutting edge angle |
| 20 life cycle state |
| 0.7 mm wiper edge |
| 1-side cutting |
| 0.1 - 0.3 mm/r cutting feed |
