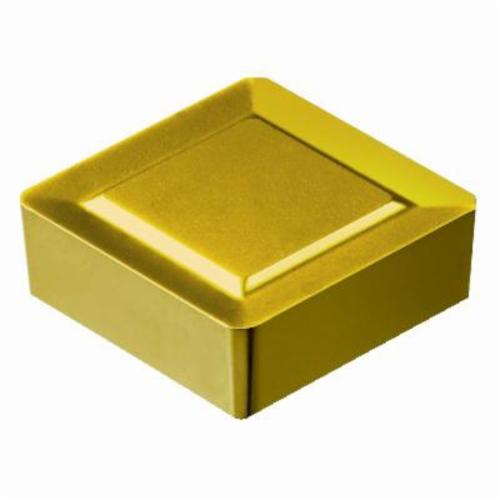

Sandvik Coromant 5748813 Auto FS Milling Insert, SBEX 12 03 ZZ-11 K15W ANSI, S-Square, SBEX-11 Insert, SBEX 12 03 ZZ-11 K15W ISO
SBEX Milling Inserts
1250108
MFG #: 5748813
Sandvik Coromant
18.93000
/ ea
- ANSI Code: SBEX 12 03 ZZ-11 K15W
- Catalog Number: 5748813
- Corner Radius: 0.0196 in
- Country of Origin: JP
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 8 deg
- Included Angle: S - Square
- ISO Code: SBEX 12 03 ZZ-11 K15W
- Lead Angle: 0.5 mm
- Length: 1/2 in
- Series: Auto FS
- Thickness: 1/8 in
- Type: SBEX 12 03 ZZ-11 K15W
- UPC 11: 69826249107
- Width: SBEX-11
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: 12.7 mm
- Inscribed Circle: 1/2 in
- Insert Size: Carbide
- Insert Style: SBEX-11
- Manufacturer's Grade: K15W
- Material: Carbide
- Material Grade: K
- Rake: 8 deg
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: Auto FS, SBEX-11 Insert, S-Square, 1/2 in Inscribed Circle, 1/8 in Thickness, 1/2 in Length, 0.0196 in Corner Radius, 8 deg Rake, Manufacturer's Grade: K15W, ANSI Code: SBEX 12 03 ZZ-11 K15W, ISO Code: SBEX 12 03 ZZ-11 K15W, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 90 deg cutting edge angle |
| 20 life cycle state |
| 0.7 mm wiper edge |
| 1-side cutting |
| 0.1 to 0.3 mm/r cutting feed |
