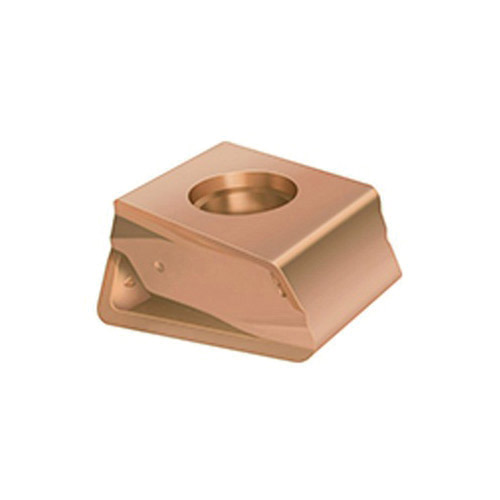

Valenite Tiger-tec® Gold 6192474 Double Sided Tangential Indexable Milling Insert, LNHU130608R-L85T WXN15 ANSI, Rhombic
LNHU Milling Inserts
PDW~10506807
MFG #: LNHU130608R-L85TWXN15
Walter (Valentine)
33.70000
/ ea
- ANSI Code: LNHU130608R-L85T WXN15
- Catalog Number: LNHU130608R-L85TWXN15
- Corner Radius: 0.8 mm
- Country of Origin: DE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Right
- Hole Diameter: 4.4 mm
- ISO Code: LNHU130608R-L85T WXN15
- Lead Angle: 0 deg
- Length: 13 mm
- Sub Brand: Tiger-tec®
- Thickness: 6.8 mm
- Type: Double Sided Tangential
- Width: 12 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: L85T
- Insert Style: Tiger?tec®
- Manufacturer's Grade: WXN15
- Material: Carbide
- Material Grade: N
- Rake: 28 deg
- Shape: Rhombic
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
- Features
| +/-0.013 mm cutting edge tolerance |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 2.2 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
