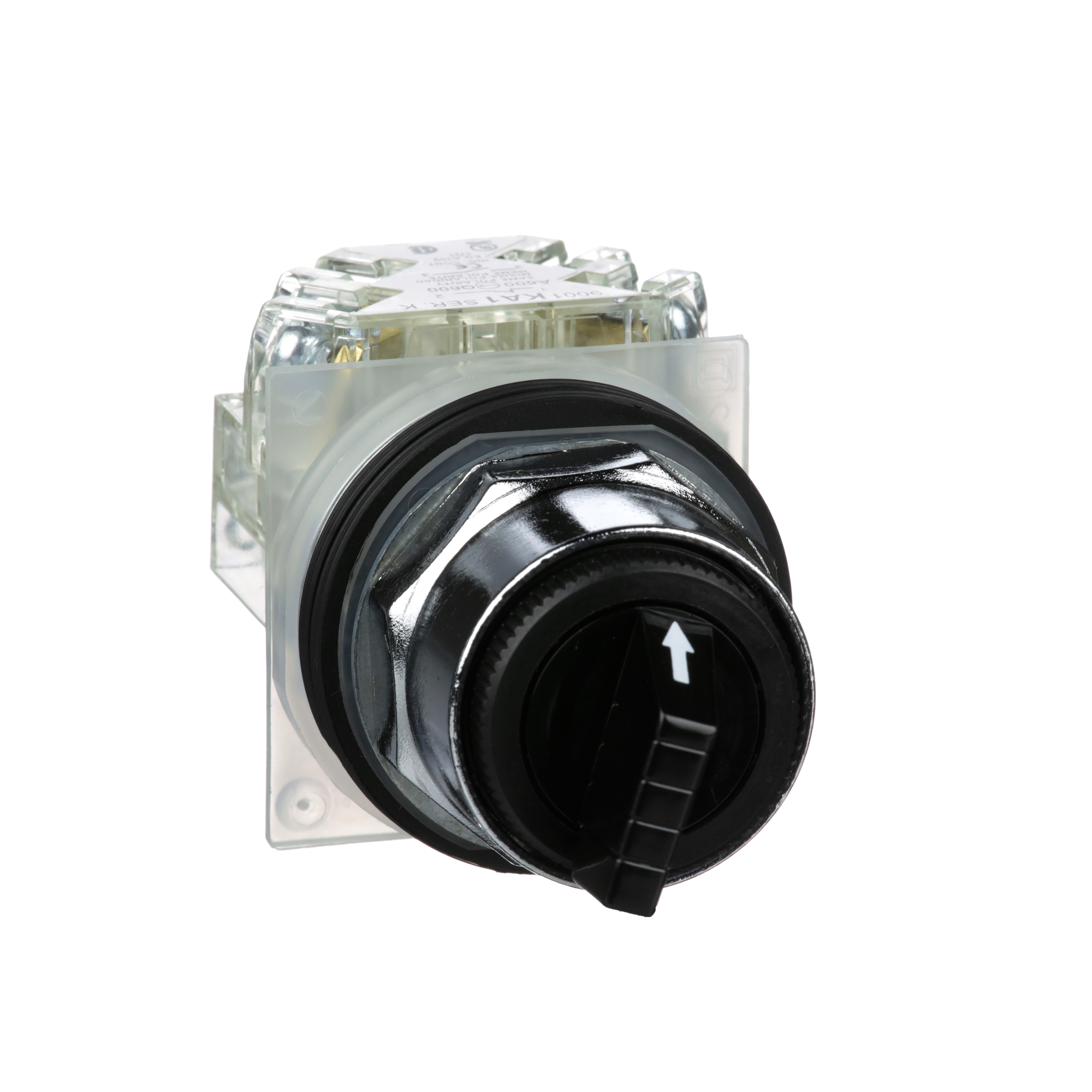

Schneider Electric Harmony™ 9001KS43BH13 Non-Illuminated Selector Switch, 30 mm, 1NO-1NC, Round Knob Operator, Black
Non-Illuminated Selector Switches
99744
MFG #: 9001KS43BH13
Square D™
106.00000
/ ea
- Action: STAY PUT
- Actuator: Black standard knob; stay put;3 positions
- Alternate Catalog Number: 9001KS43BH13
- Amperage Rating: 10 A
- Application: 9001KA1 side 2
- ARRA Compliant: N
- Bezel|Housing: Chromium Plated Metal
- Buy American Compliant: N
- Cam Code: C
- Catalog Number: 9001KS43BH13
- Connection: SCREW-CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1
- Connection Type: Screw Clamp
- Contact Mode: Maintained
- Contact Rating: AC15 - DC13
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 1/2/3/3R/4/6/12/13
- Enclosure Type: NEMA 1/2/3/3R/4/6/12/13
- Environmental Conditions: WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.3300 lb
- Gross Weight per Pack Metric: 141.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509025
- Height: 1.91 in
- Height [Metric]: 4.9000 cm
- Indicator: BLACK
- Item Group: 21426
- Length: 3.67 in
- Length [Metric]: 9.4000 cm
- Material: Chromium plated metal
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=479045&lang=en-us
- Mounting: Panel
- Mounting Type: Panel
- Number of Positions: 3
- Returnable: Y
- Series: 9001K
- Standard: CE-CSA LR24590 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR
- Standards: CE Marked, CSA Class 3211-03 File No. LR24590 Certified, UL File No. E42259 Listed
- Sub Brand: K
- Substitute Product Catalog Number: 9001KA3
- Throw: 70 deg Left-Center-Right
- Type: Heavy Duty
- UNSPSC: 39122216
- UPC 11: 78590182133
- UPC 12: 785901821335
- Voltage Rating: 600 V
- Warranty Description: Contractual Warranty:18 months
- Width: 2.89 in
- Width [Metric]: 7.4000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Square D™
- Manufacturer: Schneider Electric
- Color: Black
- Contact Configuration: 1NO-1NC
- Operator Type: Round Knob/Stay Put
- Size: 1.18 in
Schneider Electric 9001KS43BH13 SELECTOR SWITCH 600VAC 10A 30MM T-K,1 NO - 1 NC,10A,30mm Round,600V,AC15 - DC13,Black,K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Selector Switch,Standard Knob,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,maintained,non illuminated push-button
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8046016360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=9001KS43BH13(3D Rendering URL)
- Brochure URL - 11003_8QOJYL9EPK6C5SGW.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_12298800a20ab14d251012dfd03b272c64e6f12448248e11314caf8654fb215f.pdf(Catalog URL)
- Compliance Cert URL - Square_D_9001KS43BH13_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001KS43BH13_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_VET8B5MJQ6WLZANF.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_ZMWI094FAHS23REG.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_OSB1MFAW9Q54ZJL2.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_XM5C4B0SJFHGZWP7.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/za0gVi-W-TM(Video)
- Applications
- Features
| 9001KA1 side 2 |
| CHROMIUM PLATED METAL,SELECTOR SWITCH |
| 10A Amperage Rating |
| Chromium plated bezel |
| Water tight, dust tight and oil tight (indoor/outdoor) enclosure |
| Silver alloy contact |
