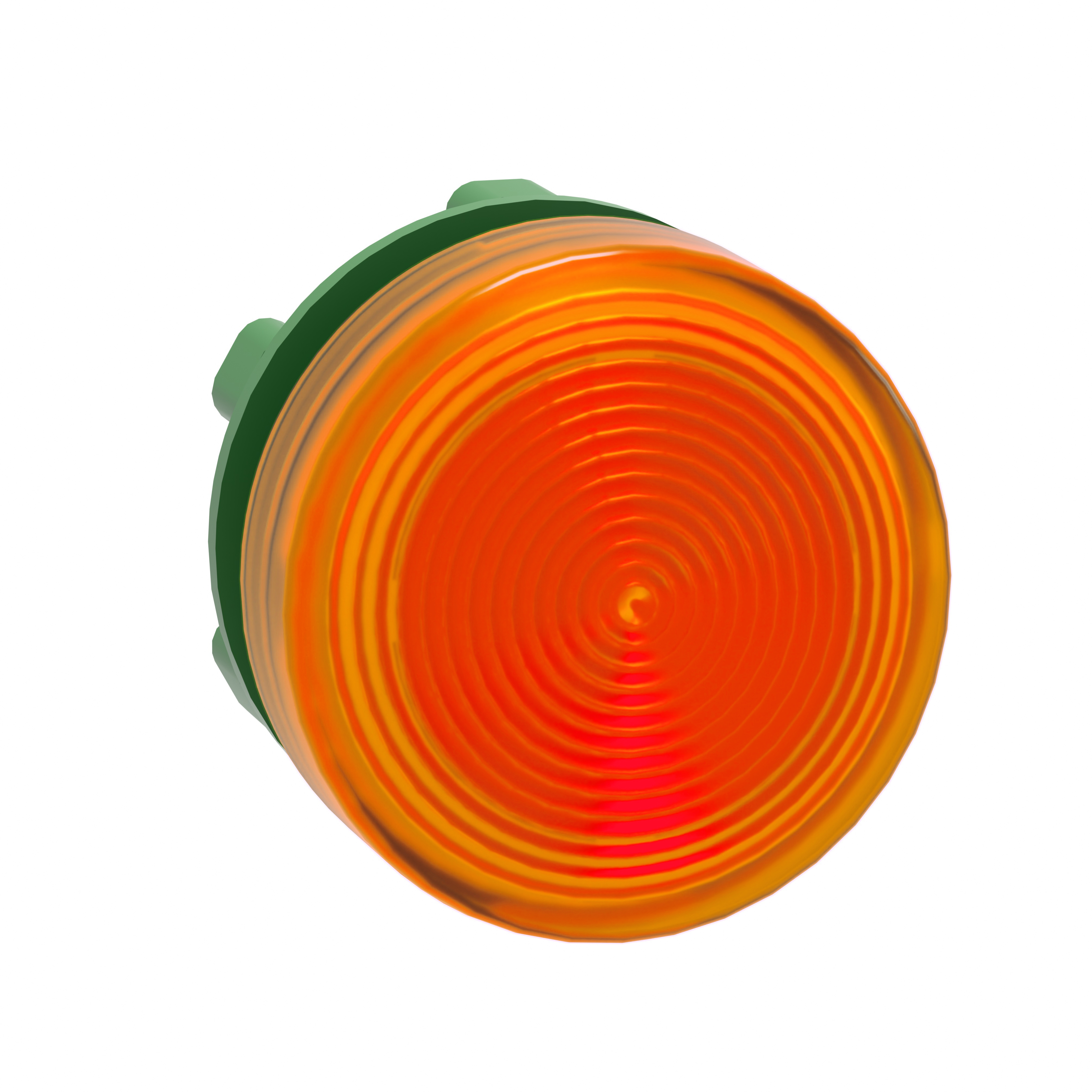

Schneider Electric ZB5 Pilot Light Head, 22 mm, Round, Orange
Pilot Light Operators
275228
MFG #: ZB5AV053S
Schneider Electric
7.60000
/ ea
- Alternate Catalog Number: ZB5AV053S
- Application: Integral LED
- ARRA Compliant: N
- Bezel|Housing: Plastic
- Buy American Compliant: N
- Catalog Number: ZB5AV053S
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 13-NEMA 4X
- Enclosure Type: NEMA 1/2/3/4/4X/13/IP65
- Environmental Conditions: High ambient lighting environment
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 5.54
- Gross Volume per Pack Metric: 90.78
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.0400 lb
- Gross Weight per Pack Metric: 16.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8531909001
- Height: 1.25 in
- Height [Metric]: 3.2000 cm
- Indicator: ORANGE,YELLOW
- Item Group: 22467
- Lamp Type: LED
- Length: 1.95 in
- Length [Metric]: 5.0000 cm
- Material: Dark grey plastic
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=654964&lang=en-us
- Operating Temperature: -40-70 A°C
- Returnable: N
- Series: ZB5
- Sub Brand: ZB5
- Temperature Rating: -40 to 158 °F
- Type: Round
- UNSPSC: 39122216
- UPC 11: 78590185577
- UPC 12: 785901855774
- Warranty Description: Contractual Warranty:18 months
- Width: 1.56 in
- Width [Metric]: 4.0000 cm
- Stock Status: NONSTOCK
- Brand: Schneider Electric
- Manufacturer: Schneider Electric
- Color: Orange/Yellow
- Size: 22 mm
Schneider Electric ZB5AV053S 22MM LED PILOT LIGHT YELLOW FRESNEL LENS,22 mm,pilot light,Harmony XB5,IP 65,NEMA 1/2/3/4/4X/13,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,head for pilot light,head for pilot light,plastic,orange,yellow,pilot light
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9135798360Den&ext=webp(360 Degree View URL)
- Brochure URL - 367821b6e17e285aa4e1b93b6f928e30aec38cbd.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_65fe95c83387e8d9f1c878e9f76c3e99d9b4728a8b30da70b2afddf405a80b2e.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZB5AV053S_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_VD4QFZ26N5SYLJXW.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_UYNQ5ZCO8T23K60R.pdf(Service Manual URL)
- Spec Sheet URL - 11003_SH4JM6072P58YVCD.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_8X65IEGLJAWRZ29D.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_X98UCI5RPVTYBSD0.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/6sW9Z3A8tM0(Video)
- Applications
- Features
| Integral LED |
| WITH GROOVED LENS |
| 5 gn (2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance, 30 gn (18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance |
| NEMA 1/2/3/4/4X/13 enclosure rating |
| IP65/IP66/IP67 conforming to IEC 60529 degree of protection |
| Plastic bezel |
| -40 to 158 deg F operating temperature |
