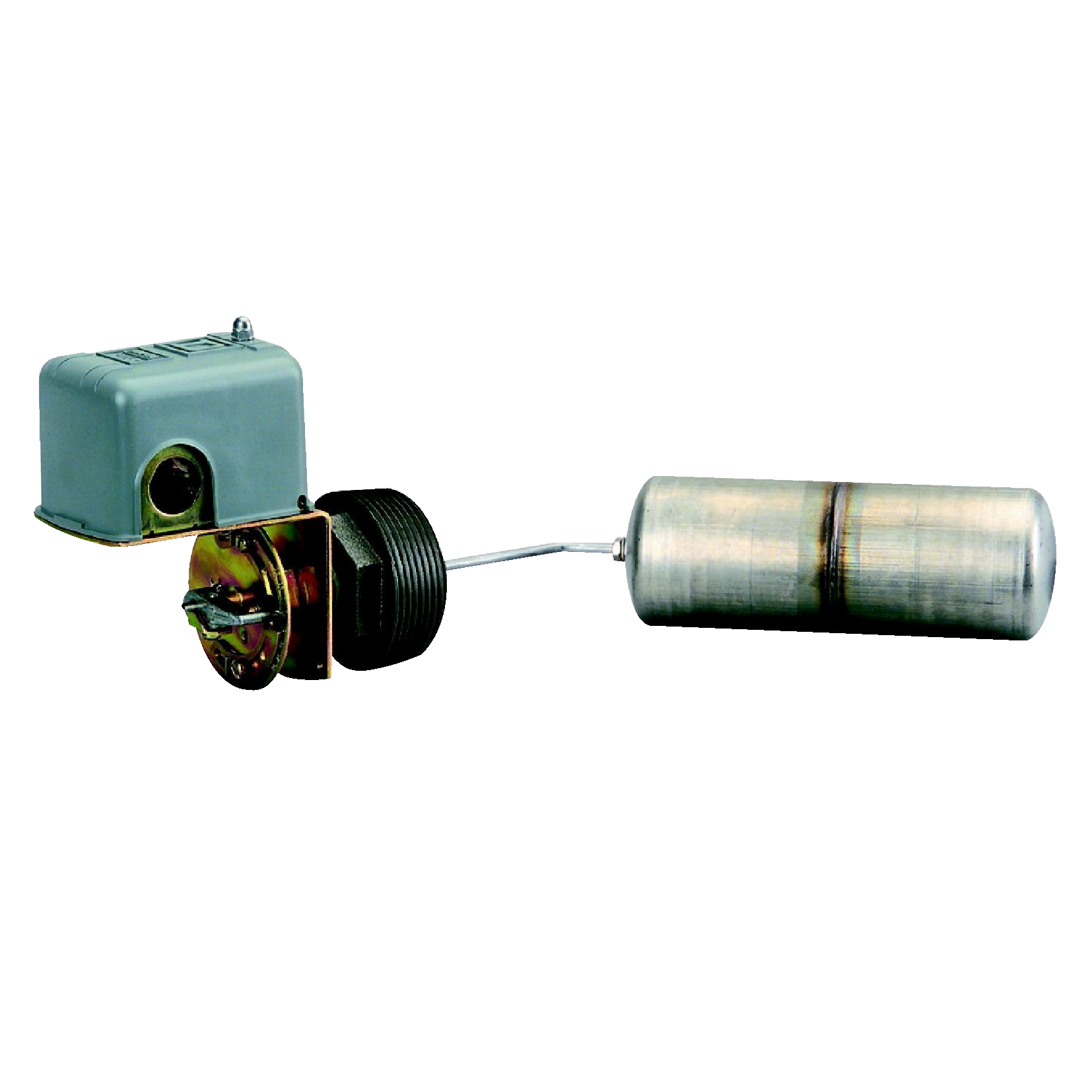

Telemecanique 9037HG37 Level Control Float Switch, 575 VAC
Liquid Level Sensors/Float Switches
96345
MFG #: 9037HG37
Telemecanique Sensors
179.67000
/ ea
- Action: Contacts close on liquid rise
- Alternate Catalog Number: 9037HG37
- Application: Liquid level control;Power circuit;Closed tank;For closed tank
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 9037HG37
- Connection: 4 TERMINALS,SCREW-CLAMP TERMINALS 10 AWG
- Contact: DPST
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 1
- EU RoHS Indicator: Y
- Float: 3.75...7 IN ADJUSTABLE
- Gross Volume Per Pack: 621.62
- Gross Volume per Pack Metric: 10186.50
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 4.2500 lb
- Gross Weight per Pack Metric: 1.93
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 9032896060
- Height: 7.64 in
- Height [Metric]: 19.6000 cm
- Input: 575 VAC
- Item Group: 21601
- Length: 11.58 in
- Length [Metric]: 29.7000 cm
- Material: Polypropylene
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=394605&lang=en-us
- Mounting: SCREW-IN BUSHING
- Process Fluid: FRESH WATER SPECIFIC GRAVITY OF 0.85 IN OR HIGHER 0-220 A°F-SEA WATER SPECIFIC GRAVITY OF 0.85 IN OR HIGHER 0-220 A°F-HYDRAULIC OIL SPECIFIC GRAVITY OF 0.85 IN OR HIGHER 0-220 A°F-CORROSIVE FLUID SPECIFIC GRAVITY OF 0.85 IN OR HIGHER 0-220 A°F
- Returnable: Y
- Series: 9037
- Standard: CSA FILE LR25490-UL LISTED FILE E12158,NEMA 1 UL 50,UL 508-CE
- Sub Brand: 9037H
- Substitute Product Catalog Number: 9049HF3
- Temperature Rating: -22 to 220 °F
- Type: Adjustable Closed Tank Level Control
- UNSPSC: 39122219
- UPC 11: 78590107554
- UPC 12: 785901075547
- Warranty Description: Contractual Warranty:18 months
- Width: 6.94 in
- Width [Metric]: 17.8000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Voltage Rating: 575 VAC
Telemecanique 9037HG37 FLOAT SWITCH 575VAC 1HP H +OPTIONS,-22...220 deg.F,2...7 in adjustable,575VAC,DPST,NEMA 1,Screw Clamp,Standard (Contacts Close on Liquid Rise),closed tank,float switch,liquid level control,screw-in bushing
- Brochure URL - 12dfd2a4ef8e22cc82e8869280f8fa82a07f594b.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_ZC3X4URVSJAKDBH6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_CN8RVX013QY6IDJE.pdf(Service Manual URL)
- Service Manual URL - 11003_CPJTB8F0X1VINW4H.pdf(Service Manual URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_GOH9SIW34RCM0EUQ.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/lB52Ebj_53k(Video)
- Applications
- Features
| Liquid level control;Power circuit;Closed tank;For closed tank |
| 20 A CARTRIDGE FUSE GG,SET OF 1,WITHOUT |
| 2NC DPST contacts |
| Three knockouts for 1/2 in conduit UL 508 cable entry number |
| Contacts close on liquid rise contact operation |
| 100 cycles at 60 cycles/min electrical durability |
| 300 cycles mechanical durability |
| 4-terminal, 60 cycles/min operating rate |
| Yellow brass, nitrile (Buna-N) or equivalent rubber, 304/316 stainless steel, cast iron material in contacts with fluid |
| 1 hp power rating |
| Screw-in bushing mounting |
| NEMA 1 enclosure |
| 3-3/4 to 7 in sensing range |
| Screw clamp connection |
