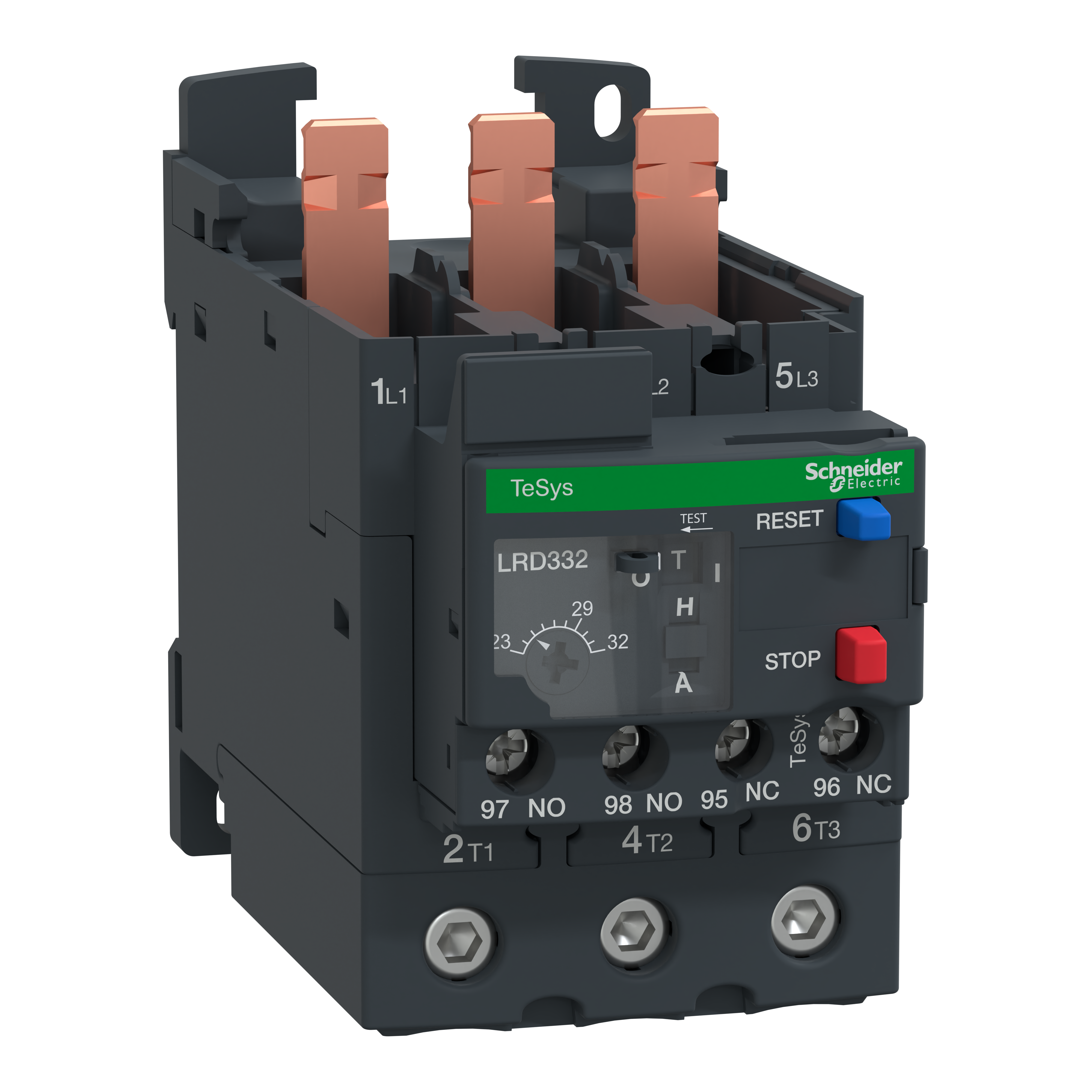

Schneider Electric LRD332 TeSys™ D-Line Thermal Overload Relay, 23 to 28 A, 1NO-1NC Contact Form
Overload Relays
506861
MFG #: LRD332
Schneider Electric
107.00000
/ ea
- Alternate Catalog Number: LRD332
- Application: Motor protection;LC1D40A;LC1D65A;LC1D50A
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: LRD332
- Contact Configuration: 1 NO + 1 NC
- Contact Rating: 28 A at 690 VAC
- Country of Origin: US
- Currency: USD
- Dimensions: 123 mm H x 55 mm W x 123 mm D
- Enclosure Type: IP20
- EU RoHS Indicator: Y
- Frequency Rating: 0 to 400 Hz
- Full Load Current Range: 23 to 32 A
- Gross Volume Per Pack: 61.49
- Gross Volume per Pack Metric: 1007.64
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.8600 lb
- Gross Weight per Pack Metric: 393.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536490075
- Height: 2.54 in
- Height [Metric]: 6.5000 cm
- Insulation: POWER CIRCUIT 600 V CSA-POWER CIRCUIT 600 V UL-POWER CIRCUIT 690 V IEC 60947-4-1
- Item Group: 22347
- Length: 5.38 in
- Length [Metric]: 13.8000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6969240&lang=en-us
- Maximum Motor Voltage: 600VAC
- Mounting: DIRECT
- Mounting Type: Contactor
- Number Of Poles: 3
- Operating Temperature: -20C TO 60C WITHOUT DERATING
- Reset Type: MANUAL OR AUTO
- Returnable: Y
- Series: TeSys™ D-Line
- Size: 4.84 in
- Standard: UL, CSA
- Standards: ATEX 94/9/CE MarkedCSA C22-2 No. 14 CertifiedEN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1 RatedRoHS CompliantUL 508 Listed
- Sub Brand: TESYS LRD
- Substitute Product Catalog Number: XB5AA86102
- Temperature Rating: -20 to 60 °C
- Temperature Trip Range: 23…32 A
- Terminal Type: Clamp/Threaded
- Trip Type: THERMAL - AMBIENT COMPENSATED BI-METALLIC/DIFFERENTIAL CLASS 10 WITH SINGLE PHASE SENS.
- Type: Differential thermal overload relay
- UNSPSC: 39122330
- UPC 11: 78590181164
- UPC 12: 785901811640
- Warranty Description: Contractual Warranty:18 months
- Width: 4.06 in
- Width [Metric]: 10.4000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Schneider Electric
- Manufacturer: Schneider Electric
Schneider Electric LRD332 23-32A Class 10 OLR w/ Everlink Power Terminal,-20C to 60C without derating,10A control circutry,1NO and 1NC,23-32A,23A to 32A,3,600VAC,D40A-D65A,Direct,IEC Bimetal Overload relay, Class 10 with single phase sensitivity 23-32A,Manual or Auto,Overload Relay,TeSys,TeSys D contactors or Standalone.,Thermal - Ambient Compensated Bi-Metallic/Differential Class 10 with Single Phase Sens.,UL, CSA
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=10660428360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=LRD332(3D Rendering URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_LRD05_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Schneider_Electric_LRD05_Catalog.pdf(Catalog URL)
- Compliance Cert URL - Schneider_Electric_LRD332_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_KCR4TNW1U3Y8JFPE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_50KO7LGQ68SR1PYU.pdf(Service Manual URL)
- Service Manual URL - 11003_KOLRNWE7USIAZ24Y.pdf(Service Manual URL)
- Spec Sheet URL - 11003_PEQTB4GY16RDXMJ9.pdf(Spec Sheet URL)
- Tech Drawing URL - sales?sn=LRD332(Tech Drawing URL)
- User Manual URL - 11003_4MXOF1NY9KUP285W.pdf(User Manual URL)
- User Manual URL - 11003_6R253TVSB9XPYFM4.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/tr9ayeSDB80(Video)
- Applications
- Features
| Motor protection;LC1D40A;LC1D65A;LC1D50A |
| IEC BIMETAL OVERLOAD RELAY, CLASS 10 WITH SINGLE PHASE SENSITIVITY 23-32A |
| Ambient compensated |
| Bi-metallic/differential trip |
| Trip class 10 with single phase sensitivity |
| Direct on under contactor mounting, plate with specific accessories, rail with specific accessories |
| 23 - 28 A |
