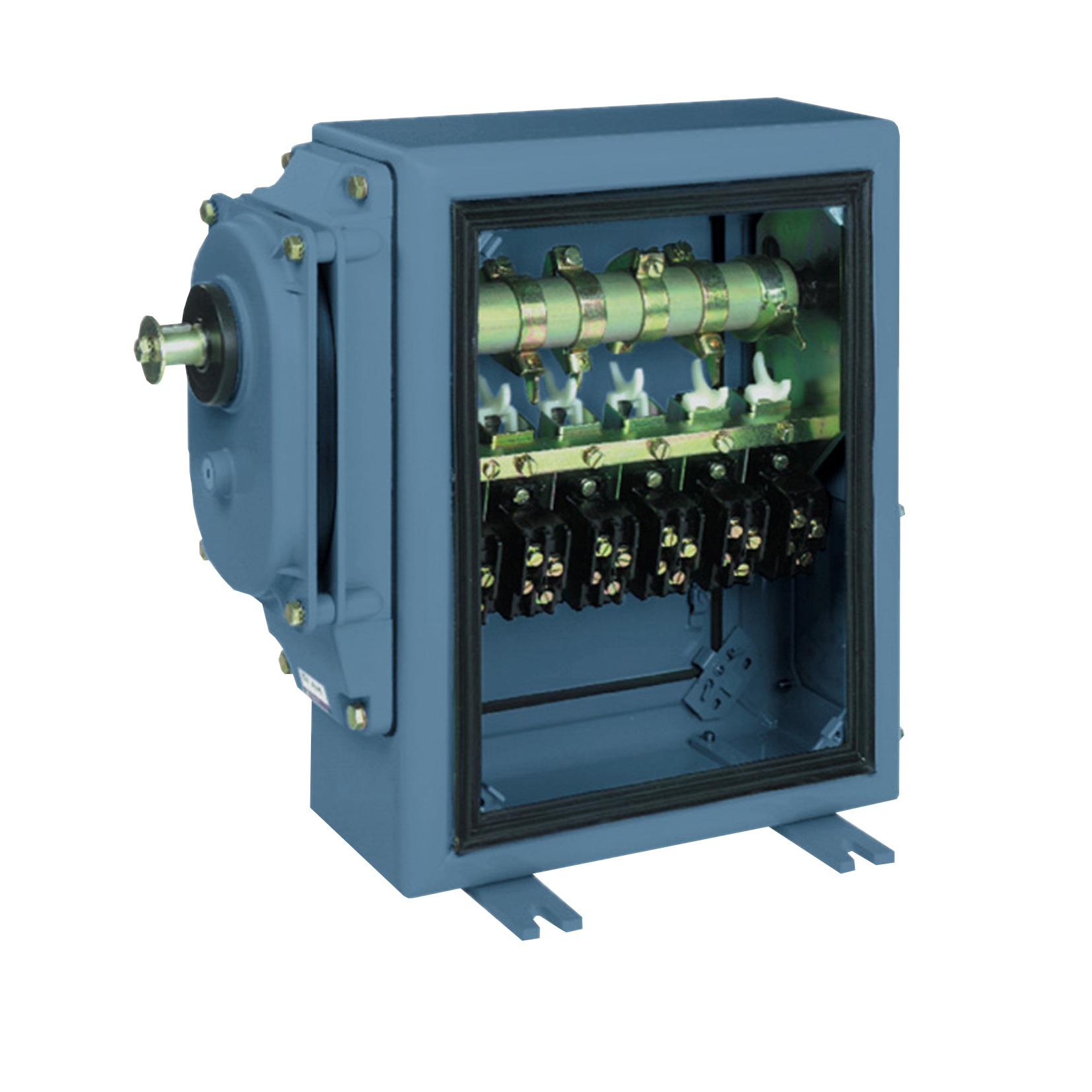

Schneider Electric Square D™ OsiSense® XC XR2AB06K04 Heavy Duty 1-Stage Limit Switch, 240 VAC, 10 A, Drive Shaft/End Fittings With Sprocket Key and Washer Actuator, 6C/O Contact, 1 Poles

Specialty Limit Switches
PDW~13033577 MFG #: XR2AB06K04
Square D™
7561.00000 / ea
files-p_Doc_Ref-PF150008-p_File_Type-rendition_4000_png
  • Action: Snap action
  • Application: LIQUID LEVEL CONTROL IN PUMPING SYSTEMS-POSITION CONTROL OF MOVING PARTS OF HOISTING OR MATERIALS HANDLING EQUIPMENT
  • ARRA Compliant: C
  • Buy American Compliant: C
  • Catalog Number: XR2AB06K04
  • Connection: SCREW CLAMP TERMINALS, 2 X 1.5 MMA² WITH OR WITHOUT CABLE END-SCREW CLAMP TERMINALS, 2 X 2.5 MMA² WITHOUT CABLE END
  • Country of Origin: FR
  • Currency: USD
  • EU RoHS Indicator: N
  • Gross Weight Per Pack: 37.4200 lb
  • Gross Weight per Pack Metric: 16.97
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 8538908180
  • Operating Temperature: -25-70 A°C
  • Returnable: N
  • Size: REMOVABLE GLAND PLATE
  • Standard: 50 GN 11 MS,> 5 GN 10-55 HZ),EN/IEC 60947-5-1,IP54 EN/IEC 60529
  • Sub Brand: XR2
  • Type: SINGLE-STAGE HEAVY DUTY SCREW LIMIT SWITCH
  • UNSPSC: 39122213
  • Brand: Square D™
  • Manufacturer: Schneider Electric
  • Actuator: DRIVE SHAFT, END FITTINGS WITH SPROCKET KEY AND WASHER
  • Contact Configuration: 6 C/O
Schneider Electric Square D™ OsiSense® XC Limit Switch, Heavy Duty 1-Stage, Series: XR2 Series, 240 VAC, 10 A, 6C/O Contact Configuration, 1 Pole, 25 MOhm Closed Contact Resistance, Snap Action, Drive Shaft/End Fittings With Sprocket Key and Washer Actuator, 2 x 1.5 sq-mm/2 x 2.5 sq-mm Screw Clamp Terminal Connection, IP54 Enclosure, 10000000 cycles Electrical/10000000 cycles Mechanical Operating Cycles, -25 to 70 deg C Operating, Sheet Steel, Environmental Conditions: -40 to 70 deg C Storage
QTY
Add to Wishlist
  • Applications
  • Features
LIQUID LEVEL CONTROL IN PUMPING SYSTEMS-POSITION CONTROL OF MOVING PARTS OF HOISTING OR MATERIALS HANDLING EQUIPMENT
IP54 CONFORMING TO EN/IEC 60529,LIQUID LEVEL CONTROL IN PUMPING SYSTEMS-POSITION CONTROL OF MOVING PARTS OF HOISTING OR MATERIALS HANDLING EQUIPMENT,SHEET STEEL (ENCLOSURE)
