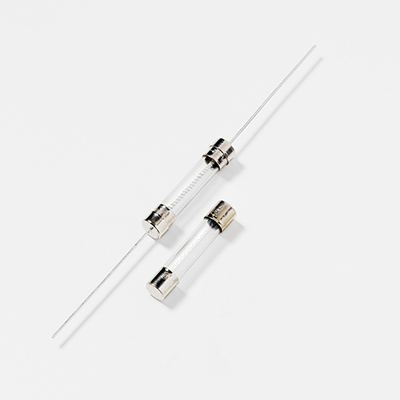

Littelfuse® 313005P POWR-GARD® Slo-Blo® 313 Time Delay Cartridge Fuse, 5 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Power Fuse
408234
MFG #: 313005P
Littelfuse®
2.30000
/ ea
- Alternate Catalog Number: 0313005.VXP
- Application: TVSS
- ARRA Compliant: N
- Body Size: 1/4 in Dia x 1-1/4 in L
- Body Type: Cartridge
- Buy American Compliant: N
- Catalog Number: 313005P
- Country of Origin: CA
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 1 lb
- Harmonization Tariff Schedule Code: 8536100020
- Indicating|Non~Indicating: Non-Indicating
- Item Group: 079458-AB
- Material: Glass
- Mounting Type: Holder
- Response Time: 4 hr, 1 hr, 5 to 30 s
- Series: 313
- Standard: UL Recognized
- Standards: RoHS CompliantUL 248-12UL File No. E10480CSA 29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
- Sub Brand: POWR-GARD
- Terminal Type: Ferrule
- Type: Surge Supp
- UNSPSC: 39121627
- UPC 11: 07945892308
- UPC 12: 079458923087
- Stock Status: NORMALLY STOCKED
- Brand: Littelfuse®
- Manufacturer: Littelfuse Inc.
- Amperage Rating: 15 A
- Interrupt Rating: 10 kA
- Voltage Rating: 250 VAC
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_918605dbe7228113126776135dc7d280b6fe21f7baa1c0ff0d2cd456064fe100.pdf(Catalog URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - 11468_AX8U4VEQYISW2KOH.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11468_6UK2DTYNPVGM8REW.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11468_AJESQ7D3G52XW0UH.pdf(Tech Drawing URL)
- Applications
- Features
| TVSS |
| Current-limiting |
| Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids |
| 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies |
| Guesswork and time consuming circuit testing is eliminated |
| Unique design offers the same quality performance characteristics as the standard 3AG fuse design |
| Lead free |
| Nickel-plated brass cap |
| -55 to 125 deg C operating temperature |
| 10 kA at 125 VAC interrupting rating |
| 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time |
| 0.0214 ohms nominal cold resistance |
| 276 I2T (A2 sec) nominal melting |
