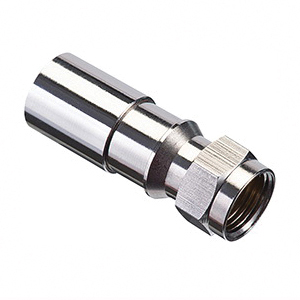

Ideal® 92-656 RTQ XR RG-6 F Compression Connector -100 pk
Coaxial Connectors
513251
MFG #: 92-656
IDEAL®
116.92000
/ ea
- Application: Termination of an F Type connection , compression style ,RG6
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 92-656
- Country of Origin: CHN
- Currency: USD
- EU RoHS Indicator: Y
- Finish: Nickel
- Gross Volume Per Pack: 42.75
- Gross Volume per Pack Metric: 700.55
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 2.1000 lb
- Gross Weight per Pack Metric: 0.86
- Gross Weight UOM Metric: kg
- Height: 3.00 in
- Height [Metric]: 7.6200 cm
- Impedance: 75 Ohm
- Length: 4.75 in
- Length [Metric]: 12.0650 cm
- Material: Brass
- Material Composition Declaration: https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
- Series: F-Type
- Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
- Sub Brand: RTQ
- Type: F-Type
- UNSPSC: 39121414
- UPC 11: 78325092656
- UPC 12: 783250926565
- Width: 3.00 in
- Width [Metric]: 7.6200 cm
- Stock Status: NONSTOCK
- Brand: IDEAL®
- Manufacturer: Ideal Industries
- Cable Type: RG-6
- Connection Type: RTQ
- Frequency Rating: Nickel Plated
- Termination Type: Brass
The new TLC™ (Tool-Less Compression) RG-6 F compression connector is our simplest, fastest and lowest total cost solution for installing compression connectors. Designed to save the installer Time, Labor, and Cost when installing indoor RG-6 F-Type connections no compression tool is required to terminate these connectors.
- Brochure URL - 11020_4OPCSGQH5JY0ZN6T.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_09b6a61304b51559dd0131bdaaeac510d872011e6b648aaed391ac5a9e1fc16b.pdf(Catalog URL)
- http://www.idealindustries.com(Seller Home Page URL)
- Spec Sheet URL - IDELINE00564_G19.pdf(Spec Sheet URL)
- Warranty URL - IDEAL_84_018_Warranty.pdf(Warranty URL)
- Applications
- Features
| Termination of an F Type connection , compression style ,RG6 |
| Features: Fits 60 PCT Reg/Tri/Quad Cable; Nickel-Plated, Brass-Construction For Superior Corrosion Resistance; Approved For Use By Satellite And Cable TV Companies; Approved For Indoor And Outdoor Use; Use 30-603, 30-793 Or 30-633 Compression Tools; Overall Jacket Diameter: 0.260 - 0.305 IN; Coaxial Cable Type: RG-6 Reg/Tri/Quad; Dielectric Diameter: 0.175 - 0.183 IN |
| Fits 60% regular/tri/quad cables |
| Nickel plated brass construction for superior corrosion resistance |
| Approved for use by satellite and cable TV companies |
| Use 30-603, 30-793 or 30-633 compression tools |
| Nickel-plated, brass-construction for superior corrosion-resistance |
| 0.26 - 0.305 in diameter overall jacket |
| 0.175 - 0.183 in diameter dielectric |
| TLC™ series connectors feature a sliding post design to capture and secure the cable inside of the connector |
| After the cable is inserted, tightening the connector to the device completes assembly process, creating a 360 deg compression point and a permanent connection |
| These connectors are designed for applications from 5MHz to 3GHz including CATV and satellite |
| RG-6 RTQ™ cable |
