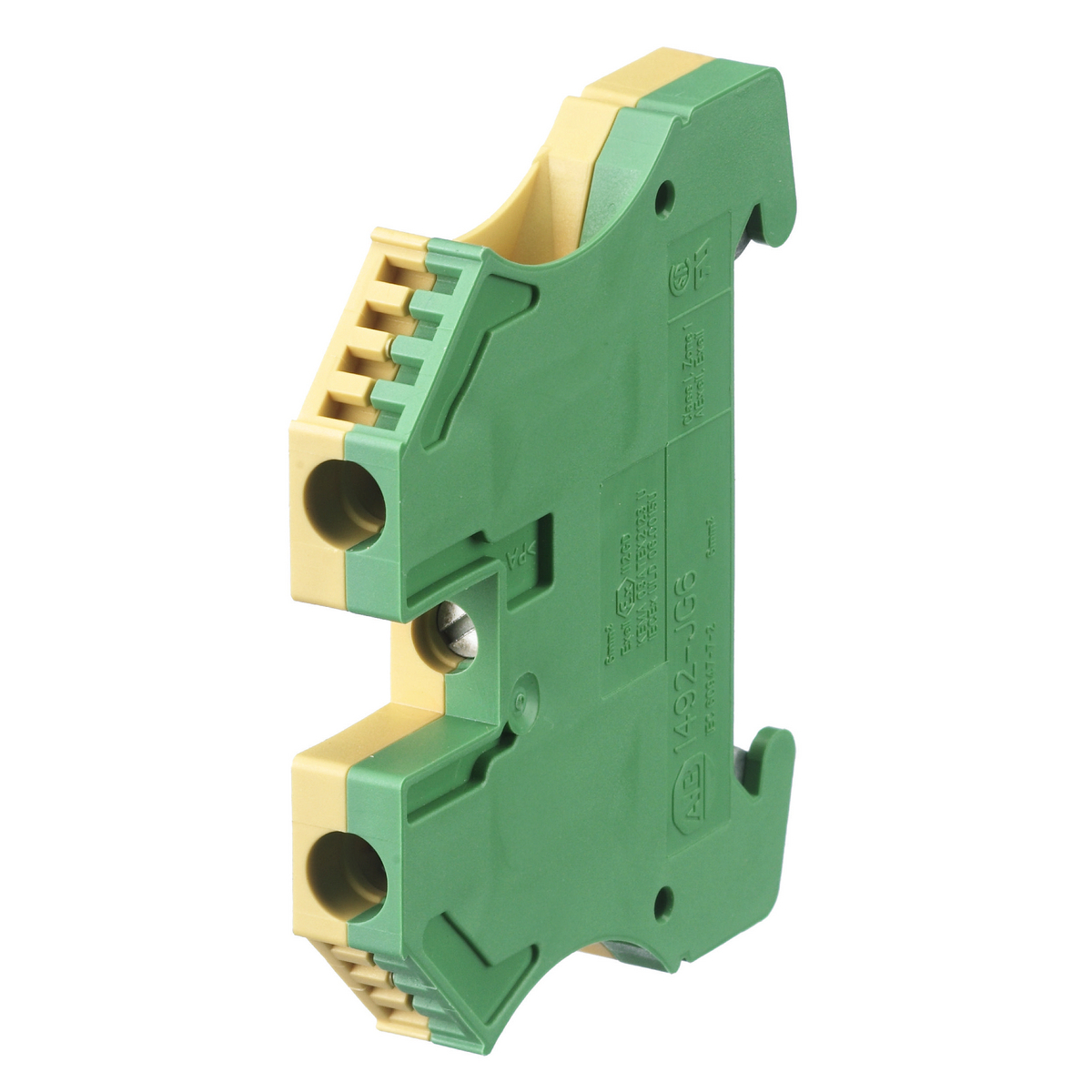

GROUND BUSS, 60A & 100A
Safety/Disconnect Miscellaneous Access.
315238
MFG #: HBL60100RGB
Hubbell Wiring Device-Kellems
29.46000
/ ea
- Application: For 60 and 100A HBLDS Series
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBL60100RGB
- Connection: Terminal Screws
- Country of Origin: CN
- Currency: USD
- Environmental Conditions: Indoor Dry unless protected by additional means
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.2000 lb
- Gross Weight per Pack Metric: 0.09
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536509065
- Height: 1.54 in
- Height [Metric]: 3.9116 cm
- Length: 2.42 in
- Length [Metric]: 6.1468 cm
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
- Returnable: Y
- Size: Standard Sized
- Standard: UL Listed
- Standards: ARRA CompliantBuy American Act CompliantUL 746CUL 94-5-VA Flammability RatingCSA Certified
- Sub Brand: Circuit-Lock
- Type: Accessories
- UNSPSC: 39122205
- UPC 11: 78358595516
- UPC 12: 78358595516
- Width: 2.42 in
- Width [Metric]: 6.1468 cm
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Material: Composite
- Specifications: -40 to 67 deg C, Terminal Screw Connection
- Suitable For Use With: Circuit-Lock® HBLDS Series 60 and 100 A Motor Disconnect Switch
Hubbell® Replacement Ground Block, For Use With: 60/100A Switches
- Catalog URL - Wiring_Device_Kellems_HBL60RNB_Brochure.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Spec Sheet 1 URL - HUBBELL_HBL100RNB_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11456_8965271-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - 8965271-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL60100RGB_spec.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| For 60 and 100A HBLDS Series |
| Standard Product |
| -40 to 75 deg C operating temperature |
| Certified for current interrupting at full rated current |
| Withstands 3000 VAC dielectric voltage |
| 600 VAC RMS maximum working voltage |
| In accordance with UL746C impact-resistance |
| Identification and ratings are a part of the external label and molded into the receptacle mount |
| Terminals identified in accordance with North American and international conventions |
| UL94-5VA and V-0 classification flammability |
| IP67 suitability ingress protection |
