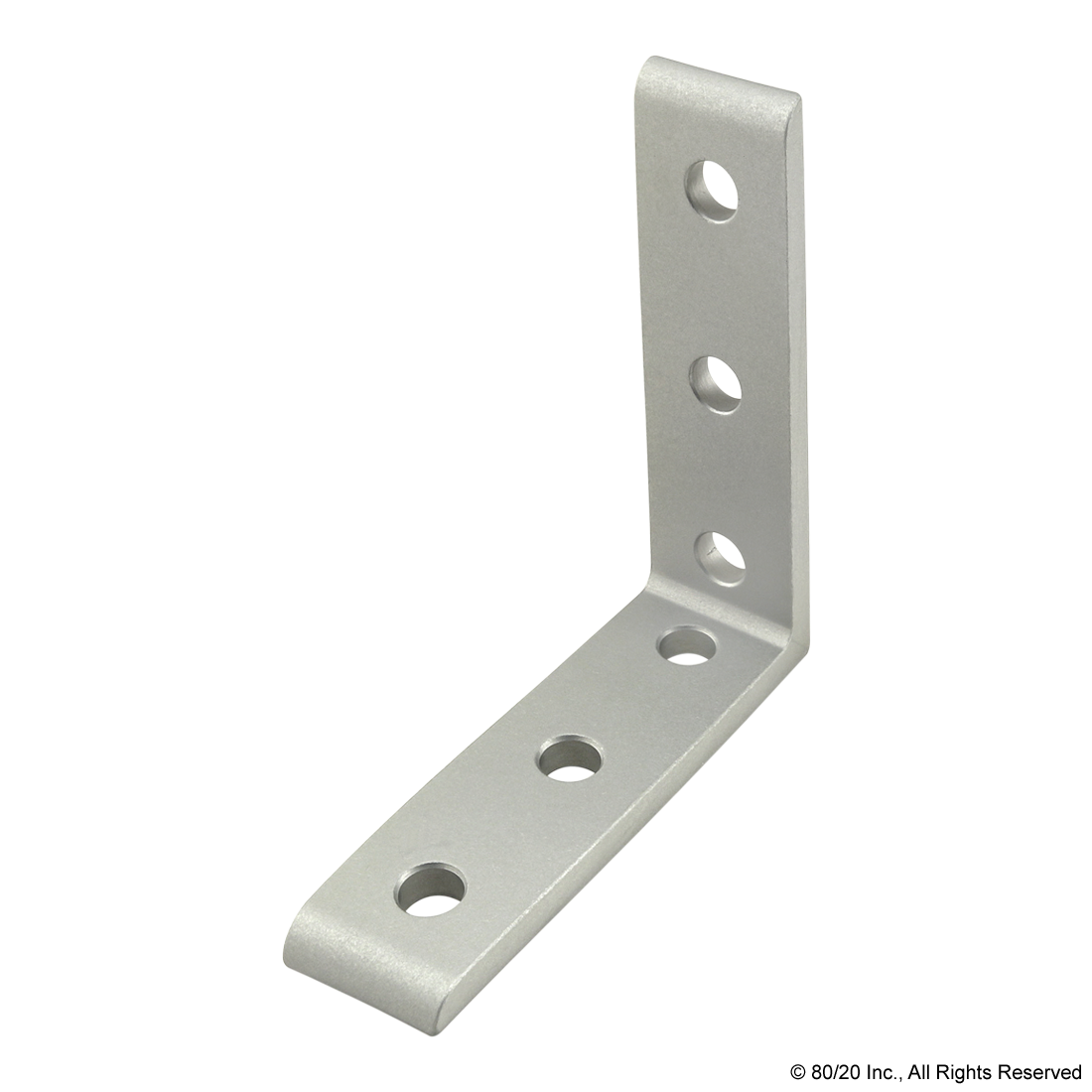

80/20 4013 10 S 6 HOLE INSIDE CORNER BRACKET 3X3X1" WIDE""
Tall Corner Brackets
512343
MFG #: 4013
80/20
7.78000
/ ea
- Catalog Number: 4013
- Grade: 6105-T5
- Line Drawing Dimensions: A=3.0 B=3.000" C=.188" D=.500" E=0.438 F=1.000" G=.875" H=.281"
- Stock Status: NONSTOCK
- Brand: 80/20
- Manufacturer: 80/20 Inc.
- Color: Clear
- Finish: Anodize
- Material: Aluminum
- Series: 10 Series
The 6 hole - tall inside corner bracket is an external fastening method that creates a 90 degree connection. Each side of the bracket has three holes stacked one on top of the other. This fastener requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 6 hole - tall inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
