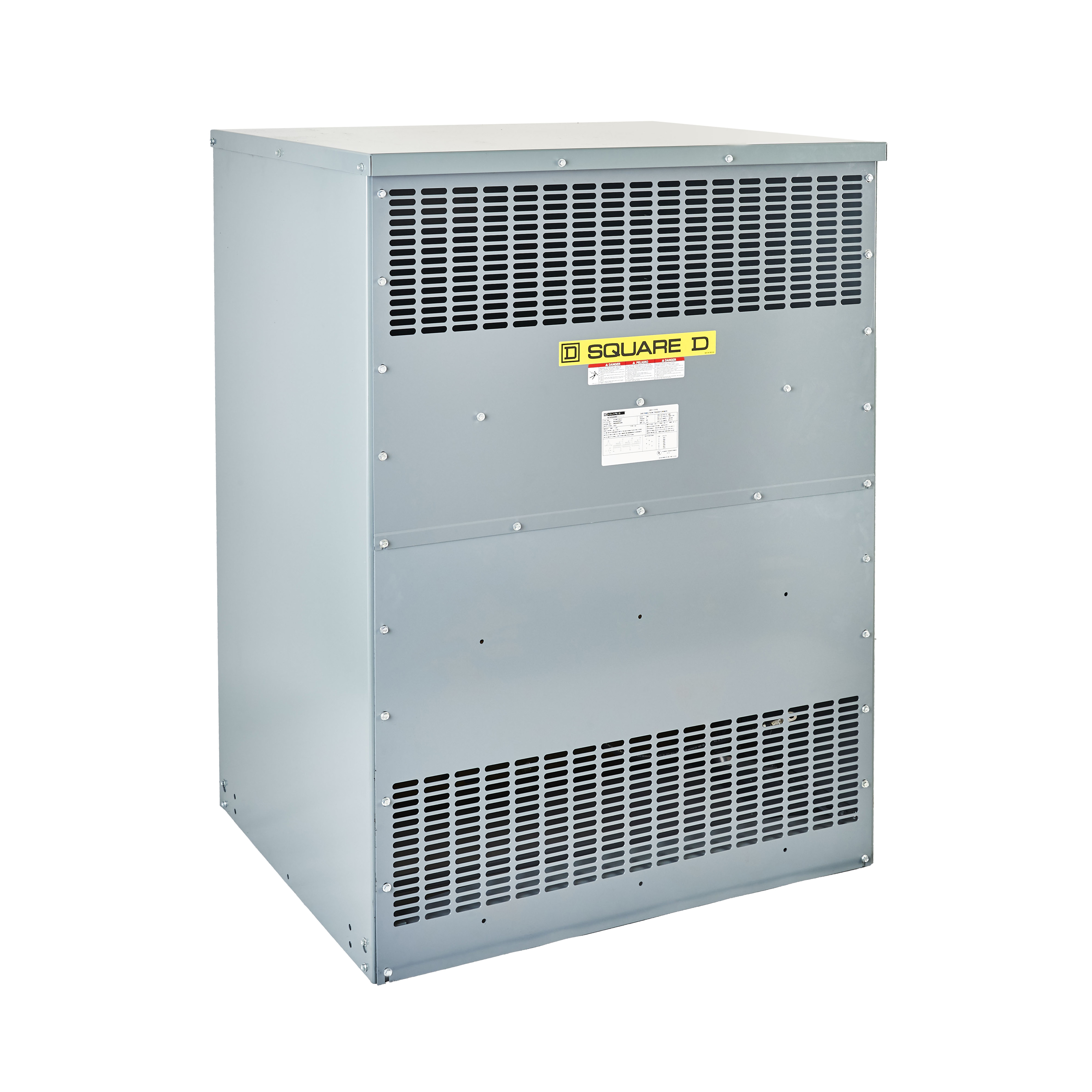

Square D™ EX300T212H Energy Efficient Transformer, 208 V Delta Primary, 480Y/277 V Secondary, 300 kVA Power Rating, 60 Hz, 3 ph
Custom_Product_Images_Illustration
Square D™ EX300T212H Energy Efficient Transformer, 208 V Delta Primary, 480Y/277 V Secondary, 300 kVA Power Rating, 60 Hz, 3 ph
SKUPDW~12471022
MFGR #EX300T212H
Call For Price
List: Square D™ Energy Efficient Transformer, 208 V Delta Primary, 480Y/277 V Secondary, 300 kVA Power, 60 Hz Frequency, 3 ph, 6.9 kA Maximum, (1) 5% FCAN/(2) 5% FCBN Taps, 6-Hole 11.1 mm NEMA Pad Secondary, 8-Hole 11.1 mm NEMA Pad Secondary, 11.1 mm 2 x 4-Hole NEMA Pad Primary Connection, Floor Mounting, Class 220 Insulation, NEMA 1/2/3R/ST-20 Enclosure, 150 deg C Rise, 99.14 % Efficiency, Aluminum Housing Material, 832 mm L x 1018 mm W x 1461 mm H Dimensions
Square D™ Energy Efficient Transformer, 208 V Delta Primary, 480Y/277 V Secondary, 300 kVA Power, 60 Hz Frequency, 3 ph, 6.9 kA Maximum, (1) 5% FCAN/(2) 5% FCBN Taps, 6-Hole 11.1 mm NEMA Pad Secondary, 8-Hole 11.1 mm NEMA Pad Secondary, 11.1 mm 2 x 4-Hole NEMA Pad Primary Connection, Floor Mounting, Class 220 Insulation, NEMA 1/2/3R/ST-20 Enclosure, 150 deg C Rise, 99.14 % Efficiency, Aluminum Housing Material, 832 mm L x 1018 mm W x 1461 mm H Dimensions
Alternate Catalog Number EX300T212H Application Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications ARRA Compliant N Buy American Compliant N Catalog Number EX300T212H Cooling Natural Convection Country of Origin US Currency USD Enclosure UL TYPE 1-UL TYPE 2, WITH 7400DS25J-UL TYPE 3R, WITH 7400WS25J EU RoHS Indicator Y Gross Volume Per Pack 86043.84 Gross Volume per Pack Metric 1410000.41 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 9.2170 lb Gross Weight per Pack Metric 921.70 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 146.4000 in Height [Metric] 146.4000 cm Insulation Class 150 ?°C;220 ?°C insulated Item Group 16501 KVA Rating 300 Length 108.3000 in Length [Metric] 108.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=439593735&lang=en-us Mounting FLOOR-FLOOR, WITH 7400FMB Returnable N Standard UL 1561-CSA C22.2 NO 47-NEMA ST-20 Type DOE 2016 energy efficient transformer UNSPSC 39121001 UPC 11 78590175256 UPC 12 785901752561 Width 88.9000 in Width [Metric] 88.9000 cm Winding ALUMINIUM Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Primary Voltage 208 V delta Secondary Voltage 480Y/277 V Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications We utilized the same conductor range for the source and Load equipment as the transformer, making the installation of the complete Square D™ package easier and faster Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time Separated primary and secondary terminals, sized to handle wire range of Square D™ equipment Distribution system connect on the incoming and outgoing Bending radius for side and bottom access Quite quality minimum of 3 dB below ST-20 standard, with most units being 6 to 10 dB below (see catalog and drawings for actual levels) New floor mounting kit leveraging latest technology for mounting equipment to concrete floor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EX300T212H |
| Application | Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EX300T212H |
| Cooling | Natural Convection |
| Country of Origin | US |
| Currency | USD |
| Enclosure | UL TYPE 1-UL TYPE 2, WITH 7400DS25J-UL TYPE 3R, WITH 7400WS25J |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 86043.84 |
| Gross Volume per Pack Metric | 1410000.41 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 9.2170 lb |
| Gross Weight per Pack Metric | 921.70 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 146.4000 in |
| Height [Metric] | 146.4000 cm |
| Insulation Class | 150 ?°C;220 ?°C insulated |
| Item Group | 16501 |
| KVA Rating | 300 |
| Length | 108.3000 in |
| Length [Metric] | 108.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=439593735&lang=en-us |
| Mounting | FLOOR-FLOOR, WITH 7400FMB |
| Returnable | N |
| Standard | UL 1561-CSA C22.2 NO 47-NEMA ST-20 |
| Type | DOE 2016 energy efficient transformer |
| UNSPSC | 39121001 |
| UPC 11 | 78590175256 |
| UPC 12 | 785901752561 |
| Width | 88.9000 in |
| Width [Metric] | 88.9000 cm |
| Winding | ALUMINIUM |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Primary Voltage | 208 V delta |
| Secondary Voltage | 480Y/277 V |
| Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications |
| We utilized the same conductor range for the source and Load equipment as the transformer, making the installation of the complete Square D™ package easier and faster |
| Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room |
| A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage |
| Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time |
| Separated primary and secondary terminals, sized to handle wire range of Square D™ equipment |
| Distribution system connect on the incoming and outgoing |
| Bending radius for side and bottom access |
| Quite quality minimum of 3 dB below ST-20 standard, with most units being 6 to 10 dB below (see catalog and drawings for actual levels) |
| New floor mounting kit leveraging latest technology for mounting equipment to concrete floor |
