SIRIUS 3RH1122-1AK60 Contactor Control Relay, 2NO-2NC Contact Form, 110/120 VAC Coil

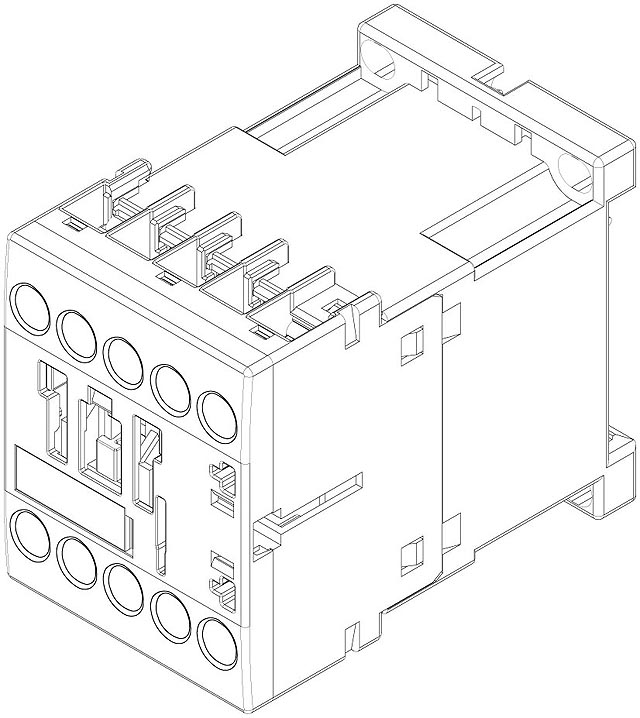

Custom_Product_Images_Illustration
SIRIUS 3RH1122-1AK60 Contactor Control Relay, 2NO-2NC Contact Form, 110/120 VAC Coil
SKU15506
MFGR #3RH1122-1AK60
Your Cost: $103.38/ea
List: SIEMENS 3RH1122-1AK60 2NO-2NC 120V RLAY
SIEMENS 3RH1122-1AK60 2NO-2NC 120V RLAY
Catalog Number 3RH1122-1AK60 Contact Rating 6/1 A at 230/690 VAC, 10/1 A at 24/220 VDC Country of Origin DE Dimensions 57.5 mm H x 45 mm W x 72 mm D Enclosure Type IP20 Frequency Rating 50/60 Hz Gross Weight Per Pack 0.5000 lb Mounting Type Snap-On Returnable N Standards CCC CertifiedCE CertifiedCSA CertifiedEAC RatedEN 60947 RatedIEC 60947RoHS CompliantUL Listed Temperature Rating -25 to 60 °C Terminal Type Threaded Type CONTACTOR UNSPSC 39121529 UPC 11 75455441631 UPC 12 75455441631 Stock Status NONSTOCK Brand SIRIUS (Siemens) Manufacturer Siemens Coil Voltage 110/120 VAC Contact Form 2NO-2NC The 3RH1 contactor relays are suitable for use in any climate The 3RH1 contactor relays have screw or cage clamp terminals Size S00 6 A/1 A at 230/690 VAC AC-15, 10 A/1 A at 24/220 VDC DC-12 They are finger safe according to EN 50274 Four contacts are available in the basic unit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Catalog Number | 3RH1122-1AK60 |
| Contact Rating | 6/1 A at 230/690 VAC, 10/1 A at 24/220 VDC |
| Country of Origin | DE |
| Dimensions | 57.5 mm H x 45 mm W x 72 mm D |
| Enclosure Type | IP20 |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.5000 lb |
| Mounting Type | Snap-On |
| Returnable | N |
| Standards | CCC CertifiedCE CertifiedCSA CertifiedEAC RatedEN 60947 RatedIEC 60947RoHS CompliantUL Listed |
| Temperature Rating | -25 to 60 °C |
| Terminal Type | Threaded |
| Type | CONTACTOR |
| UNSPSC | 39121529 |
| UPC 11 | 75455441631 |
| UPC 12 | 75455441631 |
| Stock Status | NONSTOCK |
| Brand | SIRIUS (Siemens) |
| Manufacturer | Siemens |
| Coil Voltage | 110/120 VAC |
| Contact Form | 2NO-2NC |
| The 3RH1 contactor relays are suitable for use in any climate |
| The 3RH1 contactor relays have screw or cage clamp terminals |
| Size S00 |
| 6 A/1 A at 230/690 VAC AC-15, 10 A/1 A at 24/220 VDC DC-12 |
| They are finger safe according to EN 50274 |
| Four contacts are available in the basic unit |
