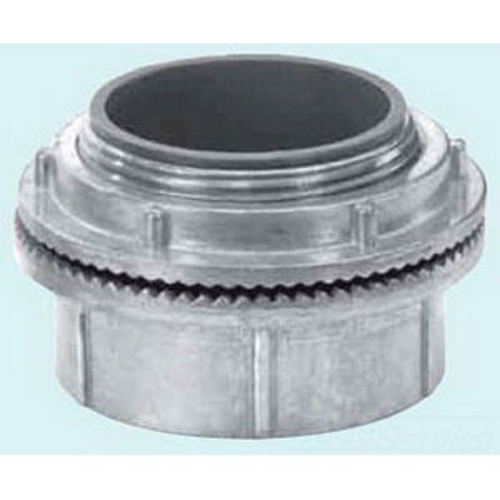

Appleton® HUB75A Conduit Hub, 3/4 in, For use with IMC/Rigid Conduit, Die Cast Aluminum, Aluminum
Custom_Product_Images_Illustration
Appleton® HUB75A Conduit Hub, 3/4 in, For use with IMC/Rigid Conduit, Die Cast Aluminum, Aluminum
SKU561485
MFGR #HUB75A
Your Cost: $8.21/ea
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
Application For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure ARRA Compliant N Buy American Compliant N Cable Entry 1.13 Catalog Number HUB75A Construction Rugged Die-Cast Country of Origin CN Currency USD Dimensions 1.67 in OD x 1.49 in L Enclosure NEMA 2, 3, 3R, 4, 4X, 5, 12, 13 EU RoHS Indicator C Gross Weight Per Pack 0.1300 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Height 0.20 in Height [Metric] 5.0800 mm Insulation Class 150 Length 6.20 in Length [Metric] 15.7480 cm Series HUB Standard UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 Type Insulated Hub UNSPSC 39121311 UPC 11 78138119147 UPC 12 781381191470 Width 5.70 in Width [Metric] 14.4780 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Finish Aluminum Material Rugged Die Cast Aluminum Size 3/4 in Suitable For Use With IMC/Rigid Conduit For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure Rugged metallic construction ensures mechanical protection; May be used in wet or dry locations, indoors or outdoors; Insulated throat, rated up to 150 DEG C, prevents wire abrasion; Integral O-ring provides watertight seal; Unique profile permits easy wrenching; Smooth, accurately tapped threads facilitate installation; Watertight and corrosion resistant; Hole diameter: 1.08 - 1.14 IN; Panel thickness: 0.03 - 1/4 IN; Aluminum bodies and nuts, BUNA-N o-ring Buna-N o-ring, polycarbonate insulator, mild steel ground screw Insulated throat, rated up to 105 deg C (221 deg F), prevents wire abrasion Integral o-ring provides watertight seal Grounding version provides positive ground for external conductor Unique profile permits easy wrenching Smooth, accurately tapped threads facilitate installation Watertight and corrosion resistant NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13 May be used in wet or dry locations, indoors or outdoors 1.08 - 1.14 in hole diameter 0.03 - 0.25 in panel thickness 1.13 in knockout hole size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry | 1.13 |
| Catalog Number | HUB75A |
| Construction | Rugged Die-Cast |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1.67 in OD x 1.49 in L |
| Enclosure | NEMA 2, 3, 3R, 4, 4X, 5, 12, 13 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1300 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Height | 0.20 in |
| Height [Metric] | 5.0800 mm |
| Insulation Class | 150 |
| Length | 6.20 in |
| Length [Metric] | 15.7480 cm |
| Series | HUB |
| Standard | UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 |
| Type | Insulated Hub |
| UNSPSC | 39121311 |
| UPC 11 | 78138119147 |
| UPC 12 | 781381191470 |
| Width | 5.70 in |
| Width [Metric] | 14.4780 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Aluminum |
| Material | Rugged Die Cast Aluminum |
| Size | 3/4 in |
| Suitable For Use With | IMC/Rigid Conduit |
| For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure |
| Rugged metallic construction ensures mechanical protection; May be used in wet or dry locations, indoors or outdoors; Insulated throat, rated up to 150 DEG C, prevents wire abrasion; Integral O-ring provides watertight seal; Unique profile permits easy wrenching; Smooth, accurately tapped threads facilitate installation; Watertight and corrosion resistant; Hole diameter: 1.08 - 1.14 IN; Panel thickness: 0.03 - 1/4 IN; Aluminum bodies and nuts, BUNA-N o-ring |
| Buna-N o-ring, polycarbonate insulator, mild steel ground screw |
| Insulated throat, rated up to 105 deg C (221 deg F), prevents wire abrasion |
| Integral o-ring provides watertight seal |
| Grounding version provides positive ground for external conductor |
| Unique profile permits easy wrenching |
| Smooth, accurately tapped threads facilitate installation |
| Watertight and corrosion resistant |
| NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13 |
| May be used in wet or dry locations, indoors or outdoors |
| 1.08 - 1.14 in hole diameter |
| 0.03 - 0.25 in panel thickness |
| 1.13 in knockout hole size |
