Leviton®

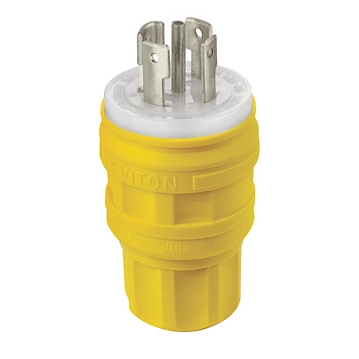

Wetguard® 28W82 Locking Plug, 277/480 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Custom_Product_Images_Illustration
Leviton®
Wetguard® 28W82 Locking Plug, 277/480 VAC, 30 A, 4 Poles, 5 Wires, Yellow
SKU340231
MFGR #28W82
Your Cost: $133.17/ea
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number 28W82 Connection Screw Terminal Cord Type SO;ST;STO;SOO Country of Origin MX Currency USD Environmental Conditions Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) EU RoHS Indicator C Gross Weight Per Pack 0.6100 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Height 12.2500 in Height [Metric] 5.8674 cm Length 15.7500 in Material TPV Mounting Cable NEMA Rating L22-30P Number Of Poles 4 Phase 3 Size 2.28 Diameter X 3.61 L in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) Standards ANSI (C-73), CSA (C22.2 No.42) Certified, NEMA (WD-1, WD-6), NOM (057) Certified, RoHS Complaint, UL (498) Listed Sub Brand Wetguard Type Watertight Plug;Locking UNSPSC 39121402 UPC 11 07847796907 UPC 12 078477969076 Wire Size 12-8 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 A Color Yellow Number of Wires 5 Voltage Rating 277/480 V Industrial Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws and wiring clamps, and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents Plug husk is molded to a bondable nylon body, providing a device that withstands physical abuse Interlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectors Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal Non-magnetic stainless steel fast-threading assembly screws wont interfere with sensitive equipment Flammability rated V-2 per UL 94 (wiring module) Cable mounting SO, ST, STO and SOO cord type 3 phase Grounding Watertight 0.625 - 1.125 in Cord
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 28W82 |
| Connection | Screw Terminal |
| Cord Type | SO;ST;STO;SOO |
| Country of Origin | MX |
| Currency | USD |
| Environmental Conditions | Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6100 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Height | 12.2500 in |
| Height [Metric] | 5.8674 cm |
| Length | 15.7500 in |
| Material | TPV |
| Mounting | Cable |
| NEMA Rating | L22-30P |
| Number Of Poles | 4 |
| Phase | 3 |
| Size | 2.28 Diameter X 3.61 L in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) |
| Standards | ANSI (C-73), CSA (C22.2 No.42) Certified, NEMA (WD-1, WD-6), NOM (057) Certified, RoHS Complaint, UL (498) Listed |
| Sub Brand | Wetguard |
| Type | Watertight Plug;Locking |
| UNSPSC | 39121402 |
| UPC 11 | 07847796907 |
| UPC 12 | 078477969076 |
| Wire Size | 12-8 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 5 |
| Voltage Rating | 277/480 V |
| Industrial |
| Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws and wiring clamps, and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments |
| EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents |
| Plug husk is molded to a bondable nylon body, providing a device that withstands physical abuse |
| Interlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectors |
| Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal |
| Non-magnetic stainless steel fast-threading assembly screws wont interfere with sensitive equipment |
| Flammability rated V-2 per UL 94 (wiring module) |
| Cable mounting |
| SO, ST, STO and SOO cord type |
| 3 phase |
| Grounding |
| Watertight |
| 0.625 - 1.125 in Cord |
