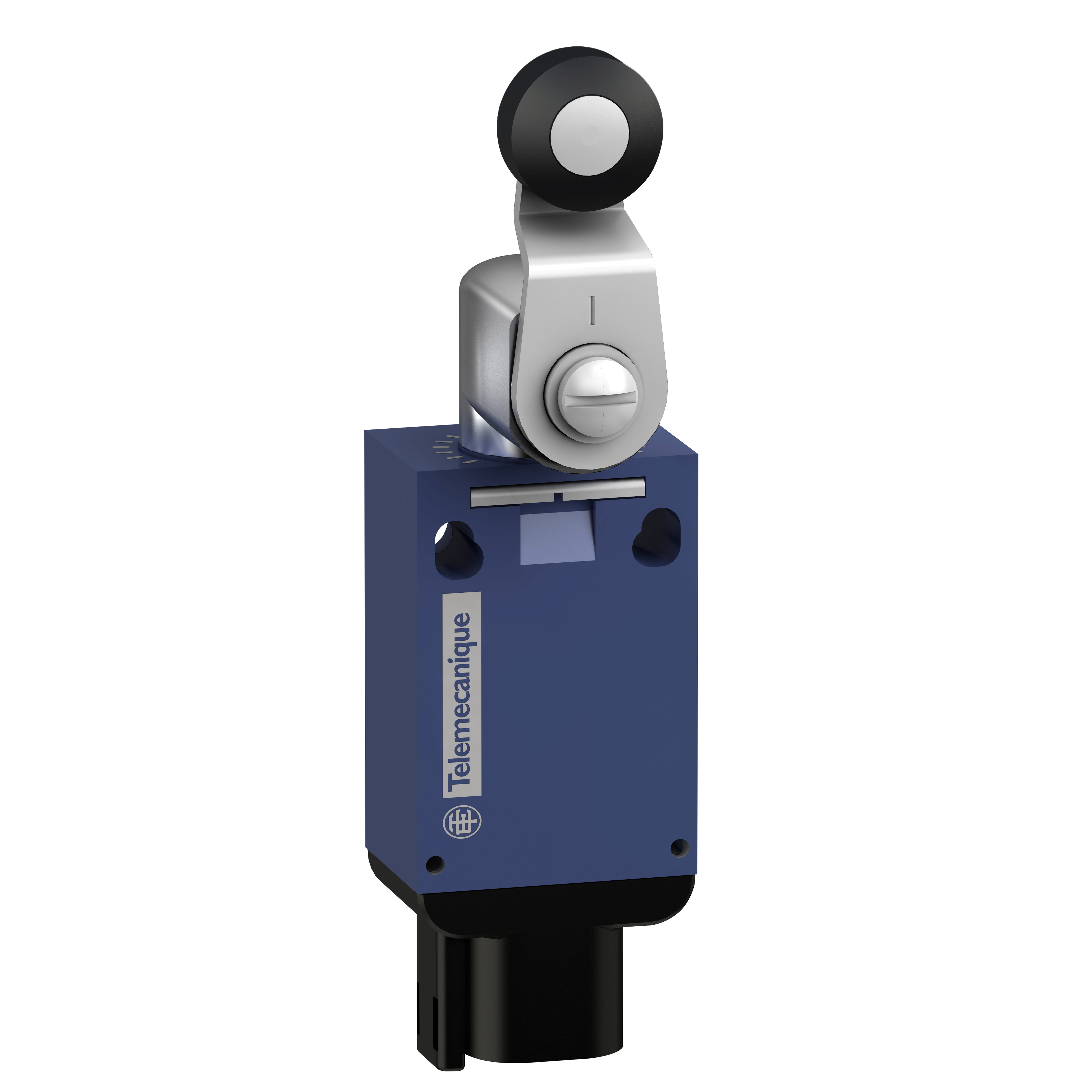

Telemecanique XCMV2515D44 XCMV, 1NC + 1NO Contact, 2 Poles
Rotary Actuated Limit Switches
PDW~13833111
MFG #: XCMV2515D44
Square D™
0.00000
/ ea
Telemecanique XCMV2515D44, Series: XCMV, 1NC + 1NO Contact Configuration, 2 Pole, 4-Pin Male Connector Connection, IP66/IP69 Enclosure, 10000000 Cycles Operating Cycles, -13 to 158 deg F Operating, Metal, Environmental Conditions: -40 to 158 deg F Storage Temperature, -13 to 158 deg F Operating Temperature
- Brochure URL - 11003_4X75CP6MK3E2ZASO.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_D5N2QEJXBU6STVCF.pdf(Service Manual URL)
- Spec Sheet URL - 11003_ZWI7AHP3VQUJ0OR4.pdf(Spec Sheet URL)
- Features
| Plug-in body body type |
| Zamak body material |
| Zamak head material |
| By the body fixing mode |
| Lateral approach, 2 directions type of approach |
| 24/31 mm tracks |
| By 30 deg cam switch actuation |
| Zb contacts insulation form |
| With positive opening |
| 0.1 N minimum force for tripping |
| 0.1 N minimum force for tripping |
| 4.92 ft/s 1.5 m/s maximum actuation speed |
| 36 V 3 IEC 60947-5-1 ui rated insulation voltage |
| 25 mOhm IEC 60255-7 category 3 maximum resistance across terminals |
| 0.8 kV IEC 606640.8 kV IEC 60947-1 uimp rated impulse withstand voltage |
| 6 A cartridge fuse gG short-circuit protection |
| 10000000 cycles mechanical durability |
| Class III IEC 61140Class III NF C 20-030 electrical shock protection class |
| TC protective treatment |
