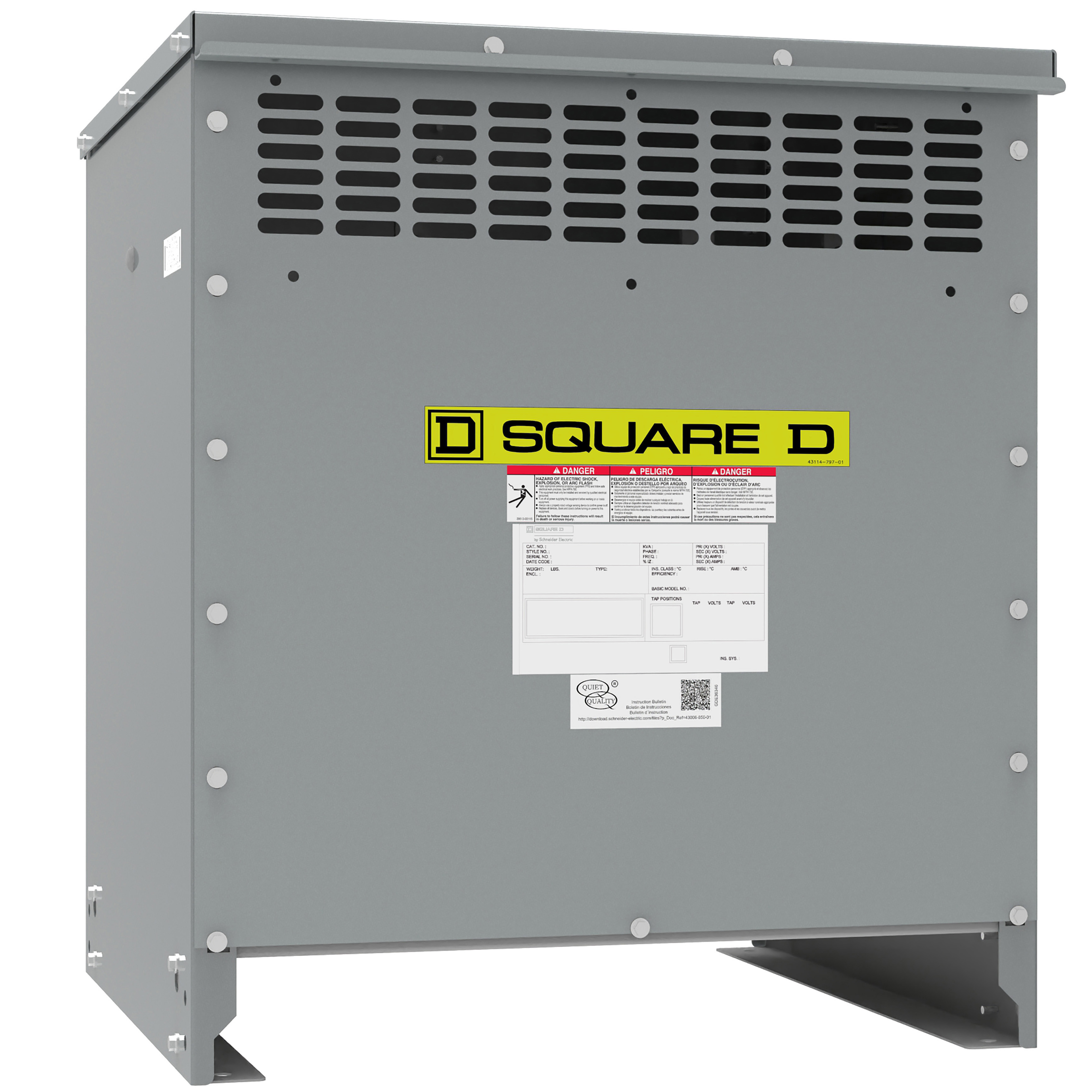

TRANSFORMER DRY TYPE 45KVA 480D208Y AL-1
SKU1084603
MFGR #EXN45T3H
$/ea
TRANSFORMER DRY TYPE 45KVA 480D208Y AL-1
TRANSFORMER DRY TYPE 45KVA 480D208Y AL-1
Alternate Catalog Number EXN45T3H Application low voltage electrical distribution ARRA Compliant N Buy American Compliant N Catalog Number EXN45T3H Cooling Natural Convection Country of Origin MX Currency USD Dimensions 35.31 in H x 25.51 in W x 20.98 in D Enclosure UL type 2;UL type 3R, with 7400WS18M19M20M;19M EU RoHS Indicator Y Gross Volume Per Pack 35295.87 Gross Volume per Pack Metric 578393.42 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.7463 lb Gross Weight per Pack Metric 177.35 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 90.1700 in Height [Metric] 88.9000 cm Insulation Class 150 В°C;220 В°C insulated KVA Rating 45 Length 81.2800 in Length [Metric] 78.7400 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=508255763&lang=en-us Maximum Amperage Rating 2.5 kA Mounting FLOOR-FLOOR, WITH 7400FMB-CEILING, WITH 7400CMB18M19M20M-WALL, WITH 7400WMB18M19M20M Mounting Type Ceiling/Floor Returnable Y Standard CSA C22.2 No 47;NEMA ST-20;UL 1561 Standards ARRA CompliantBuy American Act CompliantCSA C22.2 No. 47UL 1561ECCN: EAR99NEMA ST-20 Substitute Product Catalog Number CMB363 Temperature Rating 150 °C Type Energy Efficient Dry-Type UNSPSC 39121001 UPC 11 78590127258 UPC 12 785901272588 Width 78.7400 in Width [Metric] 81.2800 cm Winding aluminium Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 3 Power Rating 45 kVA Primary Voltage 480 VAC Delta V Secondary Voltage 208Y/120 VAC LOW VOLTAGE ELECTRICAL DISTRIBUTION (2) 2.5% FCAN, (4) 2.5% FCBN tap-offs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EXN45T3H |
| Application | low voltage electrical distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EXN45T3H |
| Cooling | Natural Convection |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 35.31 in H x 25.51 in W x 20.98 in D |
| Enclosure | UL type 2;UL type 3R, with 7400WS18M19M20M;19M |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 35295.87 |
| Gross Volume per Pack Metric | 578393.42 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.7463 lb |
| Gross Weight per Pack Metric | 177.35 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 90.1700 in |
| Height [Metric] | 88.9000 cm |
| Insulation Class | 150 В°C;220 В°C insulated |
| KVA Rating | 45 |
| Length | 81.2800 in |
| Length [Metric] | 78.7400 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=508255763&lang=en-us |
| Maximum Amperage Rating | 2.5 kA |
| Mounting | FLOOR-FLOOR, WITH 7400FMB-CEILING, WITH 7400CMB18M19M20M-WALL, WITH 7400WMB18M19M20M |
| Mounting Type | Ceiling/Floor |
| Returnable | Y |
| Standard | CSA C22.2 No 47;NEMA ST-20;UL 1561 |
| Standards | ARRA CompliantBuy American Act CompliantCSA C22.2 No. 47UL 1561ECCN: EAR99NEMA ST-20 |
| Substitute Product Catalog Number | CMB363 |
| Temperature Rating | 150 °C |
| Type | Energy Efficient Dry-Type |
| UNSPSC | 39121001 |
| UPC 11 | 78590127258 |
| UPC 12 | 785901272588 |
| Width | 78.7400 in |
| Width [Metric] | 81.2800 cm |
| Winding | aluminium |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 45 kVA |
| Primary Voltage | 480 VAC Delta V |
| Secondary Voltage | 208Y/120 VAC |
| LOW VOLTAGE ELECTRICAL DISTRIBUTION |
| (2) 2.5% FCAN, (4) 2.5% FCBN tap-offs |
