Square D™

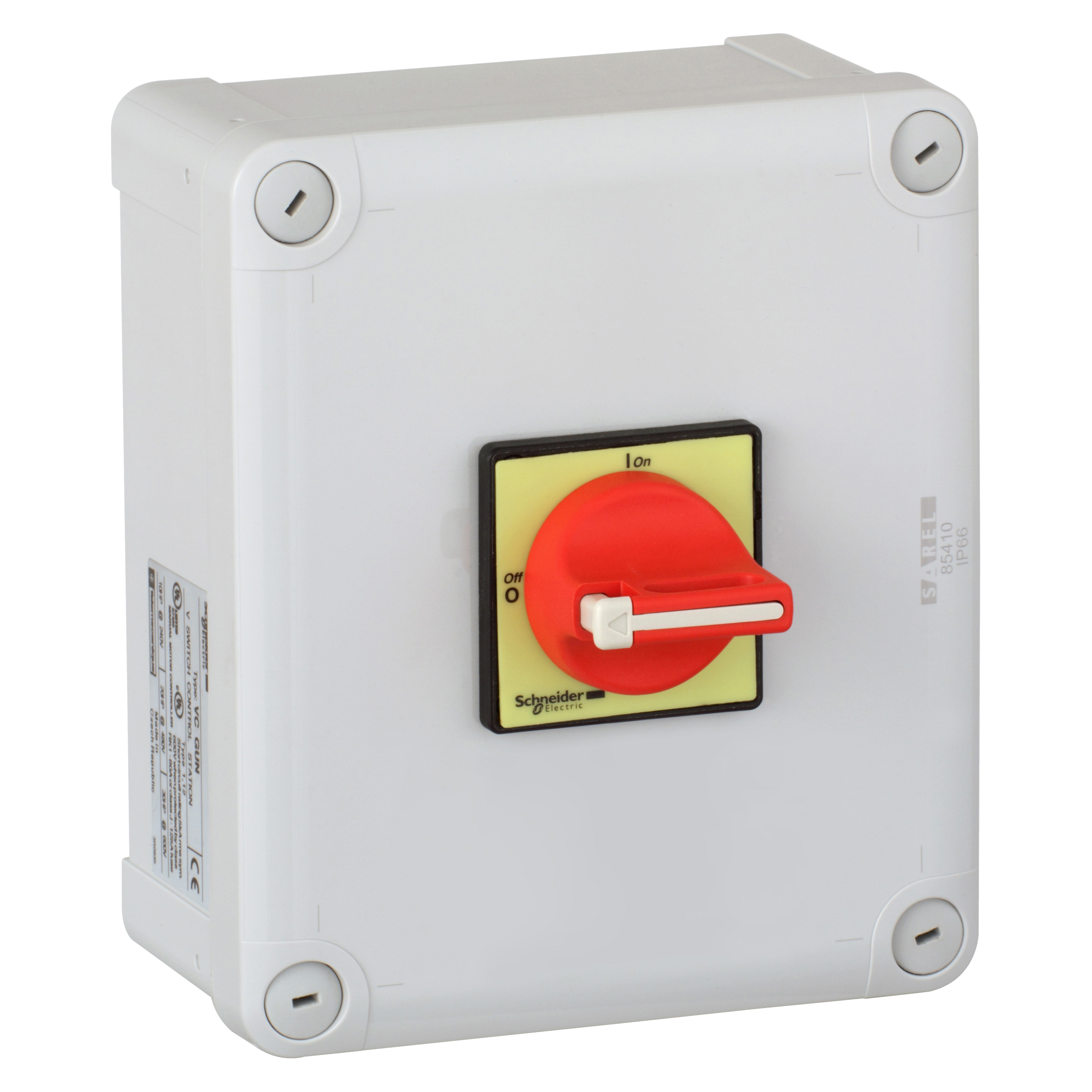

Square D™ VC4GUN ENCLOSED SWITCH 63 A
Custom_Product_Images_Illustration
Square D™
Square D™ VC4GUN ENCLOSED SWITCH 63 A
SKU531670
MFGR #VC4GUN
Your Cost: $353.49/ea
List: Schneider Electric VC4GUN ENCLOSED SWITCH 63 A,30000 cycles AC-21-30000 cycles AC-21-30000 cycles DC-1...5,60 x 60 mm,63 A,690 V AC/DC 50/60 Hz,Enclosed,IP20 conforming to IEC 60529,TeSys,enclosed switch disconnector,enclosed switch disconnector,enclosed switch disconnector
Schneider Electric VC4GUN ENCLOSED SWITCH 63 A,30000 cycles AC-21-30000 cycles AC-21-30000 cycles DC-1...5,60 x 60 mm,63 A,690 V AC/DC 50/60 Hz,Enclosed,IP20 conforming to IEC 60529,TeSys,enclosed switch disconnector,enclosed switch disconnector,enclosed switch disconnector
Actuator Red;Rotary handle Application 15 HP 240 V, UL-30 HP 480 V, UL-40 HP 600 V, UL ARRA Compliant N Buy American Compliant N Catalog Number VC4GUN Country of Origin CZ Currency USD Enclosure NEMA 12 Enclosure Type NEMA 1/12/IP20/IP55 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 2.3400 lb Gross Weight per Pack Metric 1.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509065 Material PVC Number Of Poles 3 Returnable Y Standard 960 A°C IEC 60595-2-1,IP65 IEC 60529,UL 508-CSA C22.2 NO 14-IEC 60947-4-1-IEC 60204 Temperature Rating -4 to 122 °F Terminal Type Screw/Clamp Type Emergency Stop Enclosed High Performance Standard UNSPSC 39122233 UPC 11 78590167633 UPC 12 785901676331 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Actuator Type Padlockable Rotary Handle Alternate Catalog Number VC4GUN Color Red/Yellow Gross Volume Per Pack 375.80 Gross Volume per Pack Metric 6158.24 Gross Volume UOM CI Gross Volume UOM Metric cm3 Item Group 21730 Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61546296&lang=en-us Short Circuit Current Rating 10 kA Sub Brand VC-GUN;TeSys VARIO Warranty Description Contractual Warranty:18 months 15 HP 240 V, UL-30 HP 480 V, UL-40 HP 600 V, UL 1 TO 3 PADLOCKS 4-8 MM,HIGH PERFORMANCE 15 hp at 240 VAC, 30 hp at 480 VAC, 40 hp at 600 VAC power rating 30000 cycles DC-1 to 5, 30000 cycles AC-21 operating cycles
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Red;Rotary handle |
| Application | 15 HP 240 V, UL-30 HP 480 V, UL-40 HP 600 V, UL |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | VC4GUN |
| Country of Origin | CZ |
| Currency | USD |
| Enclosure | NEMA 12 |
| Enclosure Type | NEMA 1/12/IP20/IP55 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 2.3400 lb |
| Gross Weight per Pack Metric | 1.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509065 |
| Material | PVC |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | 960 A°C IEC 60595-2-1,IP65 IEC 60529,UL 508-CSA C22.2 NO 14-IEC 60947-4-1-IEC 60204 |
| Temperature Rating | -4 to 122 °F |
| Terminal Type | Screw/Clamp |
| Type | Emergency Stop Enclosed High Performance Standard |
| UNSPSC | 39122233 |
| UPC 11 | 78590167633 |
| UPC 12 | 785901676331 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Actuator Type | Padlockable Rotary Handle |
| Alternate Catalog Number | VC4GUN |
| Color | Red/Yellow |
| Gross Volume Per Pack | 375.80 |
| Gross Volume per Pack Metric | 6158.24 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Item Group | 21730 |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61546296&lang=en-us |
| Short Circuit Current Rating | 10 kA |
| Sub Brand | VC-GUN;TeSys VARIO |
| Warranty Description | Contractual Warranty:18 months |
| 15 HP 240 V, UL-30 HP 480 V, UL-40 HP 600 V, UL |
| 1 TO 3 PADLOCKS 4-8 MM,HIGH PERFORMANCE |
| 15 hp at 240 VAC, 30 hp at 480 VAC, 40 hp at 600 VAC power rating |
| 30000 cycles DC-1 to 5, 30000 cycles AC-21 operating cycles |
