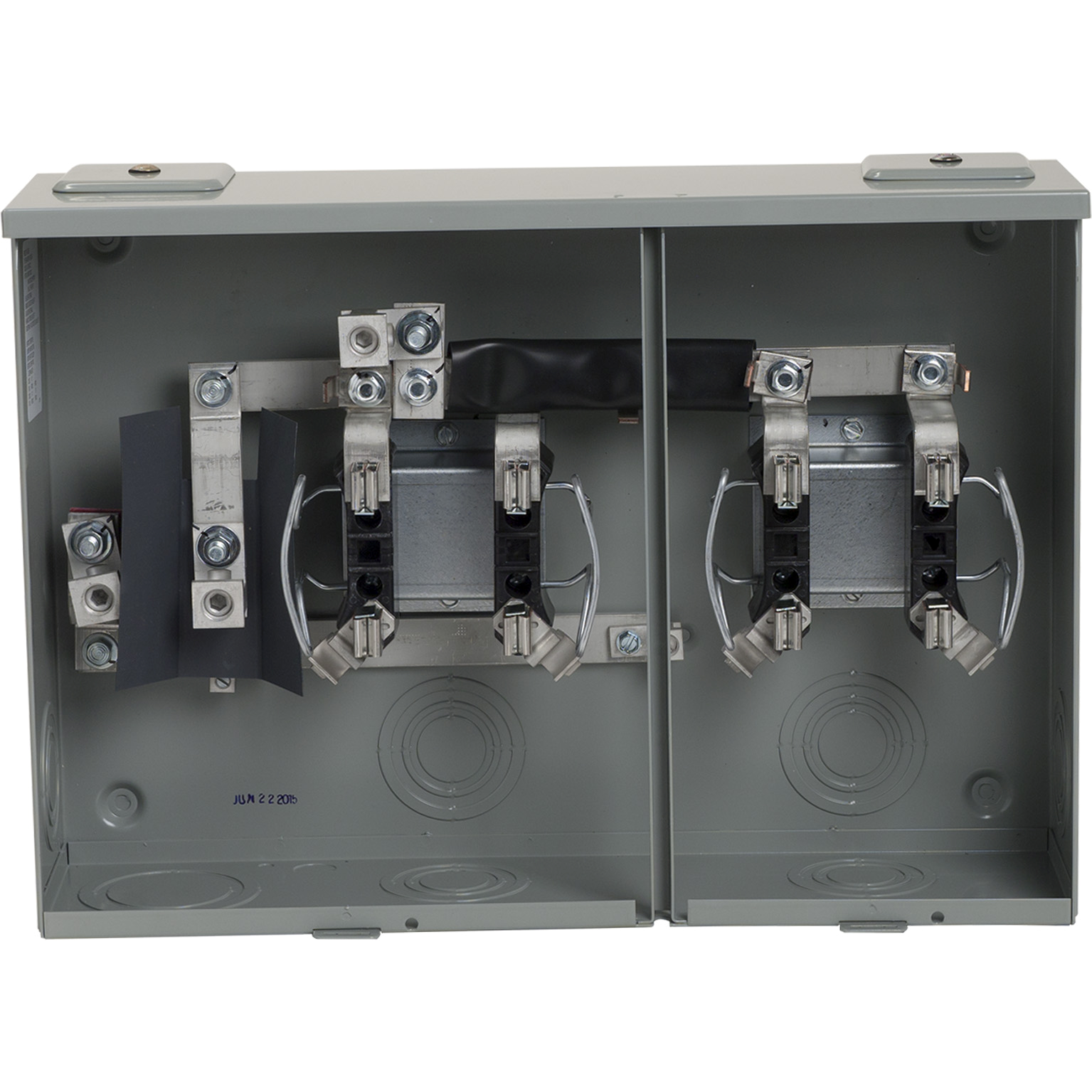

Square D™ UHT2R1421C 2-Position 3-Wire Horizontal Meter Socket With Horn Bypass, 600 VAC, 100 A, 1 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ UHT2R1421C 2-Position 3-Wire Horizontal Meter Socket With Horn Bypass, 600 VAC, 100 A, 1 ph Phase, NEMA 3R Enclosure
SKU1368030
MFGR #UHT2R1421C
Call For Price
List: Square D™ Meter Socket, 2-Position 3-Wire Horizontal, 600 VAC, 100 A, 1 ph Phase, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil, 8 to 2/0 AWG Al/Cu Wire, A ACP Closing Plate, Ringless Cover, 3/8 in Hex Stud Terminal, Surface Mount, NEMA 3R
Square D™ Meter Socket, 2-Position 3-Wire Horizontal, 600 VAC, 100 A, 1 ph Phase, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil, 8 to 2/0 AWG Al/Cu Wire, A ACP Closing Plate, Ringless Cover, 3/8 in Hex Stud Terminal, Surface Mount, NEMA 3R
Alternate Catalog Number UHT2R1421C ARRA Compliant N Buy American Compliant N Bypass Type Horn bypass Cable Entry OH-UG Catalog Number UHT2R1421C Country of Origin US Cover Type Ringless Currency USD Enclosure Steel EU RoHS Indicator Y Feed Type Overhead/Underground Gross Volume Per Pack 2293.20 Gross Volume per Pack Metric 37578.67 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1089 lb Gross Weight per Pack Metric 10.89 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538908160 Height 16.5100 in Height [Metric] 16.5100 cm Hub Opening A ACP closing plate Hub Type A ACP Closing Plate Item Group 00039 Jaw Quantity 4 without jaw release;4 without jaw release Length 53.3400 in Length [Metric] 53.3400 cm Line Side Wire Range AWG 6...250 kcmilline side;AWG 8...AWG 2/0service ground Mounting Surface Mounting Type Surface Number Of Cutouts 2 Number of Jaws 4 Returnable Y Standard UL LISTED-ANSI Terminal Type 3/8 in Hex Stud Type 2-Position 3-Wire Horizontal UNSPSC 39121102 UPC 11 78590121166 UPC 12 785901211662 Warranty Description Contractual Warranty:18 months Width 42.6720 in Width [Metric] 42.6720 cm Wire Size 6 AWG to 250 kcmil, 8 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 Enclosure Type NEMA 3R Phase 1 Voltage Rating 600 HORN BYPASS,RINGLESS Without jaw release
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | UHT2R1421C |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | Horn bypass |
| Cable Entry | OH-UG |
| Catalog Number | UHT2R1421C |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Feed Type | Overhead/Underground |
| Gross Volume Per Pack | 2293.20 |
| Gross Volume per Pack Metric | 37578.67 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1089 lb |
| Gross Weight per Pack Metric | 10.89 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538908160 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Hub Opening | A ACP closing plate |
| Hub Type | A ACP Closing Plate |
| Item Group | 00039 |
| Jaw Quantity | 4 without jaw release;4 without jaw release |
| Length | 53.3400 in |
| Length [Metric] | 53.3400 cm |
| Line Side Wire Range | AWG 6...250 kcmilline side;AWG 8...AWG 2/0service ground |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Cutouts | 2 |
| Number of Jaws | 4 |
| Returnable | Y |
| Standard | UL LISTED-ANSI |
| Terminal Type | 3/8 in Hex Stud |
| Type | 2-Position 3-Wire Horizontal |
| UNSPSC | 39121102 |
| UPC 11 | 78590121166 |
| UPC 12 | 785901211662 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 42.6720 in |
| Width [Metric] | 42.6720 cm |
| Wire Size | 6 AWG to 250 kcmil, 8 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Voltage Rating | 600 |
| HORN BYPASS,RINGLESS |
| Without jaw release |
